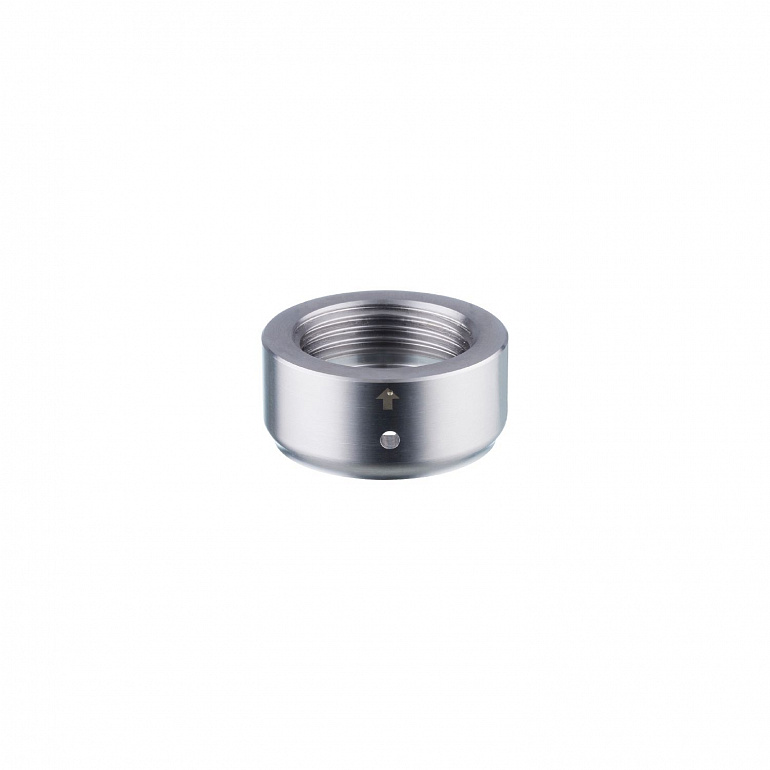

| Design |
with leakage port (3A) |
| Installation |
for pipes |
| Pressure rating |
|
| Note on pressure rating |
| for the connection sensor - adapter | | professional welding according to operating instructions |
|
| Pressure equipment directive |
A possible classification to PED depends on the application and has to be carried out by the user / operator. |
| Safety instructions |
The compatibility between medium and product material has to be checked in all applications. |
| Weight |
158.2 |
| Materials (wetted parts) |
stainless steel (1.4435 / 316L) |
| Sensor connection |
G 1 Internal thread Aseptoflex Vario |
| Process connection |
Welding adapter DN40 (41 x 1,5); Maße gemäß DIN 11866; Reihe A DIN |
| Surface characteristics Ra/Rz of the wetted parts |
Ra < 0.8 µm / Rz = 4 µm |
| Sealing |
Gasket |
| Items supplied |
| O-rings: 1 x (24 x 2 mm), EPDM, E30054 |
|
| Accessories (optional) |
| O-ring 1 x 24 x 2, FKM, E30123 |
|
| Pack quantity |
1 pcs. |
