| Pressure rating |
|
| Note on pressure rating |
| for the connection sensor - adapter |
|
| Pressure equipment directive |
A possible classification to PED depends on the application and has to be carried out by the user / operator. |
| Safety instructions |
The compatibility between medium and product material has to be checked in all applications. |
| Weight |
273.5 |
| Materials (wetted parts) |

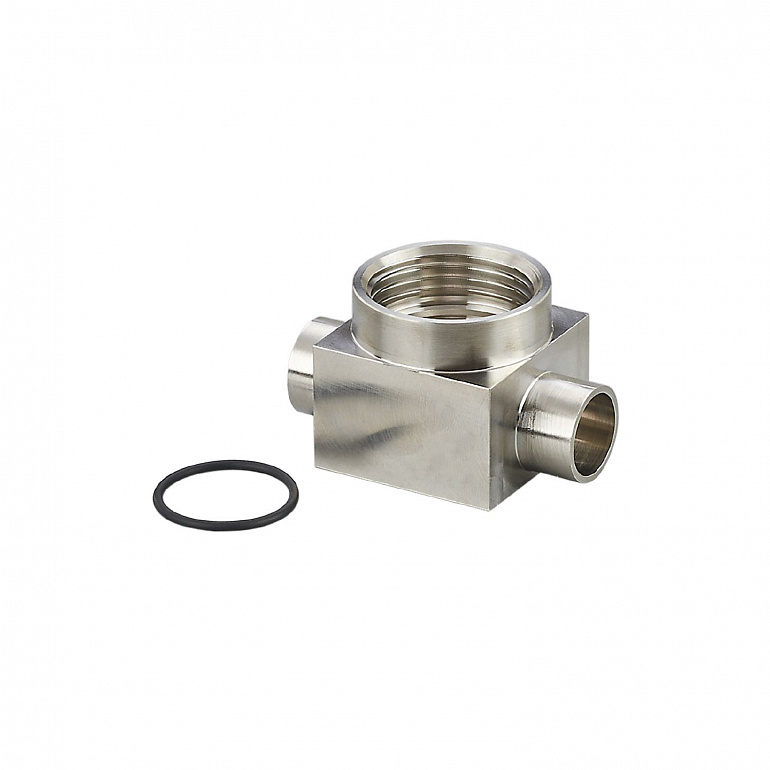

T-piece: stainless steel (1.4404 / 316L) surface characteristics: Ra < 0,4 µm / Rz 4 µm |
| Sensor connection |
G 1 Aseptoflex Vario |
| Process connection |
T-piece DN15 (19 x 1,5); Maße gemäß DIN 11866; Reihe A DIN |
| Sealing |
Gasket |
| Items supplied |
| O-ring: 1 x (24 x 2 mm), EPDM, FDA compliant, E30054 |
|
| Accessories (optional) |
| O-ring: 1 x 24 x 2, FKM, FDA compliant, E30123 |
|
| Pack quantity |
1 pcs. |
