| Application |
|
| Pressure rating |
<table><tr><td>16 bar</td><td>1.6 MPa</td></tr></table> |
| MAWP (for applications according to CRN) |
16 |
| Tests / approvals |
|
| Pressure equipment directive |
A possible classification to PED depends on the application and has to be carried out by the user / operator. |
| Safety instructions |
The compatibility between medium and product material has to be checked in all applications. |
| Mechanical data |
|
| Weight |
101 |
| Materials (wetted parts) |
stainless steel (1.4435 / 316L) surface characteristics: Ra < 0,4 µm / Rz = 4 µm |

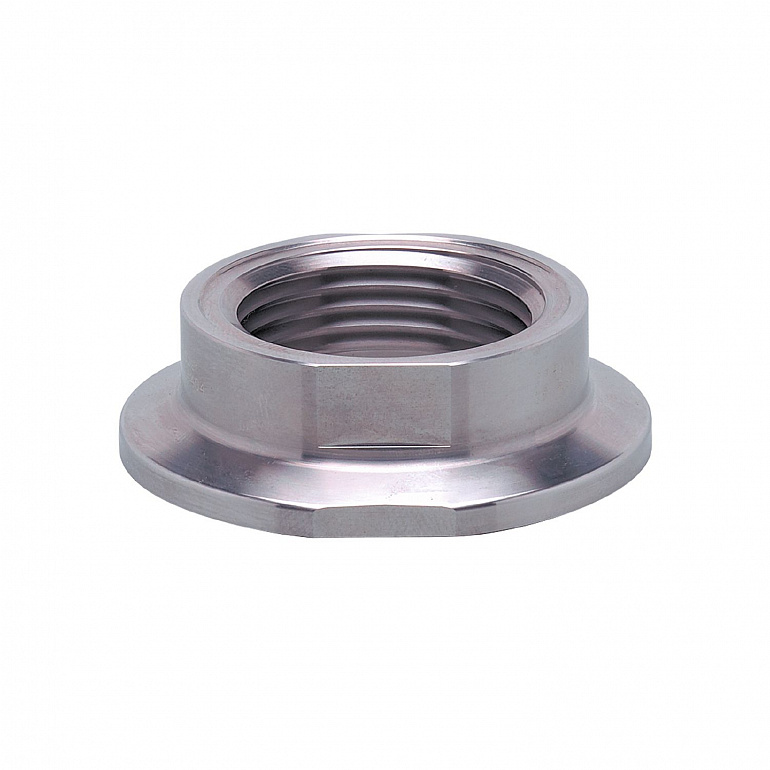

| Sensor connection |
G 1 Internal thread Aseptoflex Vario |
| Process connection |
Clamp DN25...DN40 (1...1,5") Ø 50.5 mm DIN 32676 (ISO 2852) |
| Sealing |
metal to metal |
| Hygienic equipment class to DIN 11866 |
H4 |
| Remarks |
|
| Pack quantity |
1 pcs. |
