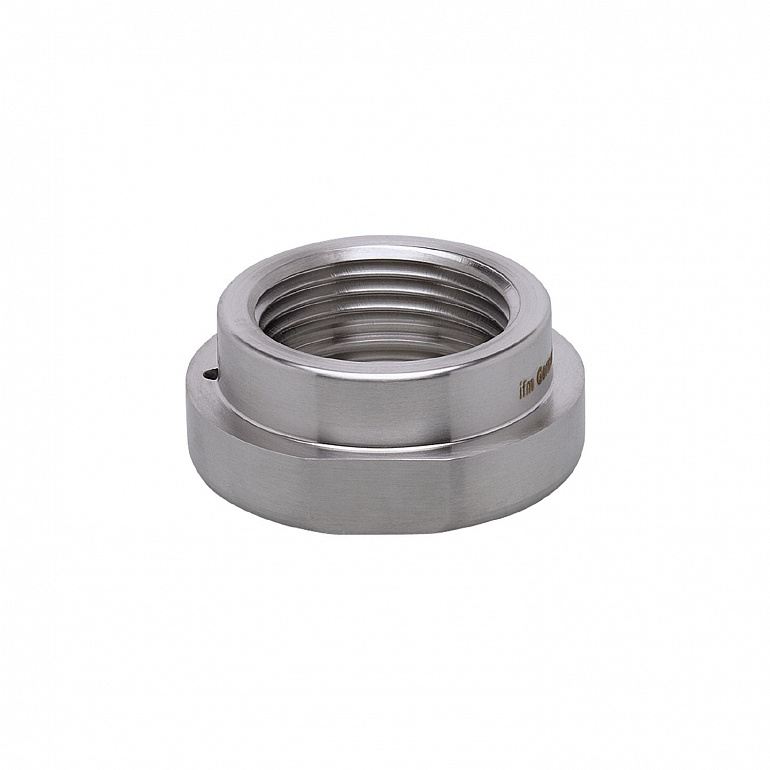

| Design |
for ISO pipes (series B) |
| Pressure rating |
|
| Pressure equipment directive |
A possible classification to PED depends on the application and has to be carried out by the user / operator. |
| Safety instructions |
The compatibility between medium and product material has to be checked in all applications. |
| Weight |
142 |
| Type of mounting |
for ISO pipes (series B) |
| Materials (wetted parts) |
stainless steel (1.4435 / 316L) surface characteristics: Ra < 0,4 µm / Rz = 4 µm |
| Sensor connection |
G 1 Internal thread Aseptoflex Vario |
| Process connection |
Pipe fitting DN33,7 Ø 48.9 mm DIN 11864-1-A-BS |
| Sealing |
Gasket |
| Hygienic equipment class to DIN 11866 |
H4 |
| Items supplied |
| O-ring: 1 x (24 x 2 mm), EPDM, FDA compliant, E30054 |
|
| Accessories (optional) |
| O-ring: 1 x 24 x 2, FKM, FDA compliant, E30123 | | sealing ring: 1, PEEK, FDA compliant, E30124 |
|
| Pack quantity |
1 pcs. |
