| Application |
|
| Pressure rating |
<table><tr><td>25 bar</td><td>2.5 MPa</td></tr></table> |
| Tests / approvals |
|
| Pressure equipment directive |
A possible classification to PED depends on the application and has to be carried out by the user / operator. |
| Safety instructions |
The compatibility between medium and product material has to be checked in all applications. |
| Mechanical data |
|
| Weight |
226 |
| Materials (wetted parts) |
stainless steel (1.4435 / 316L) surface characteristics: Ra < 0,4 µm / Rz = 4 µm |
| Sensor connection |

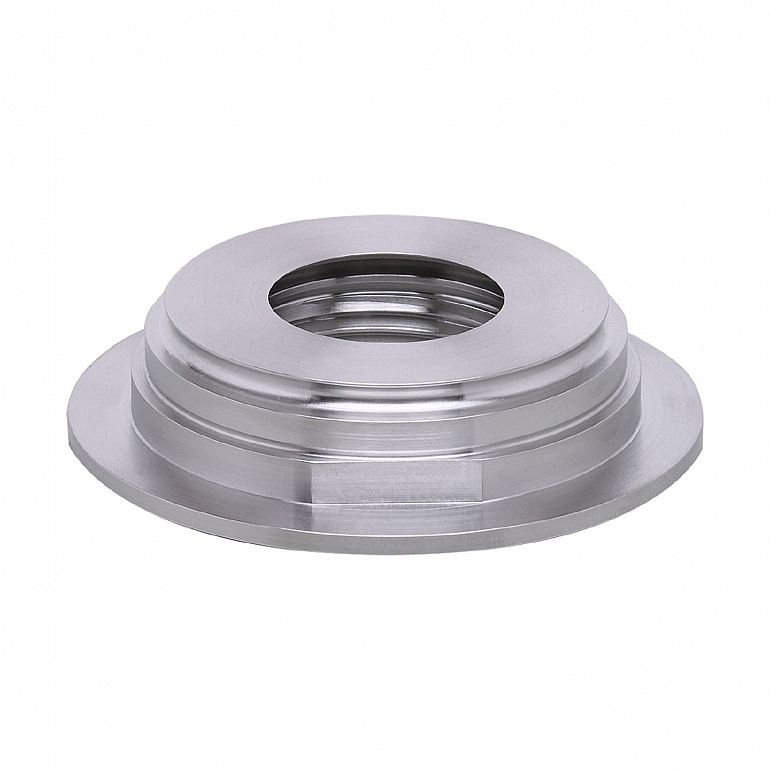

G 1 Internal thread Aseptoflex Vario |
| Process connection |
Varivent Form F, DN25 (1"), Ø 50 mm Ø 66 mm |
| Sealing |
Gasket |
| Hygienic equipment class to DIN 11866 |
H4 |
| Accessories |
|
| Items supplied |
<table><tr><td>O-ring: 1 x (24 x 2 mm), EPDM, FDA compliant, E30054</td></tr></table> |
| Accessories (optional) |
<table><tr><td>O-ring: 1 x 24 x 2, FKM, FDA compliant, E30123</td></tr><tr><td>sealing ring: 1, PEEK, FDA compliant, E30124</td></tr></table> |
| Remarks |
|
| Pack quantity |
1 pcs. |
