| Design | for level sensors LR |
| Sensor connection | threaded connection; G 3/4; Internal thread |
| Material | flange: stainless steel (1.4305 / 303); sealing: NBR |

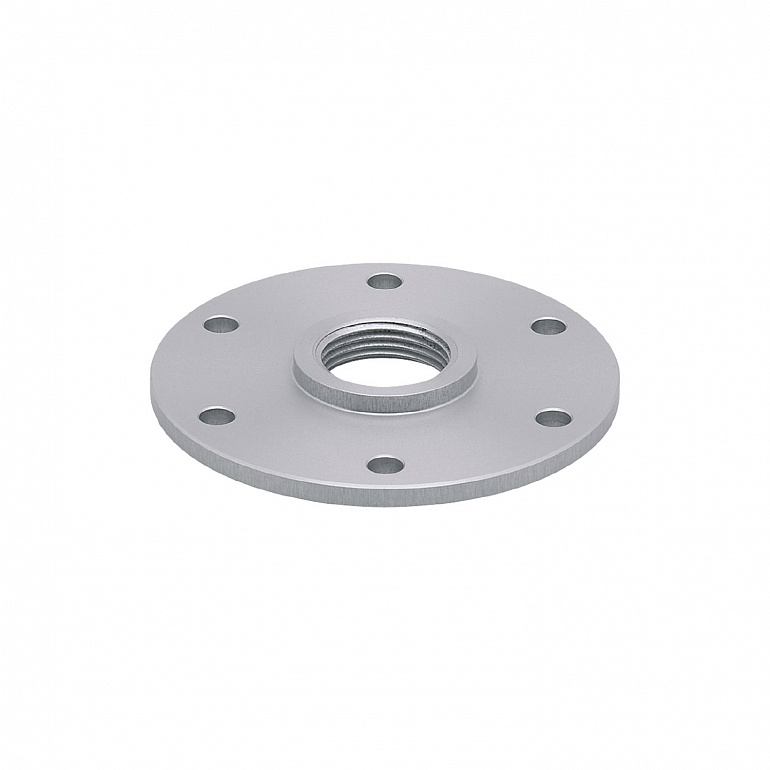

| Product designation | Flange plate |
Все характеристики
| Design | for level sensors LR | ||
| Installation | according to DIN 24557 | ||
| Tank pressure |
|
||
| Ambient temperature | 0...80 | ||
| Weight | 257.3 | ||
| Type of mounting | according to DIN 24557 | ||
| Material | flange: stainless steel (1.4305 / 303); sealing: NBR | ||
| Tightening torque | 6...9 | ||
| Sensor connection | threaded connection G 3/4 Internal thread | ||
| Process connection | flange Ø 90 mm | ||
| Pack quantity | 1 pcs. |
Приемущества
| Optional for the operation of level sensors with guided wave radar |
| Easy, quick and inexpensive mounting in the tank lid |
