Характеристики
| Design | for capacitive level sensors LK, LI, LT, LL |
| Sensor connection | Clamp fitting; Ø 16 mm |
| Material | aluminum anodized; knurled nut: stainless steel; Spacer: brass; clamping ring: FKM; sealing: NBR |

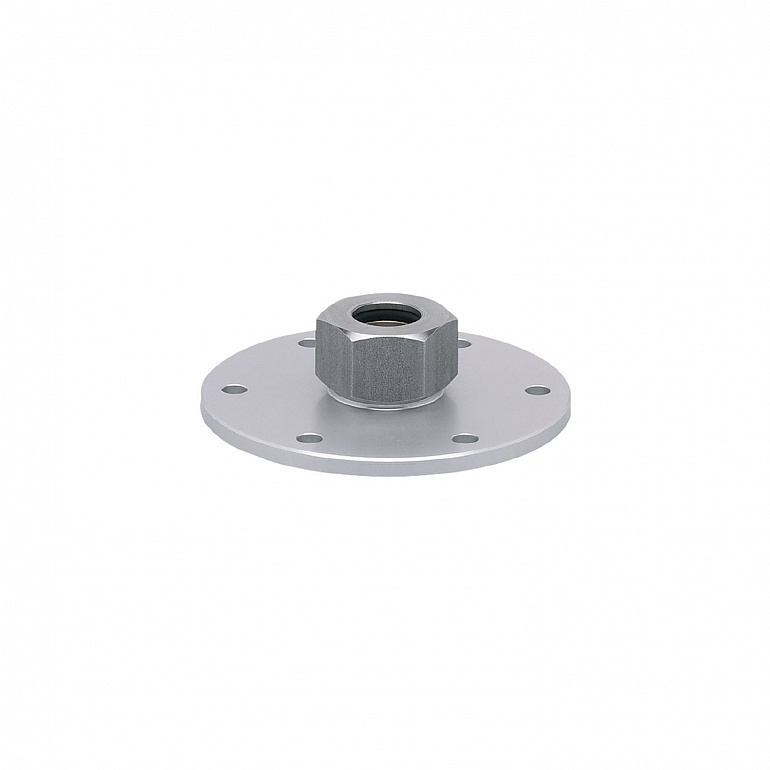

| Product designation | Flange plate |
Все характеристики
| Design | for capacitive level sensors LK, LI, LT, LL | ||
| Installation | according to DIN 24557 | ||
| Pressure rating |
|
||
| Ambient temperature | 0...80 | ||
| Weight | 183 | ||
| Type of mounting | according to DIN 24557 | ||
| Material | aluminum anodized; knurled nut: stainless steel; Spacer: brass; clamping ring: FKM; sealing: NBR | ||
| Tightening torque | 6...9 | ||
| Sensor connection | Clamp fitting Ø 16 mm | ||
| Process connection | flange | ||
| Pack quantity | 1 pcs. |
Приемущества
| Optional for the operation of capacitive level sensors |
| Easy, quick and inexpensive mounting in the tank lid |
| User-friendly setting of the requested immersion depth of the sensor |
| Stable fixing of the sensor by clamp fitting |
