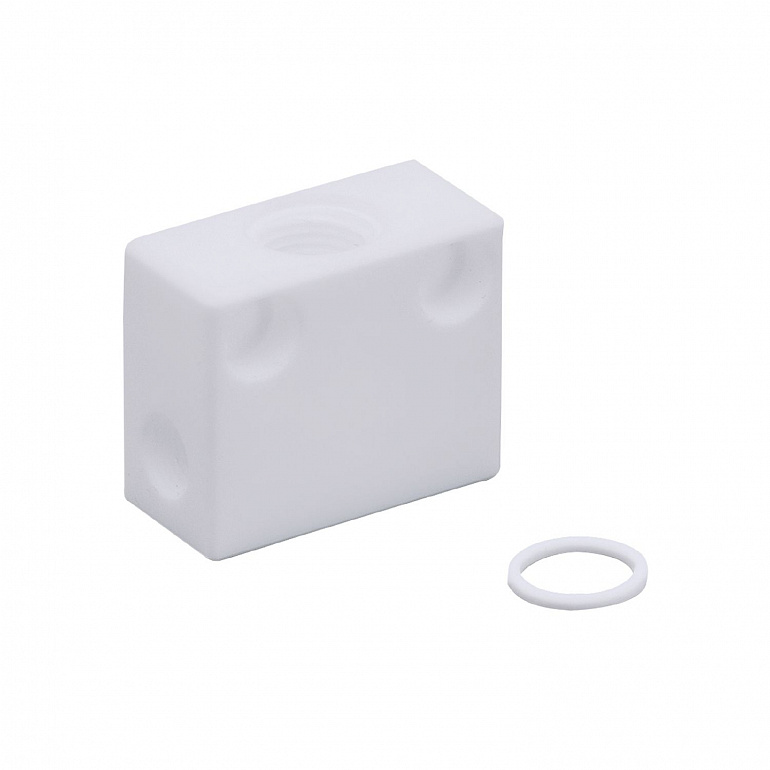

| Design |
for flow sensors with ceramic probe G¼ |
| Installation |
via internal G1/8A male thread, any mounting position |
| Medium temperature |
0...80 |
| Pressure rating |
|
| Flow range |
2...50 |
| Pressure equipment directive |
A possible classification to PED depends on the application and has to be carried out by the user / operator. |
| Safety instructions |
The compatibility between medium and product material has to be checked in all applications. |
| Weight |
48 |
| Material |
PTFE |
| Sensor connection |
G 1/4 |
| Process connection |
G 1/8 |
| Accessory required |
| Adapter: 1 x G1/4 BSPP, in combination with a flow sensor from the SI series, E40176 |
|
| Remarks |
| Can only be used in combination with the flow sensor’s relative operating mode. |
|
| Pack quantity |
1 pcs. |
