| Protection | IP 67 |
| Material | housing Upper part: PUR; housing lower part: PA 6.6; screw: stainless steel (1.4305 / 303); knurled nut: stainless steel (1.4305 / 303) |

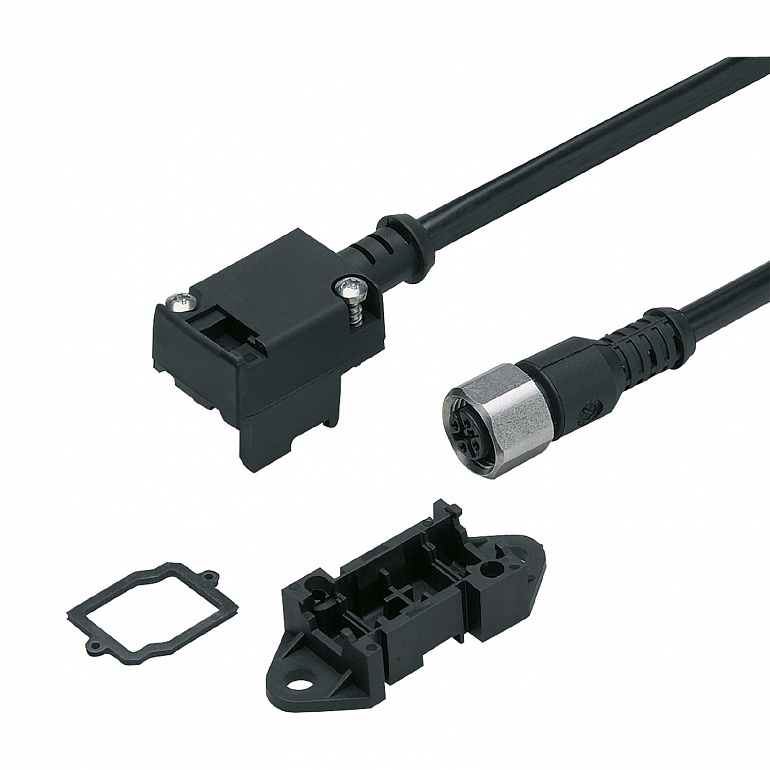

| Product designation | Flat cable insulation displacement connector |
| Ambient temperature | -20...70 |
Все характеристики
| System | gold-plated contacts | ||
| Design | AS-i | ||
| Operating voltage | 26.5...31.6 DC | ||
| Max. current load total | 2 | ||
| Ambient temperature | -20...70 | ||
| Protection | IP 67 | ||
| Weight | 82.7 | ||
| Material | housing Upper part: PUR; housing lower part: PA 6.6; screw: stainless steel (1.4305 / 303); knurled nut: stainless steel (1.4305 / 303) | ||
| Remarks |
|
||
| Pack quantity | 1 pcs. | ||
| Connection | Connector: M12, straight; coding: A; Contacts: gold-plated |
Приемущества
| For transition from AS-i flat cable to M12 connector |
| For extending the AS-i network |
| Easy and quick connection due to insulation displacement technology |
| High protection rating for the requirements of harsh industrial environments |
