Характеристики
| Protection | IP 65 |
| Material | PA 6.6; Socket: stainless steel (1.4404 / 316L); screws: stainless steel (1.4404 / 316L); Nut: stainless steel (1.4404 / 316L); O-ring: NBR; Flat cable seal: NBR |

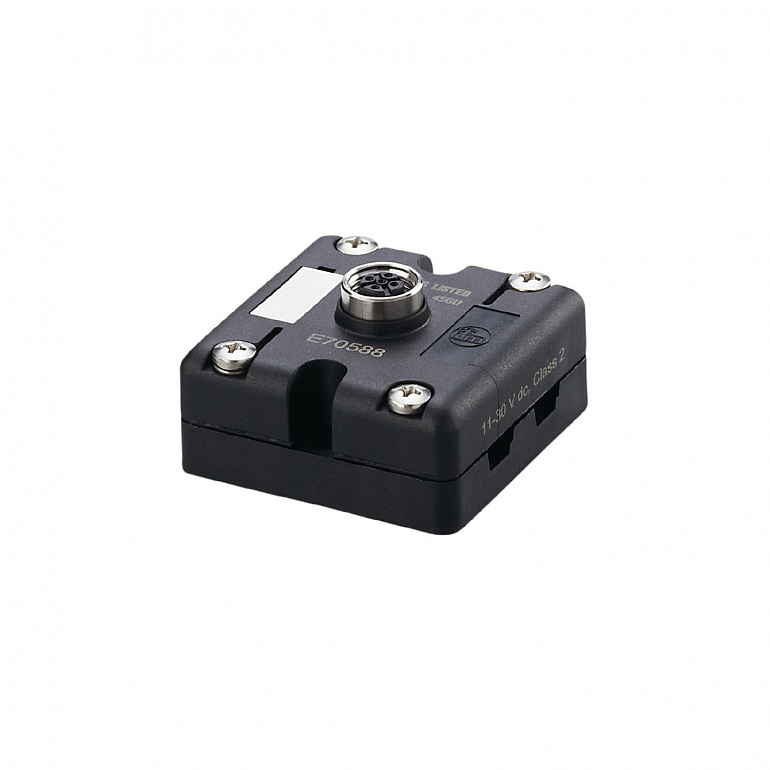

| Product designation | 4-M12 branching connections |
| Ambient temperature | -25...75 |
Все характеристики
| Design | AS-i / 24 V |
| Operating voltage | 26.5...31.6 DC |
| Max. current load total | 2 |
| Additional voltage supply | 24 DC |
| Ambient temperature | -25...75 |
| Protection | IP 65 |
| Weight | 95.5 |
| Material | PA 6.6; Socket: stainless steel (1.4404 / 316L); screws: stainless steel (1.4404 / 316L); Nut: stainless steel (1.4404 / 316L); O-ring: NBR; Flat cable seal: NBR |
| Pack quantity | 1 pcs. |
| Connector: M12; coding: A |
Приемущества
| Reliable distribution of the AS-i voltage or the external 24 V supply |
| Easy and quick connection due to insulation displacement technology |
| High protection rating for the requirements of harsh industrial environments |
| For transition from AS-i flat cable to M12 connector |
| For extending the AS-i network |
