Характеристики
| Protection | IP 67 |
| Material | PBT / PC |

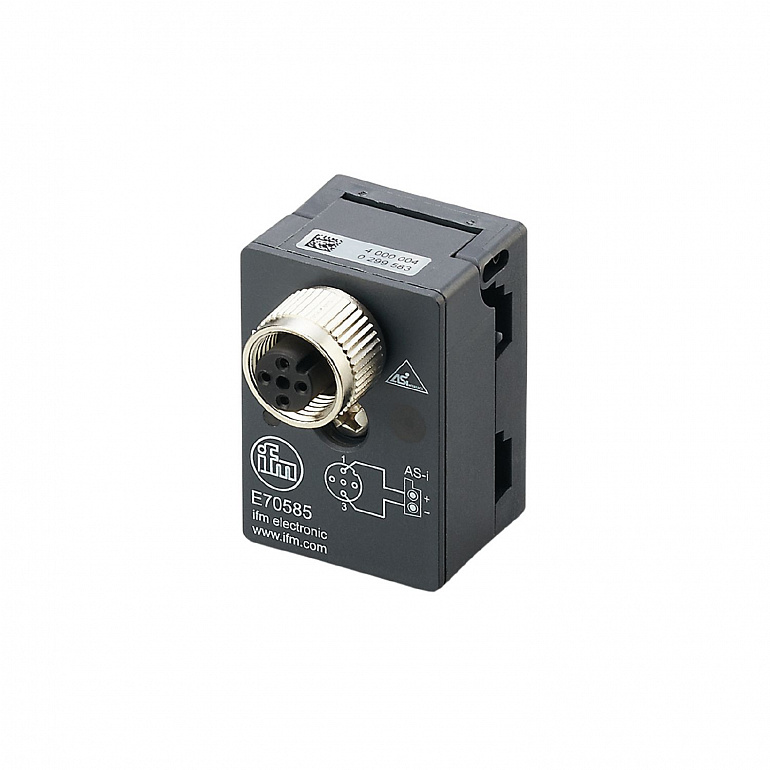

| Product designation | Flat cable insulation displacement connector |
| Ambient temperature | -25...75 |
Все характеристики
| Protection class | III | |||
| Max. current load total | 4 | |||
| Electrical design | AS-i | |||
| Ambient temperature | -25...75 | |||
| Protection | IP 67 | |||
| Weight | 53.8 | |||
| Material | PBT / PC | |||
| Tightening torque | 1.65 | |||
| Accessories (optional) |
|
|||
| Remarks |
|
|||
| Pack quantity | 1 pcs. | |||
| Connector: M12; coding: A |
Приемущества
| For transition from AS-i flat cable to M12 connector |
| For extending the AS-i network |
| Easy and quick connection due to insulation displacement technology |
| High protection rating for the requirements of harsh industrial environments |
