Характеристики
| Protection | IP 67 |
| Material | PBT; screw: stainless steel (1.4305 / 303); contact pins: gold-plated |

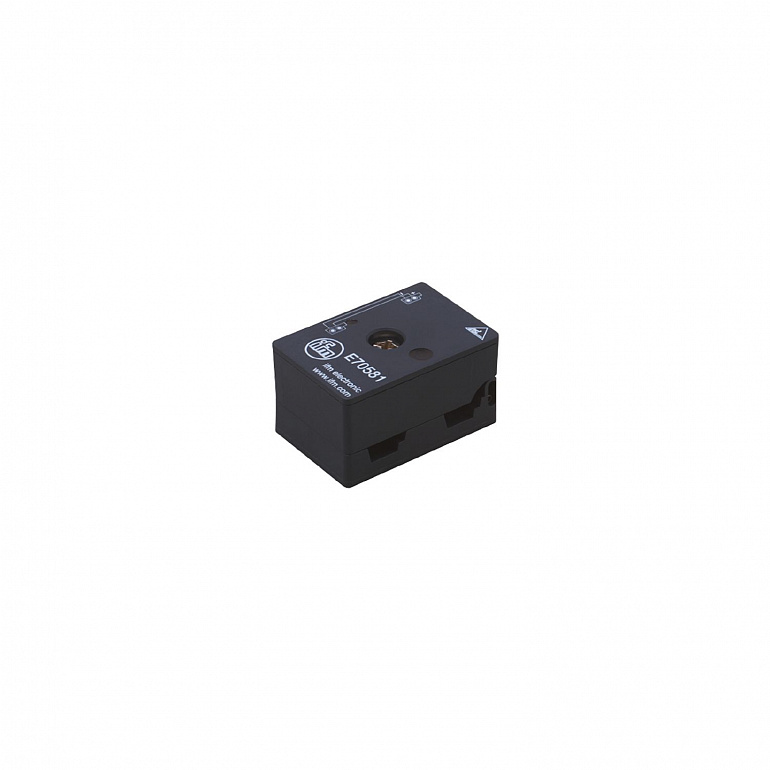

| Product designation | Flat cable splitter box |
| Ambient temperature | -25...75 |
Все характеристики
| Protection class | III | ||
| Max. current load total | 8 | ||
| Electrical design | AS-i | ||
| Ambient temperature | -25...75 | ||
| Storage temperature | -25...85 | ||
| Protection | IP 67 | ||
| Weight | 49.6 | ||
| Material | PBT; screw: stainless steel (1.4305 / 303); contact pins: gold-plated | ||
| Tightening torque | 1.65; (Mounting screw) | ||
| Accessories (optional) |
|
||
| Remarks |
|
||
| Pack quantity | 1 pcs. |
Приемущества
| Reliable distribution of the AS-i voltage or the external 24 V supply |
| Easy and quick connection due to insulation displacement technology |
| High protection rating for the requirements of harsh industrial environments |
