| Application |

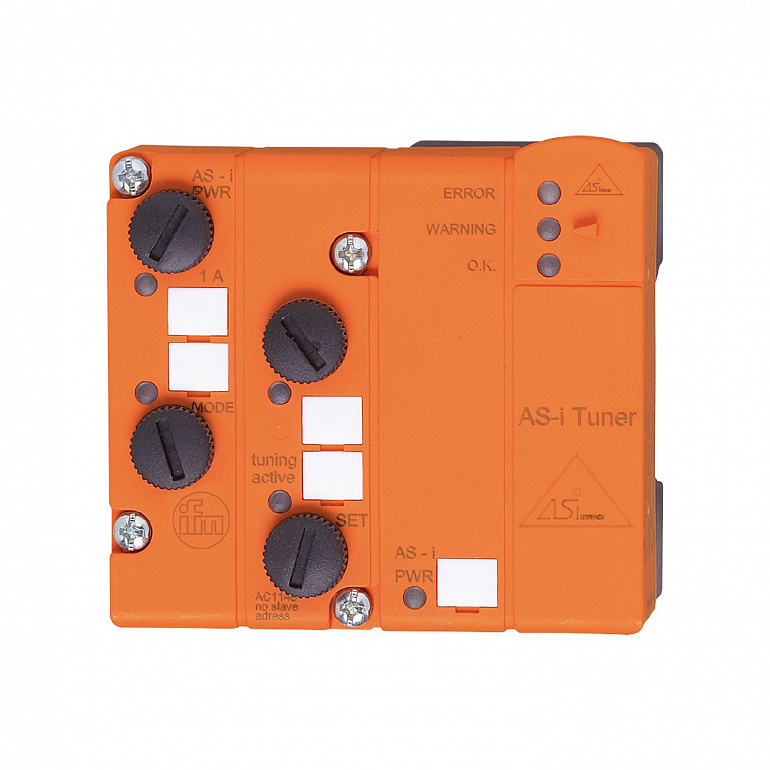

diagnostic tool for AS-i |
| Nominal voltage DC |
26.5...31.6 |
| Max. current consumption from AS-i |
60 |
| Reverse polarity protection |
yes |
| Undervoltage monitor |
yes |
| Ambient temperature |
0...55 |
| Protection |
IP 67 |
| MTTF |
140 |
| Weight |
199.2 |
| Housing |
rectangular |
| Dimensions |
83 x 90 x 44 |
| Material |
PBT |
| Display |
| Power | LED, green | | warning | LED, yellow | | errors | LED, red |
|
| Accessories (optional) |
| Module lower part:, AC5000 |
|
| Remarks |
| no addressing required | | Current rating of the AS-i distribution socket max. 1 A |
|
| Pack quantity |
1 pcs. |
|
Connector: M12; coding: A |
