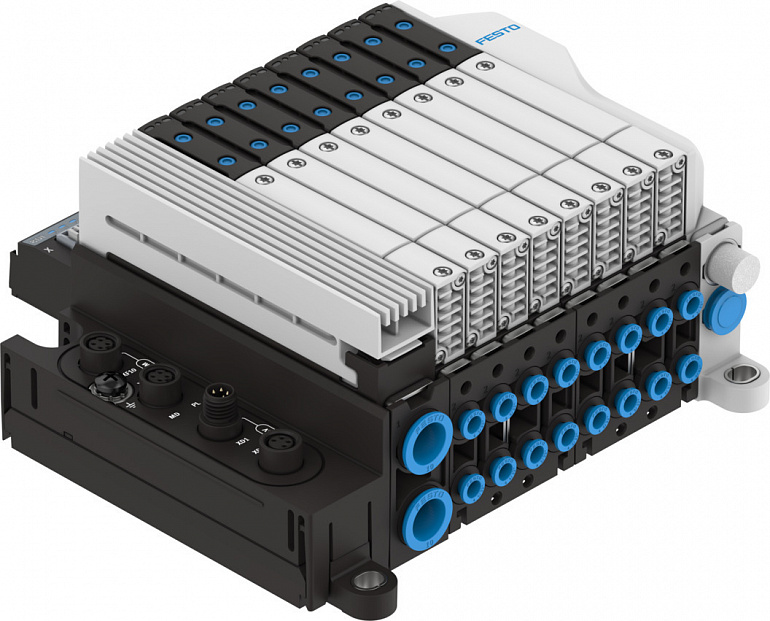

| Technical Data |
|
| Mounting method for sub-base |
With through-hole |
| Grid dimension |
10.5512.55 |
| Type of mounting |
Tie rod |
| Operating medium |
Compressed air to ISO 8573-1:2010 [7:4:4] |
| Pilot medium |
Compressed air to ISO 8573-1:2010 [7:4:4] |
| Note on operating and pilot medium |
Lubricated operation possible (in which case lubricated operation will always be required) |
| Ambient temperature |
-550 |
| Storage temperature |
-2070 |
| Nominal altitude of use |
<= 2000 m NHN |
| Max. installation height |
3500 |
| Degree of protection |
IP20IP40IP65 |
| Corrosion resistance class CRC |
1 - Low corrosion stress |
| Vibration resistance |
Transport application test with severity level 1 to FN 942017-4 and EN 60068-2-6 |
| Shock resistance |
Shock test with severity level 1 to FN 942017-5 and EN 60068-2-27 |
| Continuous shock resistance to DIN/IEC 68 Part 2-82 |
Tested according to severity level 1 |
| Operating pressure |
-17 |
| Pilot pressure |
1.57 |
| Operating pressure for valve terminal with internal pilot air supply |
21.75101.5 |
| LABS (PWIS) conformity |
VDMA24364-C1-L |
| CE mark (see declaration of conformity) |
To EU EMC DirectiveIn accordance with EU RoHS Directive |
| UKCA marking (see declaration of conformity) |
To UK instructions for EMCTo UK RoHS instructions |
| KC mark |
KC-EMV |
| Approval |
RCM trademark |
| Note on materials |
RoHS-compliant |
| Material seals |
HNBRNBR |
| Valve terminal structure |
Modular and expandable |
| Max. number of valve positions |
64 |
| Max. number of pressure zones |
16 |
| Type of actuation |
Electric |
| Valve function |
2x3/2-way, monostable, closed2x3/2-way, open, monostable5/2 bistable5/2-way, monostable5/3 closed5/4 closed, 2 or 4 exhausted |
| Design |
Piston gate valve |
| Sealing principle |
Soft |
| Type of piloting |
Pilot actuated |
| Valve size |
10 |
| Pilot air supply |
ExternalInternal |
| Nominal flow rate standardised according to ISO 8778 |
470690 |
| Suitability for vacuum |
yes |
| Exhaust-air function |
With flow control option |
| Pneumatic connection, port 1 |
QS-8QS-10QS-12QS-5/16QS-3/8For 15 mm cartridgeBlanking plug |
| Pneumatic connection, port 2 |
QS-4QS-6QS-8QS-5/32QS-1/8QS-1/4QS-5/16For 10 mm cartridgeFor 12 mm cartridgeBlanking plug |
| Pneumatic connection, port 3 |
QS-8QS-10QS-12QS-5/16QS-3/8For 15 mm cartridgeSilencerBlanking plug |
| Pneumatic connection, port 4 |
QS-4QS-6QS-8QS-5/32QS-1/8QS-1/4QS-5/16For 10 mm cartridgeFor 12 mm cartridgeBlanking plug |
| Pneumatic connection, port 5 |
QS-8QS-10QS-12QS-5/16QS-3/8SilencerFor 15 mm cartridgeBlanking plug |
| Pilot air port 12/14 |
Blanking plugQS-4QS-6QS-8QS-5/16QS-1/4For 12 mm cartridge |
| Pilot exhaust port 82/84 |
QS-4QS-6QS-8QS-5/16QS-1/4SilencerFor 12 mm cartridge |
| Nominal operating voltage DC |
24 |
| Permissible voltage fluctuations |
+/- 10 % |
