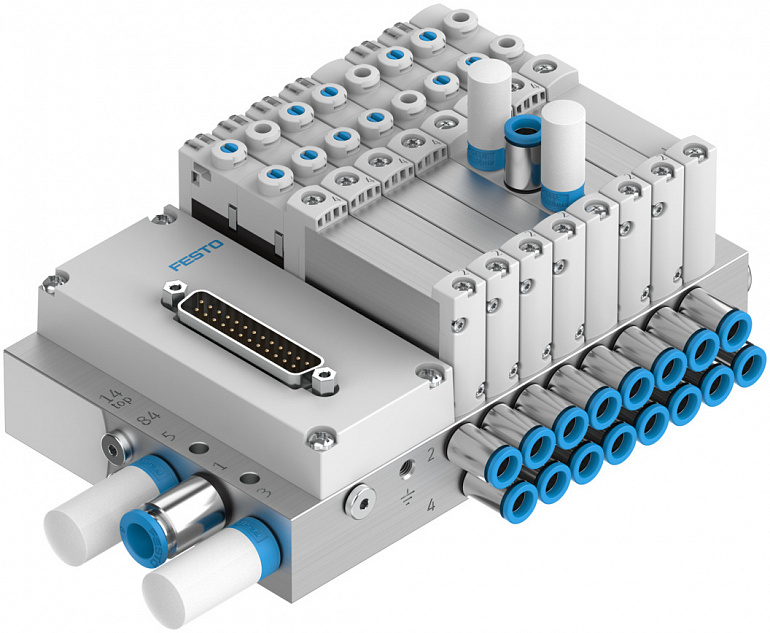

| Technical Data |
|
| Electrical control |
AP interfaceI-PortIO-Link®Multi-pin plug |
| Electrical I/O system |
no |
| Operating medium |
Compressed air to ISO 8573-1:2010 [7:4:4] |
| Pilot medium |
Compressed air to ISO 8573-1:2010 [7:4:4] |
| Note on operating and pilot medium |
Lubricated operation possible (in which case lubricated operation will always be required) |
| Media temperature |
-560 |
| Ambient temperature |
-560 |
| Storage temperature |
-1060 |
| Degree of protection |
IP40 |
| Corrosion resistance class CRC |
2 - Moderate corrosion stress |
| Vibration resistance |
Transport application test with severity level 2 to FN 942017-4 and EN 60068-2-6 |
| Shock resistance |
Shock test with severity level 2 to FN 942017-5 and EN 60068-2-27 |
| Operating pressure |
-0.910 |
| Pilot pressure |
1.58 |
| Operating pressure for valve terminal with internal pilot air supply |
21.75116 |
| LABS (PWIS) conformity |
VDMA24364 zone III |
| Suitability for the production of Li-ion batteries |
Suitable for battery production according to the Festo internal definition of the degree of severity F1A with restrictions regarding the use of Cu/Zn/Ni |
| Cleanroom class |
Class 5 according to ISO 14644-1 |
| CE mark (see declaration of conformity) |
To EU EMC DirectiveIn accordance with EU RoHS Directive |
| UKCA marking (see declaration of conformity) |
To UK instructions for EMCTo UK RoHS instructions |
| Approval |
RCM trademarkc UL us - Recognized (OL) |
| Certificate issuing authority |
UL MH19482 |
| Note on materials |
RoHS-compliant |
| Material seals |
HNBRNBR |
| Valve terminal structure |
Fixed grid |
| Max. number of valve positions |
24 |
| Max. number of pressure zones |
13 |
| Type of actuation |
Electric |
| Valve function |
2x3/2-way, monostable, closed2x3/2-way, open, monostable2x3/2-way, open/closed, monostable3/2-way, closed, monostable3/2 open, monostable5/2 bistable5/2-way, monostable5/3-way, pressurised5/3 exhausted5/3 closed |
| Design |
Piston gate valve |
| Sealing principle |
Soft |
| Type of piloting |
Pilot actuated |
| Valve size |
10 |
| Pilot air supply |
ExternalInternal |
| Max. standard nominal flow rate |
330 l/min at 10 mm630 l/min at 14 mm |
| Standard nominal flow rate (standardised to DIN 1343) |
130630 |
| Suitability for vacuum |
yes |
| Exhaust-air function |
With flow control option |
| Variants |
Metals with copper, zinc or nickel by mass as main constituent are excluded from use. Exceptions are nickel in steel, chemically nickel-plated surfaces, printed circuit boards, cables, electrical plug connectors and coils. |
| pneumatic working port |
M5M7G1/8QS-4QS-6QS-8 |
| Pneumatic connection, port 1 |
G1/8G1/4QS-6QS-8QS-10QS-12 |
| Pilot air port 12/14 |
M5 |
| Signal status display |
LED |
| Nominal operating voltage DC |
24 |
| Permissible voltage fluctuations |
+/- 10 %+/- 25% |
| Nominal pick-up current per solenoid coil |
47 mA up to 20 ms |
| Nominal current with current reduction |
15.5 mA after 20 ms |
