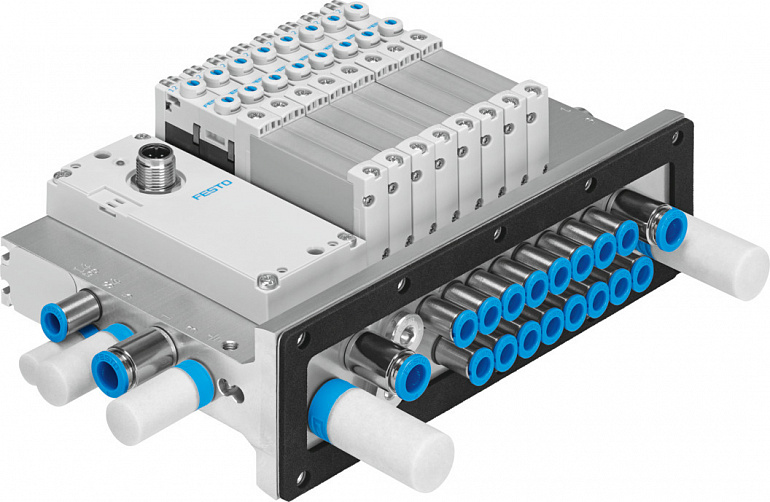

| Technical Data |
|
| Electrical control |
FieldbusI-PortIO-Link®Multi-pin plug |
| Electrical I/O system |
no |
| Operating medium |
Compressed air to ISO 8573-1:2010 [7:4:4] |
| Pilot medium |
Compressed air to ISO 8573-1:2010 [7:4:4] |
| Note on operating and pilot medium |
Lubricated operation possible (in which case lubricated operation will always be required) |
| Media temperature |
-560 |
| Ambient temperature |
-560 |
| Storage temperature |
-1060 |
| Degree of protection |
IP20IP65 |
| Corrosion resistance class CRC |
2 - Moderate corrosion stress |
| Vibration resistance |
Transport application test with severity level 2 to FN 942017-4 and EN 60068-2-6 |
| Shock resistance |
Shock test with severity level 2 to FN 942017-5 and EN 60068-2-27 |
| Operating pressure |
-0.910 |
| Pilot pressure |
1.58 |
| Operating pressure for valve terminal with internal pilot air supply |
1.58 |
| LABS (PWIS) conformity |
VDMA24364-B2-L |
| CE mark (see declaration of conformity) |
To EU EMC DirectiveTo EU Explosion Protection Directive (ATEX)In accordance with EU RoHS Directive |
| UKCA marking (see declaration of conformity) |
To UK instructions for EMCTo UK EX instructionsTo UK RoHS instructions |
| Approval |
RCM trademarkc UL us - Recognized (OL) |
| Explosion protection |
Class I, Div. 2 (CA)Class I, Div. 2 (US)Class II, Div. 2 (CA)Class II, Div. 2 (US)Zone 0 (BR)Zone 2 (ATEX)Zone 2 (CA)Zone 2 (CN)Zone 2 (IEC-EX)Zone 2 (KR)Zone 2 (US)Zone 20 (BR)Zone 22 (ATEX)Zone 22 (CA)Zone 22 (CN)Zone 22 (IEC-EX)Zone 22 (KR)Zone 22 (US) |
| ATEX category gas |
II 3G |
| ATEX category dust |
II 3D |
| Explosion protection certification outside the EU |
Class I, Div. 2 (CA)Class I, Div. 2 (US)Class II, Division 2 (CA)Class II, Div. 2 (US)Class III (CA)Class III (US)EPL Da (BR)EPL Dc (CA)EPL Dc (CN)EPL Dc (IECEx)EPL Dc (KR)EPL Dc (US)EPL Ga (BR)EPL Gc (CA)EPL Gc (CN)EPL Gc (IECEx)EPL Gc (KR)EPL Gc (US) |
| Explosion ignition protection type for gas |
Class I, Zone 2, AEx ec IIC Gc (US)Ex ec IIC Gc (CA)Ex ec IIC T4 Gc |
| Explosion ignition protection type for dust |
Ex tc IIIC T135 Dc (CA)Ex tc IIIC T135°C Dc |
| Explosion ambient temperature |
-5 °C <= Ta <= +50 °C-5°C <= Ta <= +60°C |
| Certificate issuing authority |
24-KA4BO-0392X24-KA4BO-0393X24-KA4BO-0394X24-KA4BO-0395XGYJ19.1188XIBExU16ATEXB021 XIECEx IBE 17.0003 XIECEx IBE 19.0018 XUL E198674UL MH19482 |
| Note on materials |
RoHS-compliant |
| Material seals |
HNBRNBR |
| Valve terminal structure |
Fixed grid |
| Max. number of valve positions |
24 |
| Max. number of pressure zones |
13 |
| Type of actuation |
Electric |
| Valve function |
2x3/2-way, monostable, closed2x3/2-way, open, monostable2x3/2-way, open/closed, monostable3/2-way, closed, monostable3/2 open, monostable5/2 bistable5/2-way, monostable5/3-way, pressurised5/3 exhausted5/3 closed |
| Design |
Piston gate valve |
| Sealing principle |
Soft |
| Type of piloting |
Pilot actuated |
| Valve size |
18 |
| Pilot air supply |
ExternalInternal |
| Max. standard nominal flow rate |
330 l/min at 10 mm630 l/min at 14 mm1200 l/min at 18 mm |
| Standard nominal flow rate (standardised to DIN 1343) |
1301150 |
| Suitability for vacuum |
yes |
| Exhaust-air function |
With flow control option |
| pneumatic working port |
M5M7G1/8G1/4QS-3QS-4QS-6QS-8QS-10QS-5/32QS-1/8QS-3/16QS-1/4QS-5/16QS-3/8 |
| Pneumatic connection, port 1 |
G1/8G1/4G3/8QS-3QS-4QS-6QS-8QS-10QS-12QS-16QS-1/4QS-5/16QS-3/8QS-1/2 |
| Pilot air port 12/14 |
G1/8 |
| Signal status display |
LED |
| Nominal operating voltage DC |
24 |
| Permissible voltage fluctuations |
+/- 10 %+/- 25% |
| Nominal pick-up current per solenoid coil |
47 mA up to 20 ms |
| Nominal current with current reduction |
15.5 mA after 20 ms |
