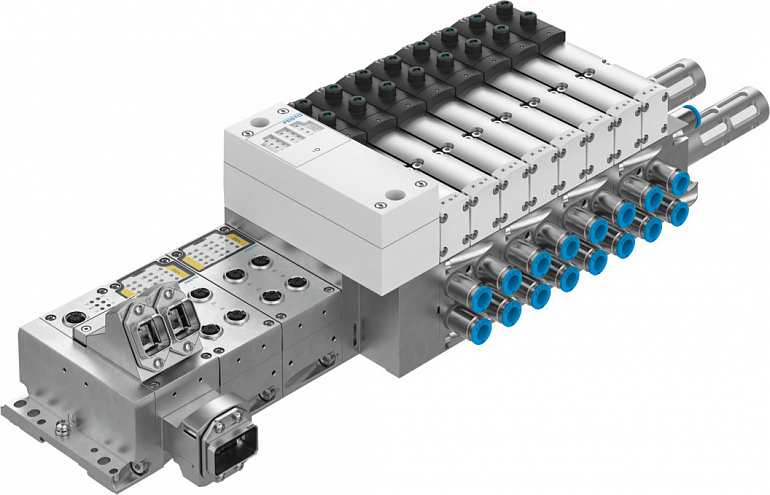

| Technical Data |
|
| Electrical control |
EthernetFieldbusIntegrated controller |
| Electrical I/O system |
yes |
| Terminal type |
46 |
| Operating medium |
Compressed air to ISO 8573-1:2010 [7:4:4] |
| Pilot medium |
Compressed air to ISO 8573-1:2010 [7:4:4] |
| Note on operating and pilot medium |
Lubricated operation not possible |
| Ambient temperature |
-550 |
| Storage temperature |
-2060 |
| Relative air humidity |
0 - 90% |
| Degree of protection |
IP65 |
| Corrosion resistance class CRC |
0 - No corrosion stress |
| Operating pressure |
-0.910 |
| Pilot pressure |
310 |
| Operating pressure for valve terminal with internal pilot air supply |
43.5145 |
| LABS (PWIS) conformity |
VDMA24364-B1/B2-L |
| CE mark (see declaration of conformity) |
To EU EMC Directive |
| KC mark |
KC-EMV |
| Approval |
c UL us - Recognized (OL) |
| Certificate issuing authority |
UL E322346 |
| Note on materials |
RoHS-compliant |
| Valve terminal structure |
Modular, valve sizes can be mixed |
| Manual override |
DetentingDetenting via accessoryNon-detentingCoveredSelf-resetting via electrical control signal |
| Number of voltage zones |
6 |
| Number of controllable coils per voltage zone |
24 |
| Number of controllable coils per valve terminal |
96 |
| Type of actuation |
Electric |
| Valve function |
2x2/2-way, monostable, closed2x3/2-way, monostable, closed2x3/2-way, open, monostable2x3/2-way, open/closed, monostable5/2 bistable5/2-way, bistable, dominant5/2-way, monostable5/3-way, pressurised5/3 exhausted5/3 closed5/3-way, port 2 pressurised, 4 exha |
| Design |
Piston gate valve |
| Valve size |
42 |
| Pilot air supply |
ExternalInternal |
| Max. standard nominal flow rate |
700 l/min at 18 mm1350 l/min at 26 mm1860 l/min at 42 mm2900 l/min at 52 mm |
| Suitability for vacuum |
yes |
| Exhaust-air function |
Via throttle plate |
| pneumatic working port |
QS-6QS-8QS-10QS-12QS-16 |
| Pilot air port 12 |
DuctedEither: |
| Note on forced dynamization |
Switching frequency min. 1/month |
| Signal status display |
LED |
| Nominal operating voltage DC |
24 |
| Permissible voltage fluctuations |
+/- 10 % |
| Max. power supply |
11 |
