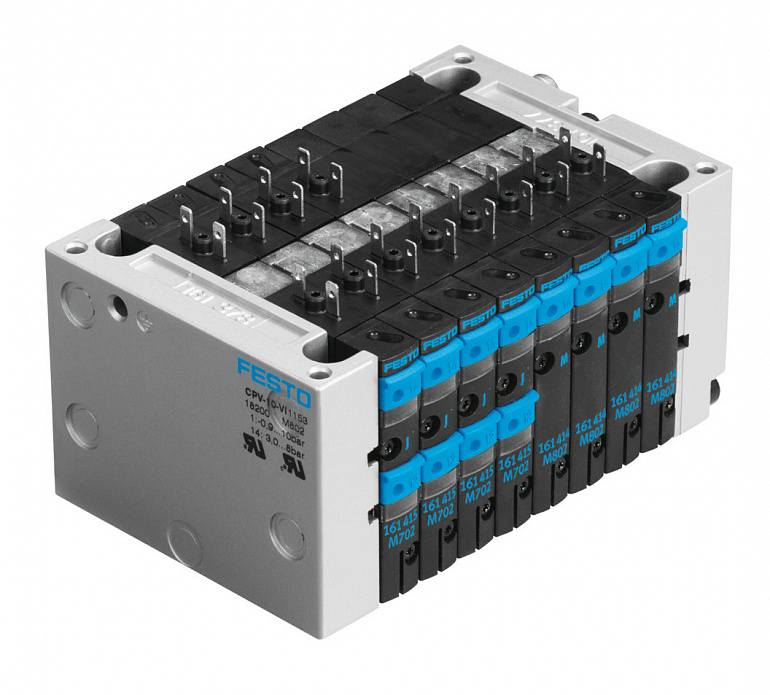

| Technical Data |
|
| Electrical control |
AS-InterfaceCPI installation systemIndividual connectionFieldbusMulti-pin plug |
| Electrical I/O system |
yes |
| Terminal type |
10 |
| Operating medium |
Compressed air to ISO 8573-1:2010 [7:4:4] |
| Note on operating and pilot medium |
Lubricated operation possible (in which case lubricated operation will always be required) |
| Media temperature |
-550 |
| Ambient temperature |
-550 |
| Storage temperature |
-2040 |
| Degree of protection |
IP65 |
| Corrosion resistance class CRC |
1 - Low corrosion stress2 - Moderate corrosion stress |
| Vibration resistance |
Transport application test with severity level 2 to FN 942017-4 and EN 60068-2-6 |
| Shock resistance |
Shock test with severity level 2 to FN 942017-5 and EN 60068-2-27 |
| Operating pressure |
-0.910 |
| Note on operating pressure |
0 - 0.8 MPa with ext. pilot air0 - 8 bar with external pilot air |
| Pilot pressure |
38 |
| LABS (PWIS) conformity |
VDMA24364-B1/B2-L |
| CE mark (see declaration of conformity) |
To EU EMC DirectiveTo EU Explosion Protection Directive (ATEX)In accordance with EU RoHS Directive |
| UKCA marking (see declaration of conformity) |
To UK instructions for EMCTo UK EX instructionsTo UK RoHS instructions |
| KC mark |
KC-EMV |
| Approval |
RCM trademarkc UL us - Recognized (OL) |
| Explosion protection |
Class I, Div. 2 (US)Zone 2 (ATEX)Zone 2 (UKEX) |
| ATEX category gas |
II 3G |
| Explosion protection certification outside the EU |
EPL Gc (GB)NEC 500 Class I, Div. 2 |
| Explosion ignition protection type for gas |
Ex ec IIC T4 Gc X |
| Explosion ambient temperature |
-5 °C <= Ta <= +50 °C |
| Note on materials |
RoHS-compliant |
| Valve terminal structure |
Fixed grid |
| Max. number of valve positions |
8 |
| Max. number of valve functions |
16 |
| Max. number of pressure zones |
2 |
| Type of actuation |
Electric |
| Valve function |
2x2/2-way, monostable, closed2x2/2-way, open/closed, monostable2x3/2-way, monostable, closed2x3/2-way, open, monostable2x3/2-way, open/closed, monostable5/2 bistable5/2-way, monostableVacuum generatorVacuum generator + 2/2-way, closed, monostable |
| Design |
Piston gate valve |
| Sealing principle |
Soft |
| Valve size |
10 |
| Pilot air supply |
ExternalInternal |
| Max. standard nominal flow rate |
400 l/min at 10 mm |
| Nominal size |
4 |
| Suitability for vacuum |
yes |
| pneumatic working port |
M7QS-4QS-6QS-1/8QS-1/4 |
| Pneumatic connection, port 1 |
Common line |
| Pneumatic connection, port 2 |
M7 |
| Pneumatic connection, port 3 |
Common line |
| Pneumatic connection, port 4 |
M7 |
| Pilot air port 12/14 |
Common line |
| Pilot exhaust port 82/84 |
Common line |
| Signal status display |
LED |
| Nominal operating voltage DC |
24 |
