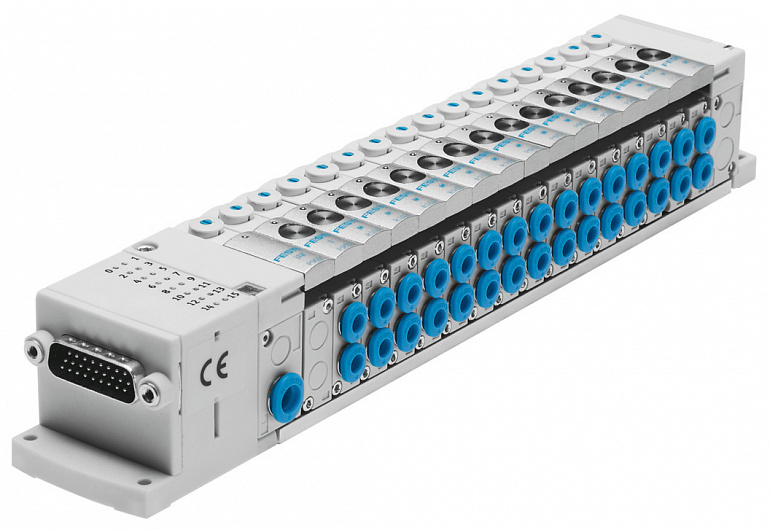

| Technical Data |
|
| Electrical control |
CPI installation systemIndividual connectionMulti-pin plug |
| Electrical I/O system |
yes |
| Terminal type |
80 |
| Operating medium |
Compressed air to ISO 8573-1:2010 [7:4:4] |
| Note on operating and pilot medium |
Lubricated operation possible (in which case lubricated operation will always be required) |
| Media temperature |
-550 |
| Ambient temperature |
-550 |
| Degree of protection |
IP40 |
| Corrosion resistance class CRC |
1 - Low corrosion stress |
| Operating pressure |
-0.97 |
| Pilot pressure |
37 |
| Operating pressure for valve terminal with internal pilot air supply |
37 |
| LABS (PWIS) conformity |
VDMA24364-B2-L |
| CE mark (see declaration of conformity) |
To EU EMC Directive |
| KC mark |
KC-EMV |
| Approval |
c UL us - Recognized (OL) |
| Note on materials |
RoHS-compliant |
| Valve terminal structure |
Fixed grid |
| Max. number of valve positions |
16 |
| Max. number of pressure zones |
8 |
| Type of actuation |
Electric |
| Valve function |
2/2-way, closed, monostable3/2-way, closed, monostable3/2 open, monostable5/2 bistable5/2-way, monostable |
| Design |
Piston gate valve |
| Valve size |
10 |
| Pilot air supply |
ExternalInternal |
| Max. standard nominal flow rate |
170 l/min at 10 mm |
| Nominal size |
2.5 |
| Suitability for vacuum |
yes |
| Exhaust-air function |
Without flow control option |
| pneumatic working port |
M5QS-3QS-4QS-5/32QS-1/8 |
| Signal status display |
LED |
| Nominal operating voltage DC |
24 |
| Permissible voltage fluctuations |
+/- 10 % |
