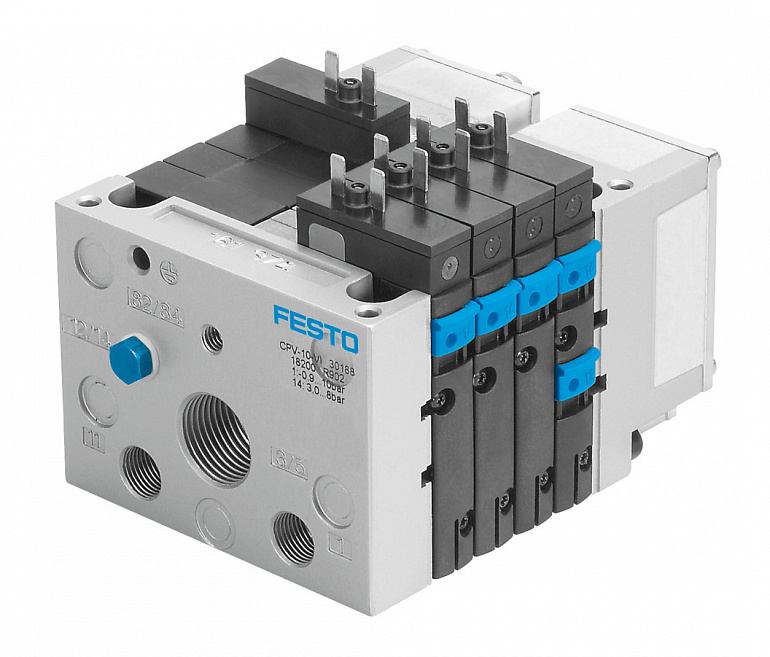

| Technical Data |
|
| Electrical control |
Individual connection |
| Terminal type |
10 |
| Operating medium |
Compressed air to ISO 8573-1:2010 [7:4:4] |
| Note on operating and pilot medium |
Lubricated operation possible (in which case lubricated operation will always be required) |
| Media temperature |
-550 |
| Ambient temperature |
-550 |
| Storage temperature |
-2040 |
| Degree of protection |
Plug sockets IP50Valve terminal IP55 |
| Corrosion resistance class CRC |
1 - Low corrosion stress2 - Moderate corrosion stress |
| Operating pressure |
010 |
| Pilot pressure |
38 |
| LABS (PWIS) conformity |
VDMA24364-B1/B2-L |
| CE mark (see declaration of conformity) |
To EU Explosion Protection Directive (ATEX)In accordance with EU RoHS Directive |
| UKCA marking (see declaration of conformity) |
To UK EX instructionsTo UK RoHS instructions |
| Approval |
c UL us - Recognized (OL) |
| Explosion protection |
Zone 1 (ATEX)Zone 1 (CN)Zone 1 (IEC-EX)Zone 1 (UKEX)Zone 2 (ATEX)Zone 21 (ATEX)Zone 21 (CN)Zone 21 (IEC-EX)Zone 21 (UKEX)Zone 22 (ATEX) |
| ATEX category gas |
II 2G |
| ATEX category dust |
II 2D |
| Explosion protection certification outside the EU |
EPL Db (CN)EPL Db (GB)EPL Db (IEC-EX)EPL Gb (CN)EPL Gb (GB)EPL Gb (IECEx) |
| Explosion ignition protection type for gas |
Ex ib IIC T4 Gb |
| Explosion ignition protection type for dust |
Ex ib IIIC T100°C Db |
| Explosion ambient temperature |
Pi 0.76W: -5°C <= Ta <= +50°CPi 0.93W: -5 °C <= Ta <= +40 °C |
| Certificate issuing authority |
GYJ20.1646XIBExU12ATEX1110XIECEx IBE13.0046XGerman Technical Control Board (TÜV) 21 UKEX 7013 X |
| Note on materials |
RoHS-compliant |
| Valve terminal structure |
Fixed grid |
| Max. number of valve positions |
8 |
| Max. number of pressure zones |
2 |
| Type of actuation |
Electric |
| Valve function |
2x2/2-way, monostable, closed2x2/2-way, open/closed, monostable2x3/2-way, monostable, closed2x3/2-way, open, monostable2x3/2-way, open/closed, monostable5/2 bistable5/2-way, monostable5/3 closed |
| Design |
Piston gate valve |
| Sealing principle |
Soft |
| Valve size |
10 |
| Pilot air supply |
ExternalInternal |
| Max. standard nominal flow rate |
400 l/min at 10 mm |
| Standard nominal flow rate (standardised to DIN 1343) |
400 |
| Nominal size |
4 |
| Suitability for vacuum |
no |
| pneumatic working port |
M7QS-4QS-6 |
| Pneumatic connection, port 1 |
Common line |
| Pneumatic connection, port 2 |
M7 |
| Pneumatic connection, port 3 |
Common line |
| Pneumatic connection, port 4 |
M7 |
| Pilot air port 12/14 |
Common line |
| Pilot exhaust port 82/84 |
Common line |
| Nominal operating voltage DC |
24 |
| Required current consumption |
0.016 |
