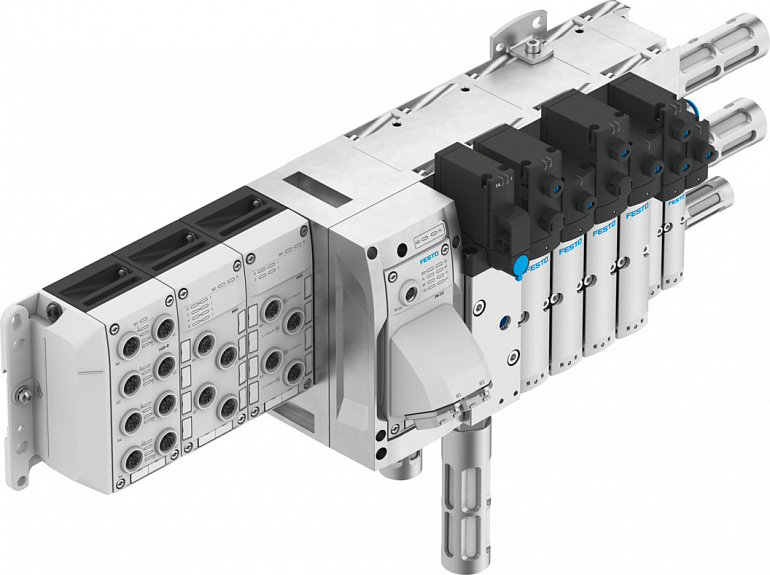

SKU: 8130716

Все характеристики

Technical Data
Electrical control	AP interfaceFieldbus
Electrical I/O system	yes
Terminal type	44
Protocol	AP
Type of mounting	Direct mounting via through-holeOn H-rail via accessoriesOn mounting frameScrew-clampedWith through-hole for M5 screw with accessoriesWith through-hole for M6 screw with accessoriesVia through-hole for M5 screwVia through-hole for M6 screw
Max. number of modules	15
Mounting position	Any, on H-rail: horizontal
Operating medium	Compressed air to ISO 8573-1:2010 [7:4:4]
Note on operating and pilot medium	Lubricated operation possible (in which case lubricated operation will always be required)
Ambient temperature	-550
Note on ambient temperature	Observe ambient temperature derating according to IEC 61131-2:2017
Storage temperature	-2060
Relative air humidity	5 - 90%Non-condensing
Nominal altitude of use	<= 2000 m ASL (> 79.5 kPa)
Max. installation height	3500
Note on max. installation height	> 2000 m ASL (< 79.5 kPa)Observe ambient temperature derating according to IEC 61131-2:2017
Degree of protection	IP65
Note on degree of protection	Unused connections sealed
Corrosion resistance class CRC	0 - No corrosion stress
Protection against direct and indirect contact	SELV/PELV power supply units required
Pollution degree	2
Operating pressure	-0.910
Pilot pressure	310
Operating pressure for valve terminal with internal pilot air supply	43.5145
LABS (PWIS) conformity	VDMA24364-B1/B2-L
CE mark (see declaration of conformity)	To EU EMC DirectiveIn accordance with EU RoHS Directive
UKCA marking (see declaration of conformity)	To UK instructions for EMCTo UK RoHS instructions
KC mark	KC-EMV
Approval	RCM trademarkc UL us - Recognized (OL)
Certificate issuing authority	UL E322346
Note on materials	RoHS-compliantFree of halogenFree of phosphoric acid ester
Valve terminal structure	Modular, valve sizes can be mixed
Max. number of valve positions	32
Max. number of pressure zones	32
Type of actuation	Electric
Valve function	2x2/2-way, monostable, closed2x3/2-way, monostable, closed2x3/2-way, open, monostable2x3/2-way, open/closed, monostable5/2 bistable5/2-way, bistable, dominant5/2-way, monostable5/2-way, monostable, safety function5/3-way, pressurised5/3 exhausted5/3 close
Design	Piston gate valve
Valve size	42
Pilot air supply	ExternalInternal
Max. standard nominal flow rate	700 l/min at 18 mm1350 l/min at 26 mm1860 l/min at 42 mm2900 l/min at 52 mm4000 l/min at 65 mm
Suitability for vacuum	yes
Exhaust-air function	Via throttle plate
pneumatic working port	G1/8G1/4G3/8G1/21/8 NPT1/4 NPT3/8 NPT1/2 NPTQS-6QS-8QS-10QS-12QS-14QS-16QS-5/16QS-3/8QS-1/2
Signal status display	LED
Note on fieldbus interface	All information that is relevant to CPX-AP can be read out via the Ethernet interfaces/fieldbus connections and changed depending on the function.Auto MDI, the bus module performs a crossover checkFirmware update via Ethernet interface/fieldbus interfaceI
Fieldbus interface	Ethernet
Field bus, protocol	ACD (Address Conflict Detection)DLR (Device Level Ring)EtherCAT®EtherCAT CoEEtherCAT Distributed Clocks (DC)EtherCAT EoEEtherCAT FoEEtherCAT Modular Device Profile (MDP)EtherNet/IPEtherNet/IP QoSEtherNet/IP QuickconnectLLDPMRP, MRPD (ring redundancy)Modbu
Fieldbus interface, function	Bus connection incoming/outgoing
Field bus, connection type	2x socket
Field bus, connection system	M12x1, D-coded to EN 61076-2-101RJ45 to IEC 61076-3-117 (V14)SCRJ to IEC 61754-24-21
Field bus, connection pattern	28
Field bus interface, electrical isolation	yes
Field bus interface, transmission rate	100 Mbit/s
Max. address volume, inputs	1024
Note on inputs	EP: 488 bytesModbus: 4096 bytes
Max. address volume, outputs	1024
Note on outputs	EP: 496 bytesModbus: 4096 bytes
Internal cycle time	< 1 ms
Configuration support	EDS fileESI fileGSDML fileIODD file
Power supply, function	Incoming electronics/sensors and load and functional earth
Power supply, connection type	Plugs
power supply, connection system	7/8“ to NFPA/T3.5.29M12x1, L-coded to EN 61076-2-111M18x1Push-pull to IEC 61076-3-126
Power supply, number of pins/wires	45
Note regarding operating voltage	SELV/PELV fixed power supplies requiredNote voltage drop
Nominal operating voltage DC	24
Note on nominal operating voltage DC	Protected Extra-Low-Voltage to IEC 60204-1
Permissible voltage fluctuations	+/- 10 %
Nominal DC operating voltage, electronics/sensors	24
Permissible voltage fluctuations for electronics/sensors	± 25%
Max. power supply	816
Typ. intrinsic current consumption at nominal operating voltage for electronic system/sensors	4010000
Typ. intrinsic current consumption at nominal operating voltage, load	310000
Power failure bridging	10
Potential separation between the supply voltages electronics/sensor technology and load/valves	Yes
Reverse polarity protection	yes
