| Technical Data |
|
| Electrical control |
Individual connection |
| Terminal type |
16 |
| Operating medium |
Compressed air to ISO 8573-1:2010 [7:4:4] |
| Pilot medium |
Compressed air to ISO 8573-1:2010 [7:4:4] |
| Note on operating and pilot medium |
Lubricated operation possible (in which case lubricated operation will always be required) |
| Media temperature |
-550 |
| Ambient temperature |
-550 |
| Storage temperature |
-2060 |
| Relative air humidity |
0 - 90% |
| Degree of protection |
IP65NEMA 4 |
| Corrosion resistance class CRC |
0 - No corrosion stress |
| Operating pressure |
-0.916 |
| Pilot pressure |
310 |
| LABS (PWIS) conformity |
VDMA24364-B2-L |
| Note on materials |
RoHS-compliant |
| Material seals |
HNBRNBR |

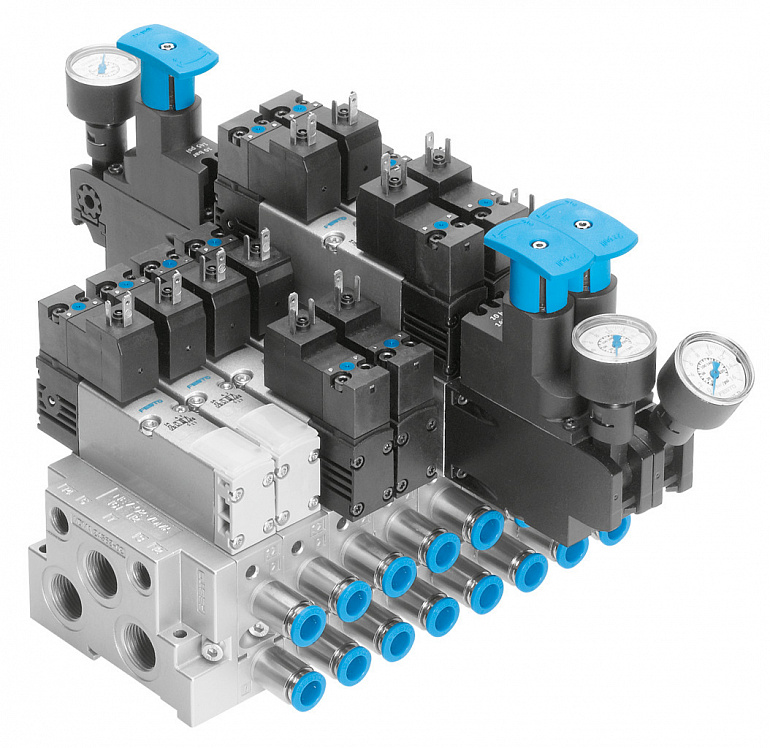

| Valve terminal structure |
Modular, valve sizes can be mixed |
| Max. number of valve positions |
16 |
| Max. number of pressure zones |
3 |
| Type of actuation |
Electric |
| Valve function |
2x3/2-way, monostable, closed2x3/2-way, open, monostable2x3/2-way, open/closed, monostable5/2 bistable5/2-way, bistable, dominant5/2-way, monostable5/3-way, pressurised5/3 exhausted5/3 closed |
| Design |
Piston gate valve |
| Valve size |
26 |
| Max. standard nominal flow rate |
550 l/min at 18 mm1100 l/min at 26 mm |
| Width |
18 mm26 mm |
| Suitability for vacuum |
yes |
| Exhaust-air function |
Via throttle plate |
| pneumatic working port |
G1/8G1/4G3/8G1/2QS-8QS-10QS-12QS-16 |
| Permissible voltage fluctuations |
-15%/+10% |
