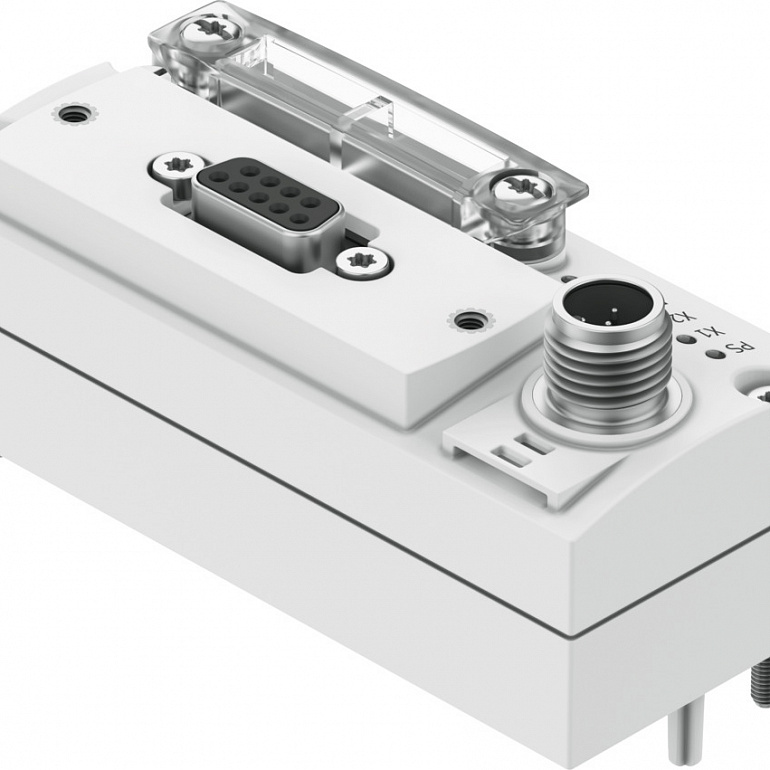

| Technical Data |
|
| Protocol |
Profibus DP |
| Dimensions (W x L x H) |
40 x 91 x 50 mm |
| Grid dimension |
40 |
| Type of mounting |
On electrical interfaceOn electrical sub-base |
| Product weight |
90 |
| Ambient temperature |
-550 |
| Storage temperature |
-2070 |
| Degree of protection |
IP65IP67 |
| Note on degree of protection |
In assembled stateUnused connections sealed |
| Corrosion resistance class CRC |
2 - Moderate corrosion stress |
| LABS (PWIS) conformity |
VDMA24364 zone III |
| CE mark (see declaration of conformity) |
To EU EMC DirectiveIn accordance with EU RoHS Directive |
| UKCA marking (see declaration of conformity) |
To UK instructions for EMCTo UK RoHS instructions |
| KC mark |
KC-EMV |
| Approval |
RCM trademarkc UL us listed (OL) |
| Note on materials |
RoHS-compliant |
| Material housing |
PA |

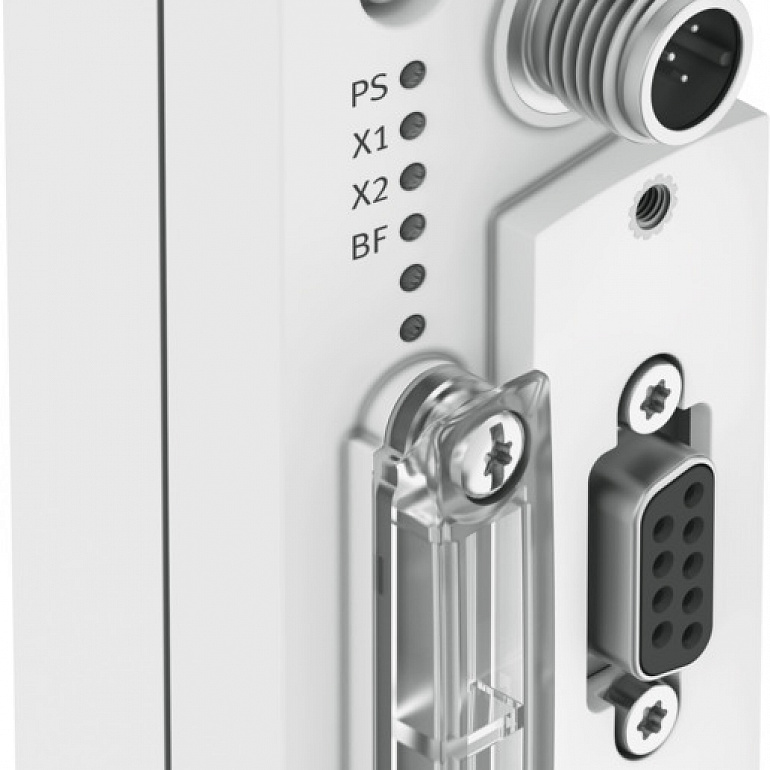

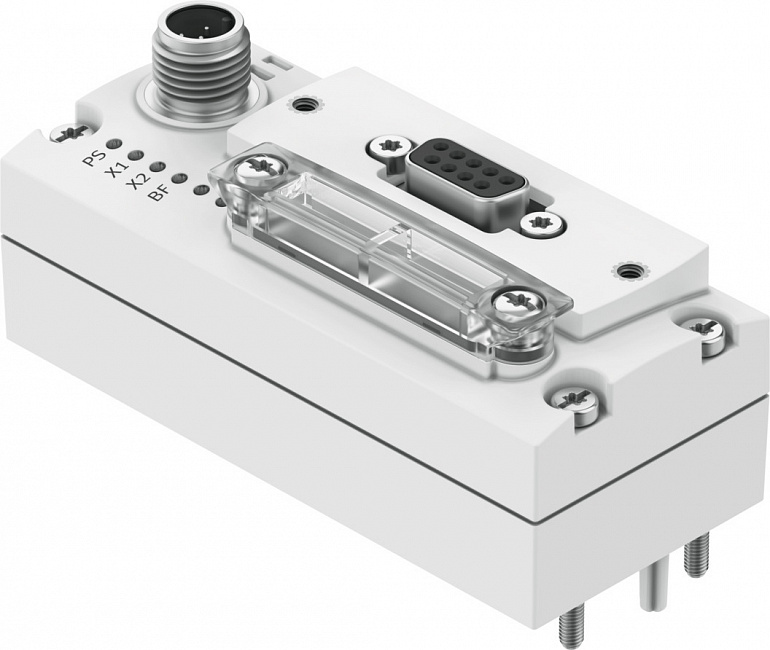

| LED display, product-specific |
PS: Operating voltage for electronics and load supplyX1: System status of module at I-Port 1X2: System status of module at I-Port 2 |
| LED display, bus-specific |
BF: Bus fault |
| Diagnosis |
Communication faultSystem diagnosticsUndervoltage |
| Operator controls |
DIL switch |
| Note on fieldbus interface |
Plug/socket M12x1 B-coded, 5-pin, IP65 protectionOptional connection technology with accessories: |
| Fieldbus interface |
PROFIBUS |
| Field bus, protocol |
PROFIBUS DP |
| Fieldbus interface, function |
Bus connection incoming/outgoing |
| Field bus, connection type |
Socket |
| Field bus, connection system |
Sub-D |
| Fieldbus interface, connection pattern |
00995638 |
| Field bus, connection pattern |
9 |
| Field bus interface, electrical isolation |
yes |
| Field bus interface, transmission rate |
1.5 Mbps12 Mbit/s187.5 kbit/s19.2 kbit/s500 kbit/s9.6 kbit/s93.75 kbit/s |
| Max. address volume, inputs |
16 |
| Max. address volume, outputs |
16 |
| Parameterisation |
Diagnostic behaviourFail-safe response |
| Internal cycle time |
1 ms per 1 byte of user data |
| Configuration support |
GSD file |
| Additional functions |
Emergency messageSystem status via diagnostic test |
| Power supply, function |
Electronics and load |
| Power supply, connection type |
Plugs |
| power supply, connection system |
M12x1, A-coded according to EN 61076-2-101 |
| Power supply, connection pattern |
00995383 |
| Power supply, number of pins/wires |
5 |
| Operational voltage range DC |
1830 |
| Nominal operating voltage DC |
24 |
| Max. power supply |
4 |
| Intern power consumption nominal operating voltage |
Typically 100 mA |
