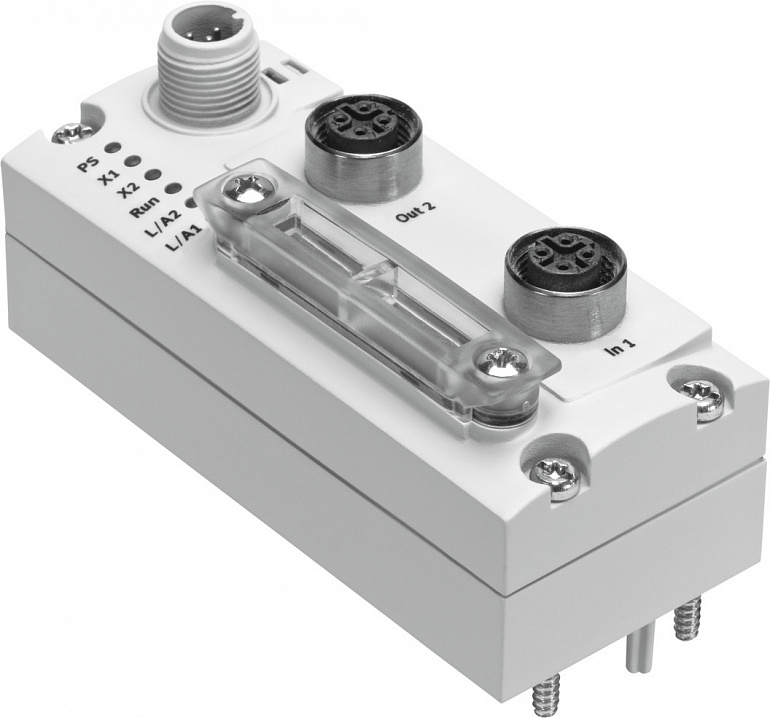

| Technical Data |
|
| Protocol |
EtherCAT |
| Dimensions (W x L x H) |
40 x 91 x 50 mm |
| Grid dimension |
40 |
| Type of mounting |
On electrical interfaceOn electrical sub-base |
| Product weight |
90 |
| Ambient temperature |
-550 |
| Storage temperature |
-2070 |
| Degree of protection |
IP65IP67 |
| Note on degree of protection |
In assembled stateUnused connections sealed |
| Corrosion resistance class CRC |
2 - Moderate corrosion stress |
| LABS (PWIS) conformity |
VDMA24364 zone III |
| CE mark (see declaration of conformity) |
To EU EMC DirectiveIn accordance with EU RoHS Directive |
| UKCA marking (see declaration of conformity) |
To UK instructions for EMCTo UK RoHS instructions |
| KC mark |
KC-EMV |
| Approval |
RCM trademarkc UL us listed (OL) |
| Note on materials |
RoHS-compliant |
| Material housing |
PA |
| LED display, product-specific |
PS: Operating voltage for electronics and load supplyX1: System status of module at I-Port 1X2: System status of module at I-Port 2 |
| LED display, bus-specific |
L/A1: Network active port 1L/A2: Network active port 2Run: Communication status |
| Diagnosis |
Communication faultSystem diagnosticsUndervoltage |
| Operator controls |
DIL switch |
| Fieldbus interface |
Ethernet |
| Field bus, protocol |
EtherCAT® |
| Fieldbus interface, function |
Bus connection incoming/outgoing |
| Field bus, connection type |
2x socket |
| Field bus, connection system |
M12x1, D-coded to EN 61076-2-101 |
| Fieldbus interface, connection pattern |
00995716 |
| Field bus, connection pattern |
4 |
| Field bus interface, electrical isolation |
yes |
| Field bus interface, transmission rate |
100 Mbit/s |
| Max. address volume, inputs |
16 |
| Max. address volume, outputs |
16 |
| Parameterisation |
Activate diagnosticsFail-safe and idle response |
| Internal cycle time |
1 ms per 1 byte of user data |
| Configuration support |
XML file |
| Additional functions |
Acyclic data access via SDODiagnostics objectEmergency messageModular device profile (MDP) |
| Power supply, function |
Electronics and load |
| Power supply, connection type |
Plugs |
| power supply, connection system |
M12x1, A-coded according to EN 61076-2-101 |
| Power supply, connection pattern |
00995383 |
| Power supply, number of pins/wires |
5 |
| Operational voltage range DC |
1830 |
| Nominal operating voltage DC |
24 |
| Max. power supply |
4 |
| Intern power consumption nominal operating voltage |
Typ. 60 mA |
