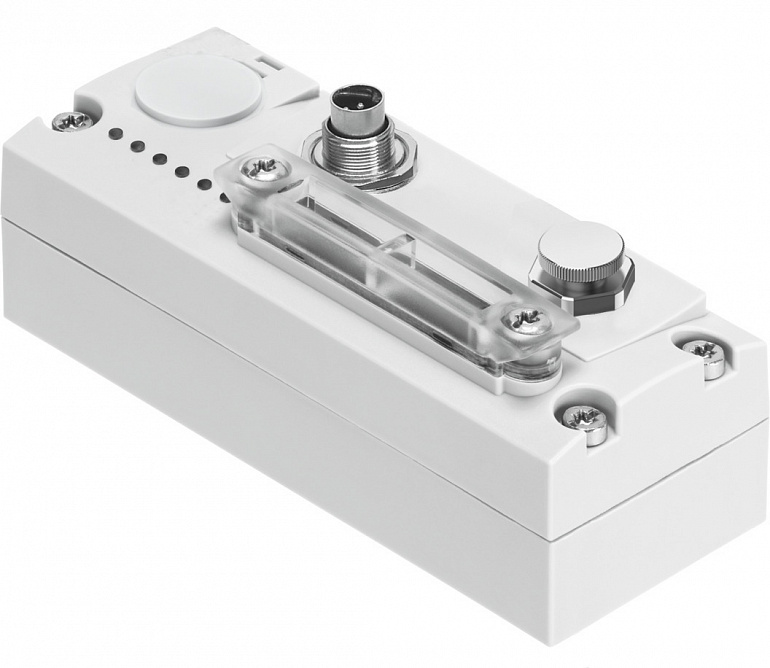

| Technical Data |
|
| Protocol |
CPI-B |
| Dimensions (W x L x H) |
40 x 91 x 50 mm |
| Grid dimension |
40 |
| Type of mounting |
On electrical interfaceOn electrical sub-base |
| Product weight |
105 |
| Ambient temperature |
-550 |
| Storage temperature |
-2070 |
| Degree of protection |
IP65IP67 |
| Note on degree of protection |
In assembled stateUnused connections sealed |
| Corrosion resistance class CRC |
2 - Moderate corrosion stress |
| LABS (PWIS) conformity |
VDMA24364 zone III |
| CE mark (see declaration of conformity) |
To EU EMC DirectiveIn accordance with EU RoHS Directive |
| UKCA marking (see declaration of conformity) |
To UK instructions for EMCTo UK RoHS instructions |
| KC mark |
KC-EMV |
| Approval |
RCM trademarkc UL us listed (OL) |
| Note on materials |
RoHS-compliant |
| Material housing |
PA |
| LED display, product-specific |
PS: Operating voltage for electronics and load supplyX1: System status of module at I-Port 1X2: System status of module at I-Port 2 |
| LED display, bus-specific |
RUN: Communication OK |
| Diagnosis |
Communication faultSystem diagnosticsUndervoltage |
| Operator controls |
DIL switch |
| Fieldbus interface |
CP installation system |
| Field bus, protocol |
CPI-B |
| Fieldbus interface, function |
Incoming bus connectionPower supply |
| Field bus, connection type |
Plugs |
| Field bus, connection system |
M9x0.5 |
| Fieldbus interface, connection pattern |
00992012 |
| Field bus, connection pattern |
5 |
| Field bus interface, transmission rate |
1000 kbit/s |
| Fieldbus interface 2, function |
Outgoing bus connectionPower supply |
| Fieldbus interface 2, connection type |
Socket |
| Fieldbus interface 2, connection technology |
M9x0.5 |
| Fieldbus interface 2, connection pattern |
00995398 |
| Fieldbus interface 2, number of pins/wires |
5 |
| Max. address volume, inputs |
4 |
| Max. address volume, outputs |
4 |
| Parameterisation |
Diagnostic behaviourFail-safe response |
| Internal cycle time |
2 ms per 2 byte of user data |
| Configuration support |
None |
| Operational voltage range DC |
1830 |
| Nominal operating voltage DC |
24 |
| Max. power supply |
3.4 |
| Intern power consumption nominal operating voltage |
Typ. 50 mA |
| Power failure bridging |
10 |
