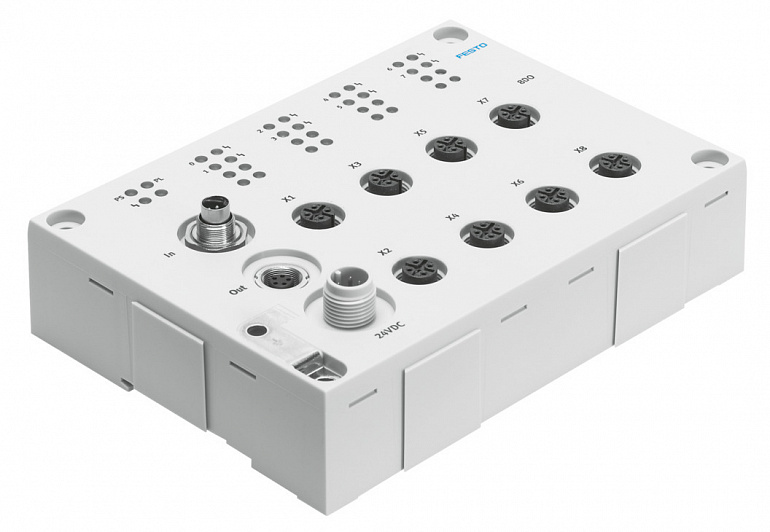

SKU: 546924

GTIN: 4052568185572

Все характеристики

Technical Data
Type of mounting	Either:With through-holeWith H-rail
Ambient temperature	-550
Storage temperature	-2070
Degree of protection	IP65IP67
Corrosion resistance class CRC	1 - Low corrosion stress
LABS (PWIS) conformity	VDMA24364-B2-L
CE mark (see declaration of conformity)	To EU EMC DirectiveIn accordance with EU RoHS Directive
UKCA marking (see declaration of conformity)	To UK instructions for EMCTo UK RoHS instructions
KC mark	KC-EMV
Approval	RCM trademarkc UL us listed (OL)
Note on materials	RoHS-compliant
Material housing	PA-reinforced
Material cover	PA-reinforced
LED display	3 Module diagnostics8 channel diagnostics8 Channel status
Max. number of outputs	8
Operational voltage range DC	1830
Nominal operating voltage DC	24
Operating voltage DC load voltage	24
Note on load voltage	Via load voltage connection (24 V DC)
Residual ripple, load voltage	4 Vpp
Characteristic for outputs	IEC1131-T2
Switching logic for outputs	PNP (positive switching)
Max. total current per module	4
Isolation channel - channel	no
Fuse protection (short circuit)	Internal electronic fuse protection for each group
