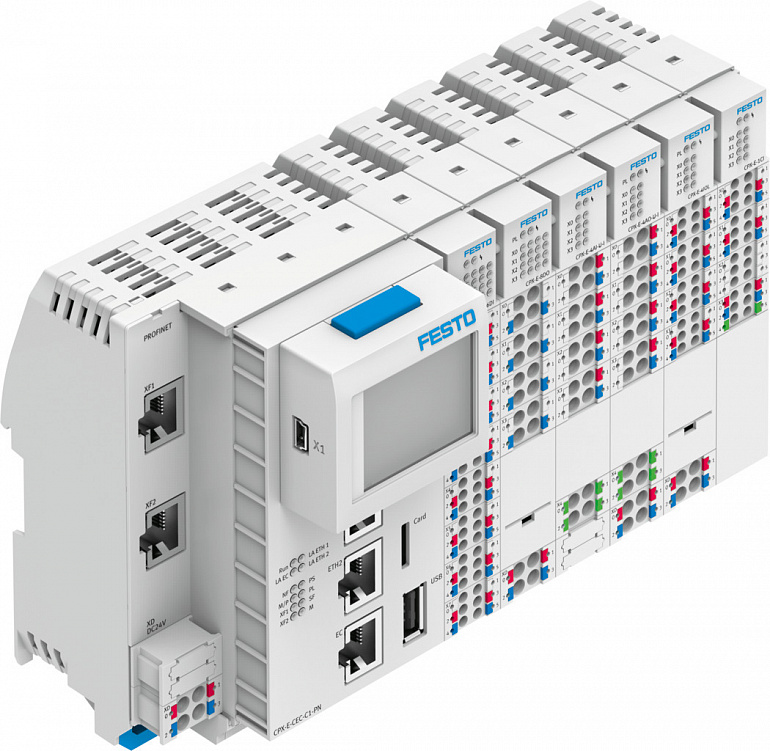

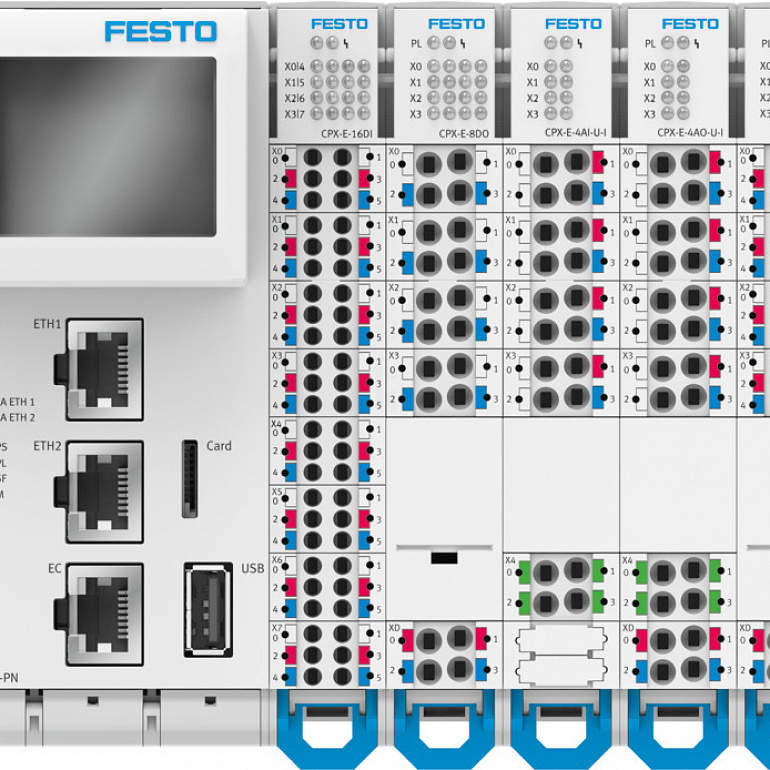

| Technical Data |
|
| Electrical control |
FieldbusIntegrated controller |
| Grid dimension |
18.9 |
| Type of mounting |
With H-rail |
| Max. number of modules |
10 |
| Mounting position |
VerticalHorizontal |
| Ambient temperature |
-550 |
| Note on ambient temperature |
-5 - 60°C for vertical installation |
| Storage temperature |
-2070 |
| Relative air humidity |
95 %Non-condensing |
| Degree of protection |
IP20 |
| Corrosion resistance class CRC |
0 - No corrosion stress |
| Vibration resistance |
Transport application test with severity level 1 to FN 942017-4 and EN 60068-2-6 |
| Shock resistance |
Shock test with severity level 1 to FN 942017-5 and EN 60068-2-27 |
| Protection against direct and indirect contact |
PELV |
| LABS (PWIS) conformity |
VDMA24364 zone III |
| CE mark (see declaration of conformity) |
To EU EMC DirectiveIn accordance with EU RoHS Directive |
| UKCA marking (see declaration of conformity) |
To UK instructions for EMCTo UK RoHS instructions |
| KC mark |
KC-EMV |
| Approval |
RCM trademarkc UL us listed (OL) |
| Certificate issuing authority |
UL E239998 |
| Note on materials |
RoHS-compliant |
| Material housing |
PA |
| Diagnosis |
Module-specificVia busVia LED |
| Max. address volume, inputs |
64 |
| Max. address volume, outputs |
64 |
| Internal cycle time |
< 1 ms |
| Nominal DC operating voltage, electronics/sensors |
24 |
| Permissible voltage fluctuations for electronics/sensors |
± 25% |
| Max. power supply |
8 |
| Power failure bridging |
10 |
| Reverse polarity protection |
yes |
