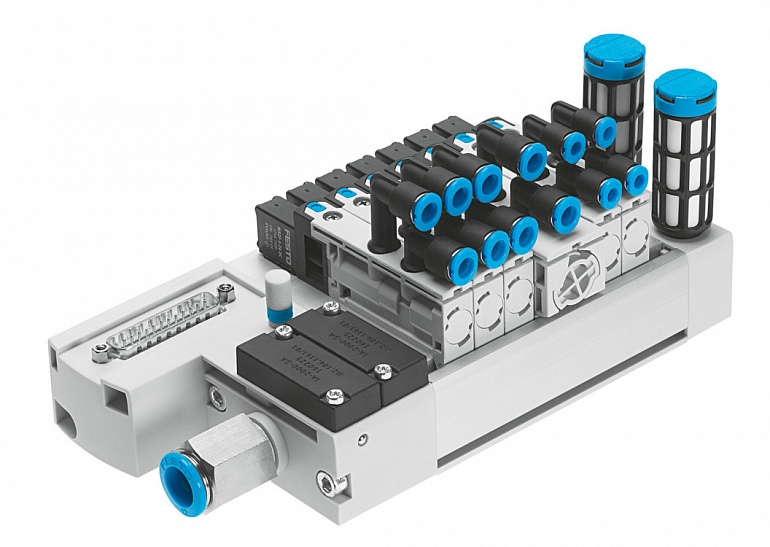

| Technical Data |
|
| Electrical control |
FieldbusMulti-pin plug |
| Electrical I/O system |
no |
| Terminal type |
23 |
| Operating medium |
Compressed air to ISO 8573-1:2010 [7:4:4] |
| Note on operating and pilot medium |
Lubricated operation possible (in which case lubricated operation will always be required) |
| Media temperature |
-560 |
| Ambient temperature |
-560 |
| Degree of protection |
IP65 |
| Corrosion resistance class CRC |
0 - No corrosion stress |
| Protection against direct and indirect contact |
PELV |
| Operating pressure |
2.88 |
| Note on operating pressure |
0 - 8 bar with external pilot air |
| LABS (PWIS) conformity |
VDMA24364-B1/B2-L |
| CE mark (see declaration of conformity) |
To EU EMC Directive |
| UKCA marking (see declaration of conformity) |
To UK instructions for EMCTo UK RoHS instructions |
| KC mark |
KC-EMV |
| Material seals |
NBRTPE-U(PU) |
| Valve terminal structure |
Fixed grid |
| Max. number of valve positions |
35 |
| Max. number of pressure zones |
18 |
| Type of actuation |
Electric |
| Valve function |
3/2-way, closed, monostable3/2 open, monostable5/2 bistable5/2-way, monostable |
| Valve size |
12 |
| Max. standard nominal flow rate |
400 l/min at 12 mm |
| Width |
12 mm24 mm |
| Nominal size |
3 |
| Exhaust-air function |
Without flow control option |
| pneumatic working port |
QS-4QS-6QS-5/32QS-1/4 |
| Nominal operating voltage DC |
24 |
| Permissible voltage fluctuations |
+/- 10 % |
