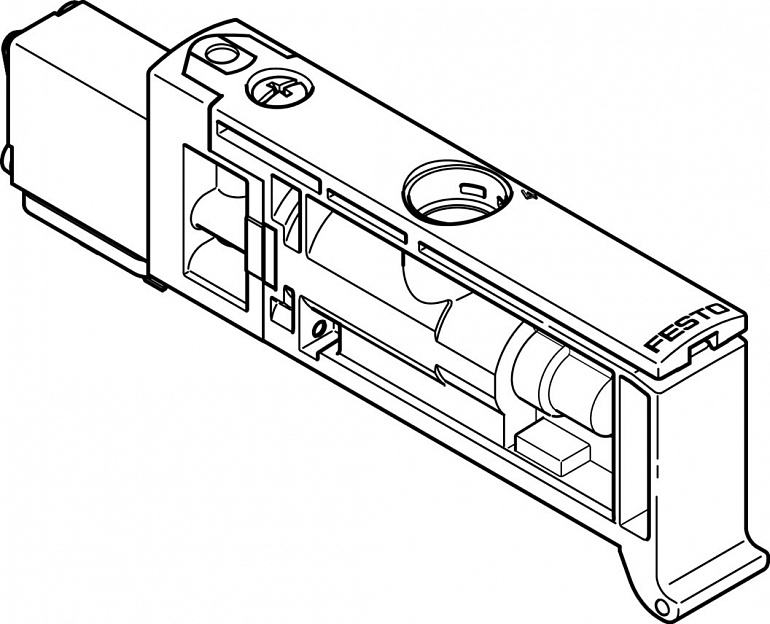

SKU: 575997
GTIN: 4052568104238
Характеристики
| Valve function | 3/2-way, closed, monostable |
| Standard nominal flow rate (standardised to DIN 1343) | 240, 400 |
| Pneumatic connection, port 1 | Sub-base |
| Type of actuation | Electric |
Все характеристики
| Technical Data | |
| Valve function | 3/2-way, closed, monostable |
| Type of actuation | Electric |
| Valve size | 12 |
| Standard nominal flow rate (standardised to DIN 1343) | 240400 |
| pneumatic working port | QS-4QS-6 |
| Operating pressure | 28 |
| Design | Poppet valve with spring return |
| Degree of protection | IP65 |
| Nominal size | 4 |
| Exhaust-air function | Without flow control option |
| Sealing principle | Soft |
| Mounting position | optional |
| Manual override | Non-detenting |
| Type of piloting | Pilot actuated |
| Pilot air supply | External |
| Flow direction | Non-reversible |
| Symbol | 00992123 |
| Note on operating pressure | 0 - 0.8 MPa with ext. pilot air0 - 8 bar with external pilot air |
| Pilot pressure | 28 |
| Switching time off | 14 |
| Switching time on | 6 |
| Duty cycle | 100% |
| Max. positive test pulse with 0 signal | 800 |
| Max. negative test pulse with 1 signal | 300 |
| Characteristic coil data | 24 V DC: 1.0 W |
| Permissible voltage fluctuations | +/- 10 % |
| Operating medium | Compressed air to ISO 8573-1:2010 [7:4:4] |
| Note on operating and pilot medium | Lubricated operation possible (in which case lubricated operation will always be required) |
| Vibration resistance | Transport application test with severity level 1 to FN 942017-4 and EN 60068-2-6 |
| Shock resistance | Shock test with severity level 1 to FN 942017-5 and EN 60068-2-27 |
| Corrosion resistance class CRC | 0 - No corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Media temperature | -560 |
| Sound pressure level | 85 |
| Ambient temperature | -560 |
| Product weight | 26.3 |
| Electrical connection | Via sub-base |
| Type of mounting | On sub-base |
| Auxiliary pilot air port 14 | Sub-base |
| Pneumatic connection, port 1 | Sub-base |
| Pneumatic connection, port 3 | Sub-base |
| Pneumatic connection, port 5 | Sub-base |
| Note on materials | RoHS-compliant |
| Material seals | NBRTPE-U(PU) |
| Material housing | PA-reinforced |
| Material piston slide | Wrought aluminium alloy |
