| Technical Data |
|

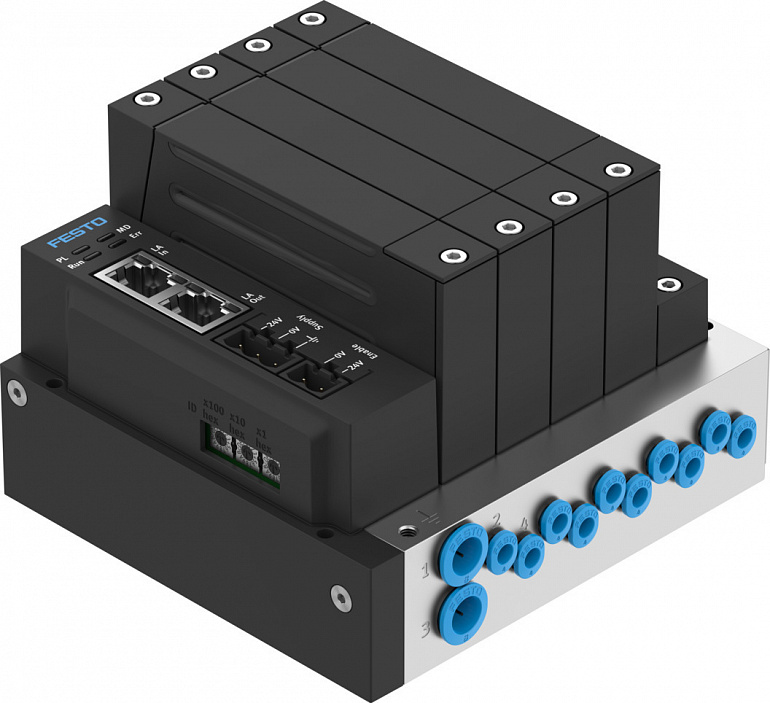

| Valve terminal structure |
Fixed grid |
| Grid dimension |
16 |
| Max. number of valve positions |
5 |
| Dimensions (W x L x H) |
71 mm x 110 mm x 82 mm87 mm x 110 mm x 82 mm |
| Instructions on use |
The product is suitable for industrial purposes only. Measures to eliminate radio interference may be required in residential areas.For indoor use only |
| Max. number of pressure zones |
1 |
| Degree of protection |
IP20 |
| LABS (PWIS) conformity |
VDMA24364 zone III |
| Suitability for the production of Li-ion batteries |
Metals with more than 5% by mass of copper, zinc or nickel by mass are excluded from use. Exceptions are nickel in steel, chemically nickel-plated surfaces, printed circuit boards, cables, electrical plug connectors and coils |
| Cleanroom class |
Class 3 according to ISO 14644-1 |
| Pollution degree |
2 |
| Note on materials |
RoHS-compliant |
| Material seals |
NBR |
| Fire test material |
UL94 HB |
| Nominal altitude of use |
< 3000 m NHN |
| Operating medium |
Compressed air to ISO 8573-1:2010 [7:4:4]Inert gasesOxygen |
| Inlet pressure 1 |
0101.5 |
| Input pressure 3 |
-14.50 |
| Operating pressure |
29101.5 |
| Pressure regulation range |
-14.587 |
| Burst pressure |
304.5 |
| Valve function |
3-way proportional-pressure regulator, closed |
| Type of actuation |
Electric |
| Sealing principle |
Soft |
| Standard flow rate (standardised to DIN 1343) |
1842 |
| Flow direction |
Non-reversible |
| Suitability for vacuum |
yes |
| Reverse polarity protection |
For all electrical connections |
| Display type |
LED |
| Setpoint value input |
Digital |
| Field bus, connection type |
2x socket |
| Field bus, connection system |
RJ45 |
| Field bus, protocol |
EtherCAT® |
| Electrical connection 1, function |
Power supply |
| Electrical connection 1, connection type |
Socket |
| Electrical connection 1, connector system |
Terminal strip |
| Electrical connection 1, number of connections/cores |
3 |
| Electrical connection 1, connection pattern |
00997272 |
| Electrical connection 1, conductor cross section |
0.21.5 |
| Electrical connection 2, function |
Digital input |
| Electrical connection 2, connection type |
Socket |
| Electrical connection 2, connector system |
Terminal strip |
| Electrical connection 2, number of connections/cores |
2 |
| Electrical connection 2, connection pattern |
00997542 |
| Electrical connection 2, conductor cross section |
0.21.5 |
| Overvoltage category |
II |
| Nominal operating voltage DC |
24 |
| Operational voltage range DC |
20.427.6 |
| Protection against direct and indirect contact |
PELV |
| Max. electrical power consumption |
6 |
| Residual ripple |
± 10% |
| Buffer time for voltage failure of logic supply |
10 |
| Approval |
RCM trademark |
| KC mark |
KC-EMV |
| CE mark (see declaration of conformity) |
To EU EMC DirectiveIn accordance with EU RoHS Directive |
| UKCA marking (see declaration of conformity) |
To UK instructions for EMCTo UK RoHS instructions |
| Corrosion resistance class CRC |
2 - Moderate corrosion stress |
| Storage temperature |
-2060 |
| Media temperature |
550 |
| Ambient temperature |
550 |
| Relative air humidity |
5 - 85 %Non-condensing |
| Climatic category |
3K22 to EN 60721 |
| Vibration resistance |
Transport application test with severity level 2 to FN 942017-4 and EN 60068-2-6 |
| Shock resistance |
Shock test with severity level 2 to FN 942017-5 and EN 60068-2-27 |
| Linearity |
0.40.9 |
| Hysteresis |
0.40.5 |
| Reproducibility |
0.30.4 |
| Total accuracy |
0.65 %FS1.1%FS |
| Pneumatic connection, port 2 |
For tubing outside diameter of 4 mm |
| Pneumatic connection, port 4 |
For tubing O.D. 4 mm |
| Pneumatic connection, port 1 |
For tubing outer diameter of 8 mm |
| Pneumatic connection, port 3 |
For tubing O.D. 8 mm |
