| Technical Data |
|
| Design |

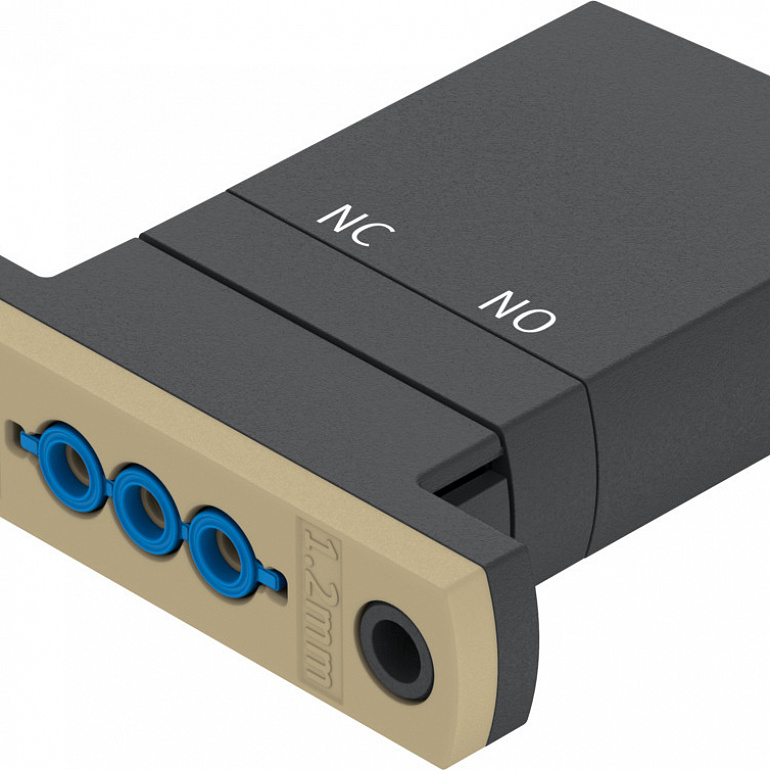

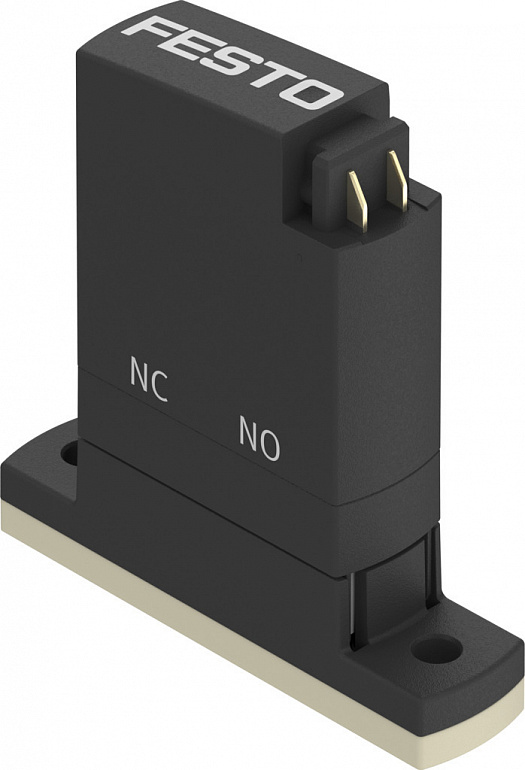

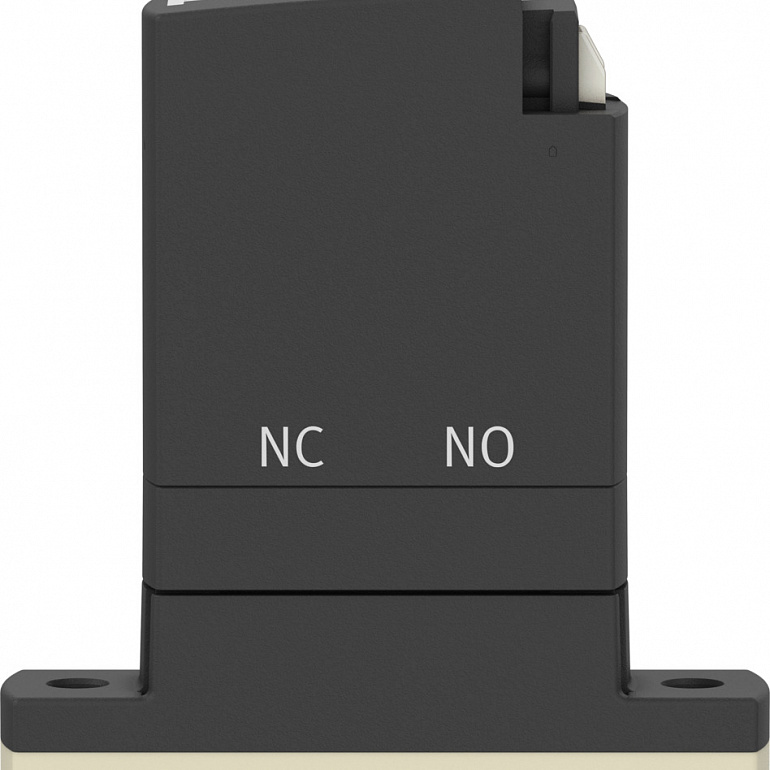

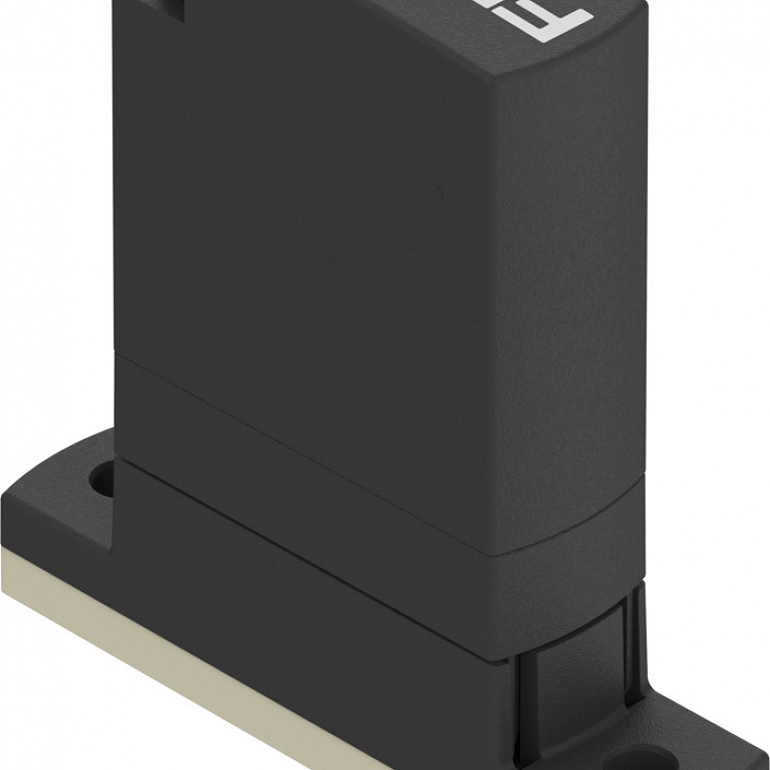

Rocker valve with diaphragm seal |
| Sealing principle |
Soft |
| Material in contact with the medium |
PEEK |
| Suitable for use with food |
See supplementary material information |
| Valve function |
2/2 open, monostable |
| Nominal size |
1.2 |
| Flow direction |
Reversible with restrictions |
| Type of actuation |
Electric |
| Type of piloting |
Direct |
| Type of reset |
Mechanical spring |
| Manual override |
None |
| Mounting position |
optional |
| Type of mounting |
Via through-hole for M2 screw |
| Electrical connection 1, connection type |
Socket |
| Electrical connection 1, connector system |
Connection pattern Q7 |
| Electrical connection 1, number of connections/cores |
2 |
| Electrical connection 1, connection pattern |
00997312 |
| Size |
7 |
| Grid dimension |
7.5 |
| Fluid connection |
Flange |
| Medium |
Liquid mediaGaseous media |
| Note on the medium |
Observe resistance of materials that come into contact with the mediaMaximum particle size 5 µm |
| Internal volume |
18 µl fluid chamber valve24 µl valve with fluid connections |
| Media temperature for fluids |
050 |
| Medium temperature gaseous media |
050 |
| Ambient temperature |
050 |
| Storage temperature |
-2070 |
| Medium pressure |
-7.2529 |
| Note on the medium pressure |
IN: -0.25 – 2 bar / -0.025 – 0.2 MPa / -3.625 – 29 psiOUT: -0.5 - 1 bar / -0.05 - 0.1 MPa / -7.25 - 14.5 psi |
| Pressure difference |
29 |
| Burst pressure |
333.5 |
| Operational voltage range DC |
1226 |
| Note on operational voltage range DC |
With electrical sub-base VAVE-K1-… |
| Permissible voltage fluctuations |
+/- 10 % |
| Electrical power consumption |
3.5 |
| Information on power consumption |
Low-current phase 0.3 W, high-current phase 3.5 W for 60 ms, in combination with VAVE-K1-… |
| Characteristic coil data |
12 - 26 V DC: low-current phase 0.06 W, high-current phase 2.2 W |
| Insulation material class |
B |
| Duty cycle |
100% in conjunction with holding current reductionObserve the notes on operating the solenoid valves. |
| Max. switching frequency |
6 |
| Note on switching frequency |
Dependent on the ambient temperature and installation stateAt 100% duty cycle depending on ambient temperature and installation condition. Higher switching frequencies possible with duty cycle < 100%. |
| Switch-off time for fluids |
5 |
| Switching time off gaseous media |
5 |
| Note on switching time |
Switching time depends on medium, temperature, medium pressure and individual operating conditions |
| Standard nominal flow rate (standardised to DIN 1343) |
10 |
| Note on standard nominal flow rate |
In case of a pressure drop of 1 -> 0 bar (gaseous media) |
| Flow rate Kv |
0.3 |
| Note on flow rate Kv |
For medium waterPressure difference 1 bar |
| Water flow rate at max. operating pressure |
0.024 m³/h0.40 l/min |
| Symbol |
00995700 |
| Material housing |
PA-reinforcedPEEKPPA reinforced |
| Material membrane |
EPDM |
| Material seals |
EPDM |
| Note on materials |
RoHS-compliant |
| LABS (PWIS) conformity |
VDMA24364 zone III |
| Product weight |
10.9 |
| Degree of protection |
IP40 |
| Note on degree of protection |
In assembled state |
| Instructions on use |
For indoor use only |
| Corrosion resistance class CRC |
0 - No corrosion stress |
