| Technical Data |
|
| Design |

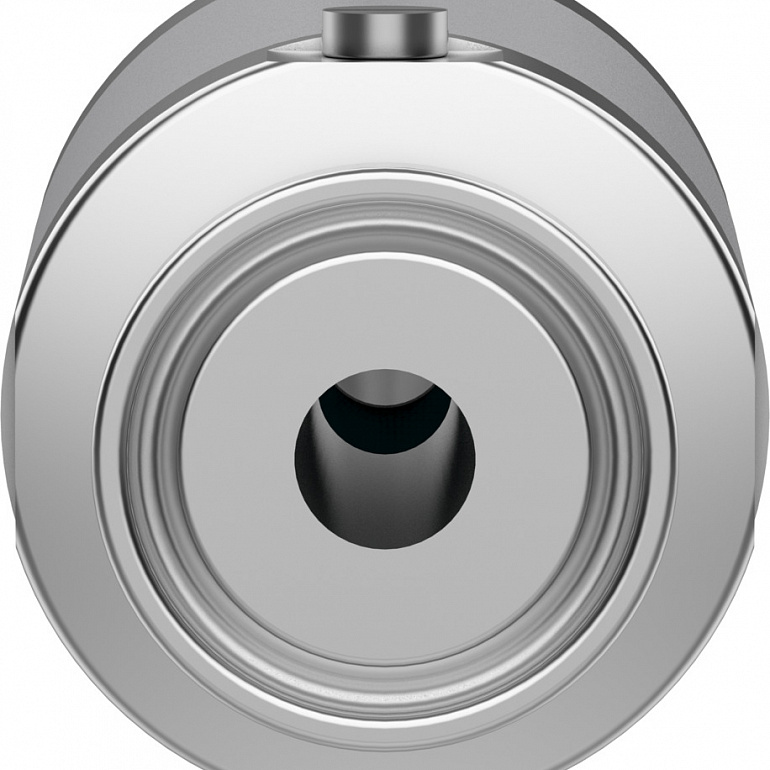

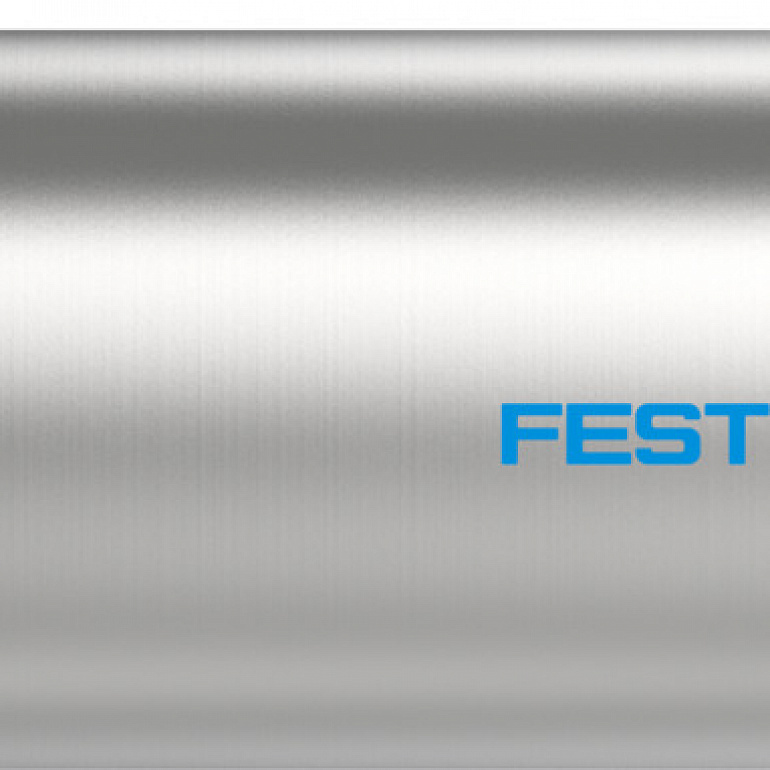

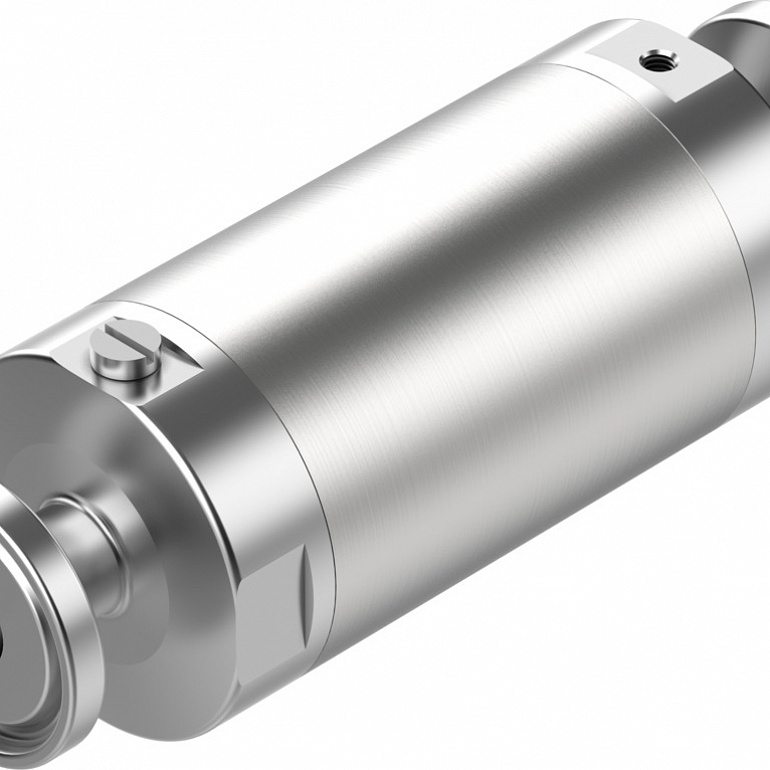

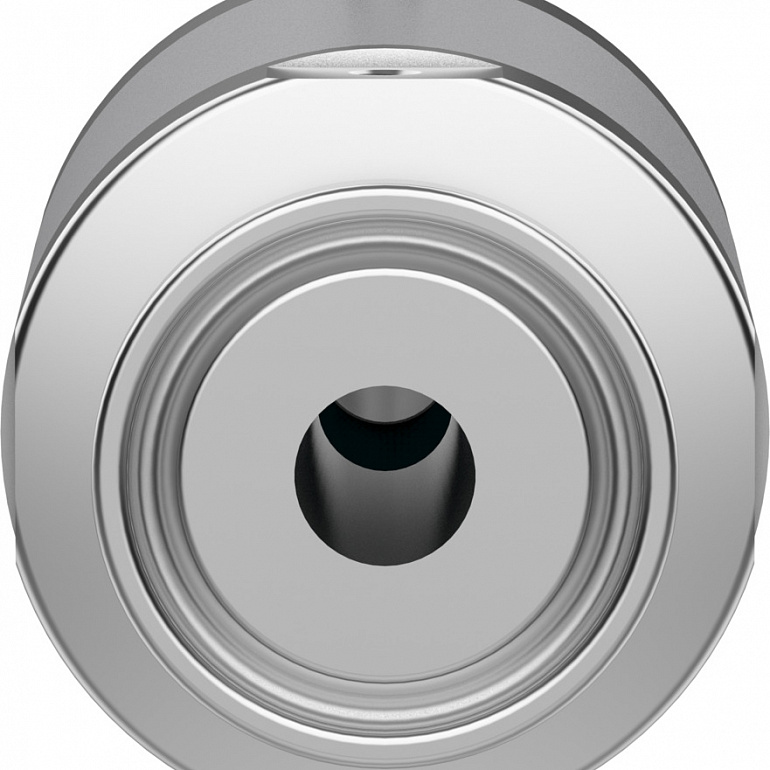

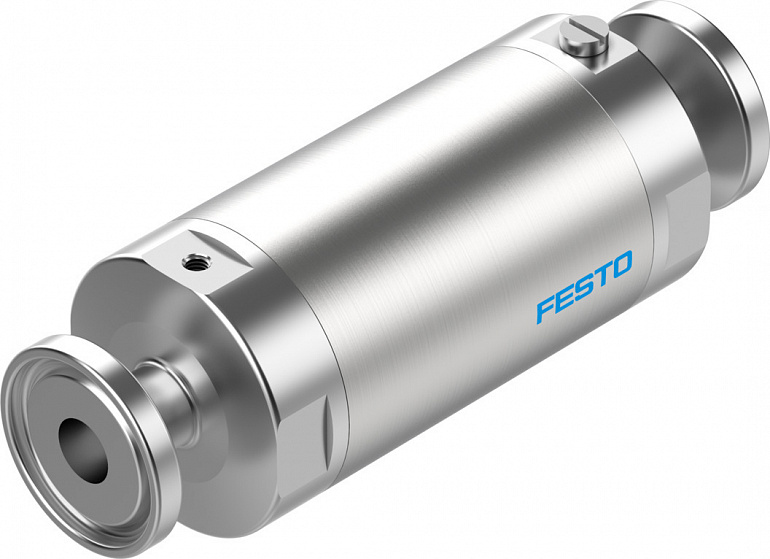

Pinch valve, pneumatically actuated |
| Type of actuation |
Pneumatic |
| Sealing principle |
Soft |
| Mounting position |
optional |
| Type of mounting |
In-line installation |
| Connection Process valve |
Clamp to ASME-BPE, type A |
| Nominal size DN |
6 |
| Valve function |
2/2-way, closed, monostable |
| Flow direction |
Reversible |
| Medium pressure |
058 |
| Note on the medium pressure |
Use in the vacuum range was tested up to -0.09 MPa with the air at room temperature. Depending on the application, a counter-vacuum may have to be created on the control side to guarantee the media flow. |
| Operating pressure |
50.7587 |
| Nominal pressure PN |
10 |
| Burst pressure |
232 |
| Type of reset |
Mechanical spring |
| Type of piloting |
Externally controlled |
| Auxiliary pilot air port 12 |
M3 |
| Pilot medium |
Compressed air to ISO 8573-1:2010 [7:4:1] |
| Symbol |
00992981 |
| Medium |
Compressed air to ISO 8573-1:2010 [-:-:1]Water |
| Max. viscosity |
4000 |
| Media temperature |
-5100 |
| Ambient temperature |
-560 |
| Storage temperature |
520 |
| Flow rate Kv |
0.7 |
| Switching time on |
125 |
| Switching time off |
125 |
| Note on materials |
RoHS-compliant |
| LABS (PWIS) conformity |
VDMA24364 zone III |
| Material housing |
High-alloy stainless steel |
| Material number housing |
1.4301 |
| Material housing cover |
High-alloy stainless steel |
| Material number housing cover |
1.4404 / AISI 316L |
| Material seals |
FPM |
| Material shut-off element |
EPDM |
| Product weight |
302 |
| Suitable for use with food |
See supplementary material information |
| Material bowl |
PPS |
