| Technical Data |
|
| Design |

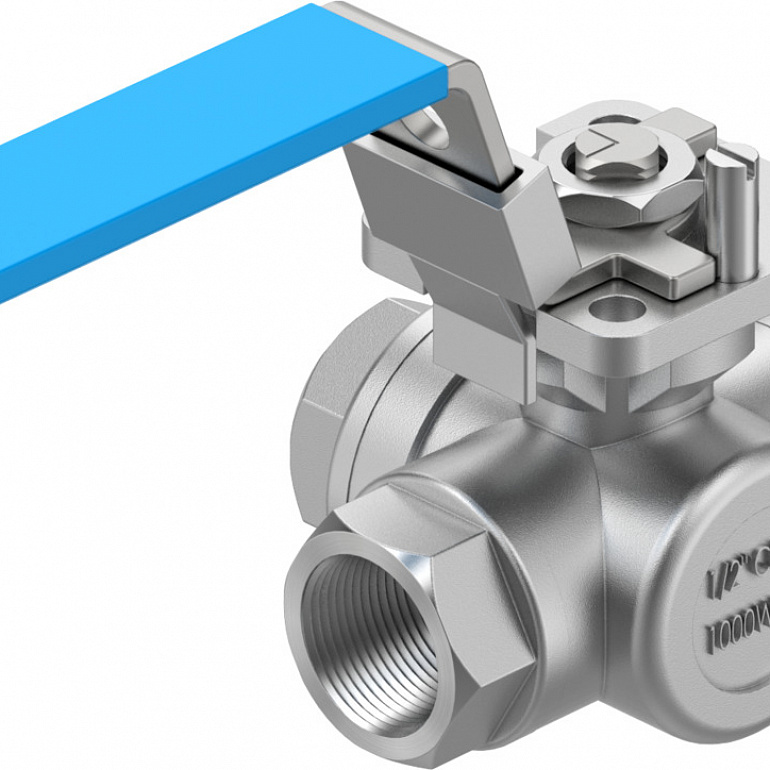

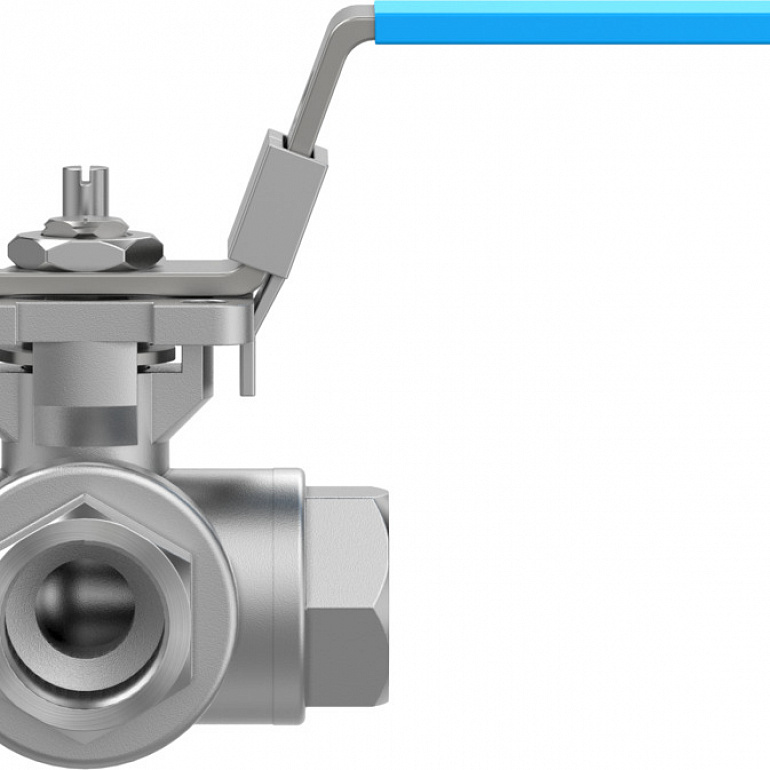

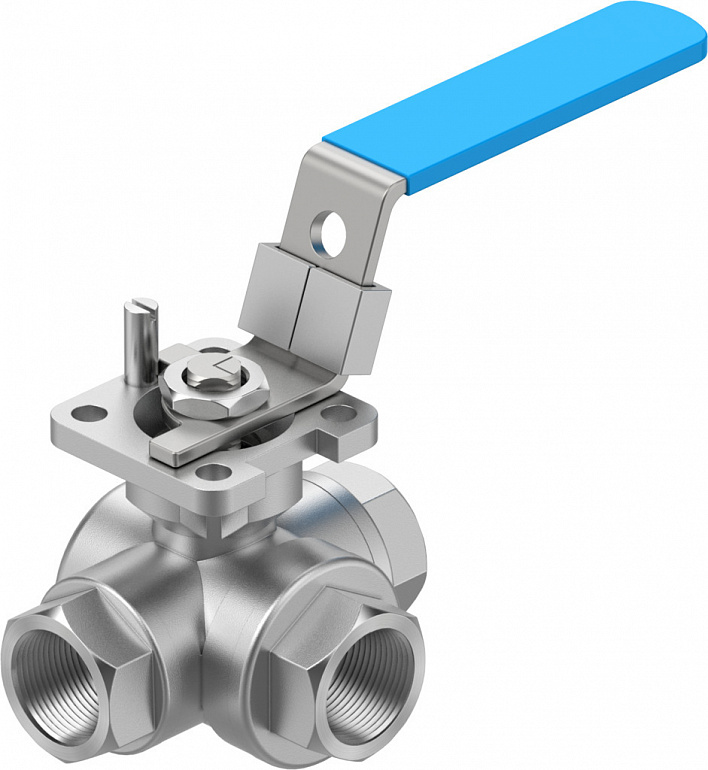

3-way ball valveL-hole |
| Type of actuation |
Mechanical |
| Sealing principle |
Soft |
| Mounting position |
optional |
| Type of mounting |
In-line installation |
| Connection Process valve |
1/2 NPT |
| Switching position indicator |
Slot direction = flow direction |
| Flange hole pattern |
F04 |
| Inside diameter |
12.7 |
| Nominal size DN |
15 |
| Valve function |
3/2 |
| Flow direction |
Reversible |
| Nominal pressure PN |
63 |
| Breakaway torque at differential pressure, nominal pressure, process valve PN |
9.6 |
| Based on standard |
ASME B1.20.1ISO 5211 |
| Symbol |
00991888 |
| Medium |
VapourCompressed air to ISO 8573-1:2010 [-:-:-]Inert gasesWaterNeutral fluids |
| Media temperature |
-20200 |
| Flow rate Kv L hole |
2.5 |
| Note on materials |
RoHS-compliant |
| LABS (PWIS) conformity |
VDMA24364 zone III |
| Material housing |
Stainless steel casting |
| Material number housing |
1.4408 |
| Material seat seal |
PTFE |
| Material seals |
PTFE |
| Material ball |
Stainless steel casting |
| Material number ball |
1.4408 |
| Material shaft |
High-alloy stainless steel |
| Material number shaft |
1.4401 |
| Product weight |
700 |
| Approval |
CRN |
| Explosion protection |
Zone 1 (ATEX)Zone 2 (ATEX)Zone 21 (ATEX)Zone 22 (ATEX) |
| Corrosion resistance class CRC |
4 - Very high corrosion stress |
