| Technical Data |
|
| Design |

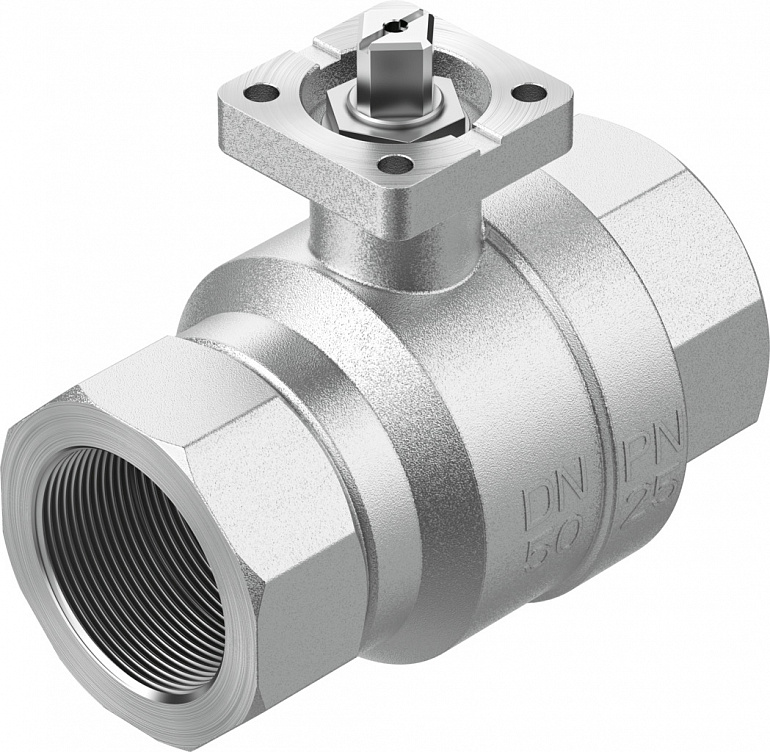

2-way ball valve |
| Type of actuation |
Mechanical |
| Sealing principle |
Soft |
| Mounting position |
optional |
| Type of mounting |
In-line installation |
| Connection Process valve |
Rp1/2 |
| Switching position indicator |
Slot direction = flow direction |
| Flange hole pattern |
F03 |
| Inside diameter |
15 |
| Nominal size DN |
15 |
| Valve function |
2/2 |
| Flow direction |
Reversible |
| Nominal pressure PN |
40 |
| Breakaway torque at differential pressure, nominal pressure, process valve PN |
5 |
| Break-away torque at a differential pressure of 1 MPa (10 bar, 145 psi) |
3.5 |
| Based on standard |
ISO 5211 |
| Symbol |
00991458 |
| Medium |
Compressed air to ISO 8573-1:2010 [-:-:-]Inert gasesWaterNeutral fluids |
| Media temperature |
-20150 |
| Flow rate Kv |
17 |
| Note on materials |
RoHS-compliant |
| LABS (PWIS) conformity |
VDMA24364 zone III |
| Material housing |
Brass, nickel-plated |
| Material number housing |
2.0402CW617N |
| Material seat seal |
PTFE |
| Material seals |
HNBRPTFE |
| Material ball |
BrassHard-chrome-plated |
| Material number ball |
2.0401CW614N |
| Material shaft |
Brass |
| Material number shaft |
2.0401CW614N |
| Product weight |
400 |
| Corrosion resistance class CRC |
1 - Low corrosion stress |
