| Technical Data |
|
| Controller function |
Output pressure constantWith secondary ventingWith return flow function |
| Pneumatic connection, port 1 |
M5 |
| Pneumatic connection, port 2 |
QS-4 |
| Type of mounting |
Screw-in |
| Standard nominal flow rate (standardised to DIN 1343) |
80 |
| Ambient temperature |
060 |
| Material housing |
PBT |
| Operating medium |
Compressed air to ISO 8573-1:2010 [7:4:4] |
| Mounting position |
optional |
| Type of actuation |
Manual |
| Type of seal on screwed plug |
Sealing ring |
| Adjustment component |
Rotary knob with detent |

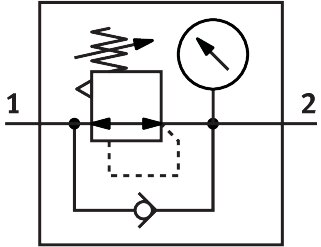

| Symbol |
00991558 |
| Rotatability |
360°/no continuous swivelling permissible |

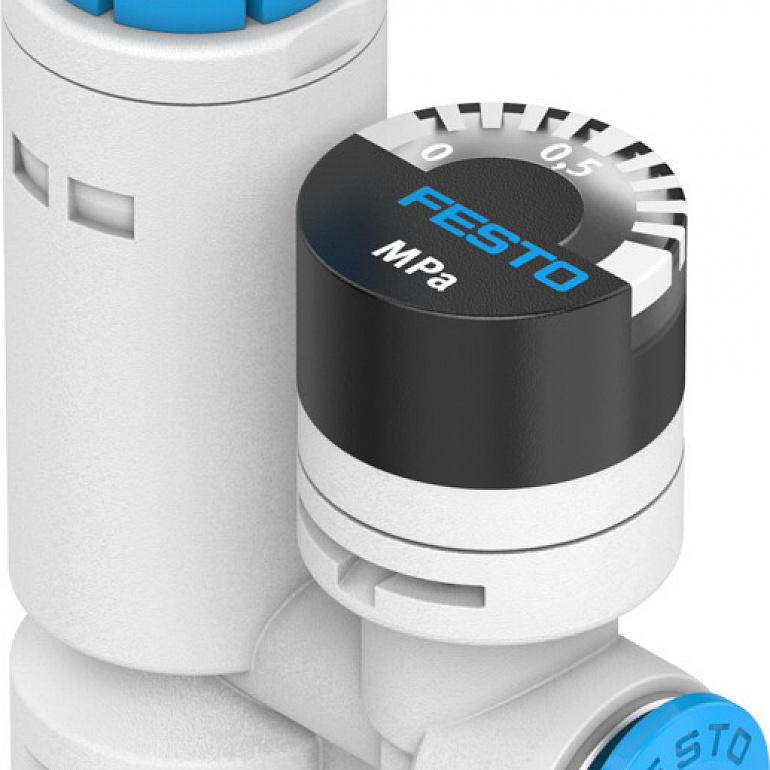

| Pressure gauge (ANALOG) or Pressure display (DIGITAL) |
With pressure gauge |
| Pressure regulation range |
14.5116 |
| Note on operating and pilot medium |
Lubricated operation possible (in which case lubricated operation will always be required) |
| LABS (PWIS) conformity |
VDMA24364-B2-L |
| Cleanroom class |
Class 4 according to ISO 14644-1 |
| Nominal torque |
0.8 |
| Tolerance for nominal tightening torque |
± 20% |
| Product weight |
29 |
| Material screwed plug |
Nickel-plated brass |
| Note on materials |
RoHS-compliant |
| Material static seals |
NBR |
