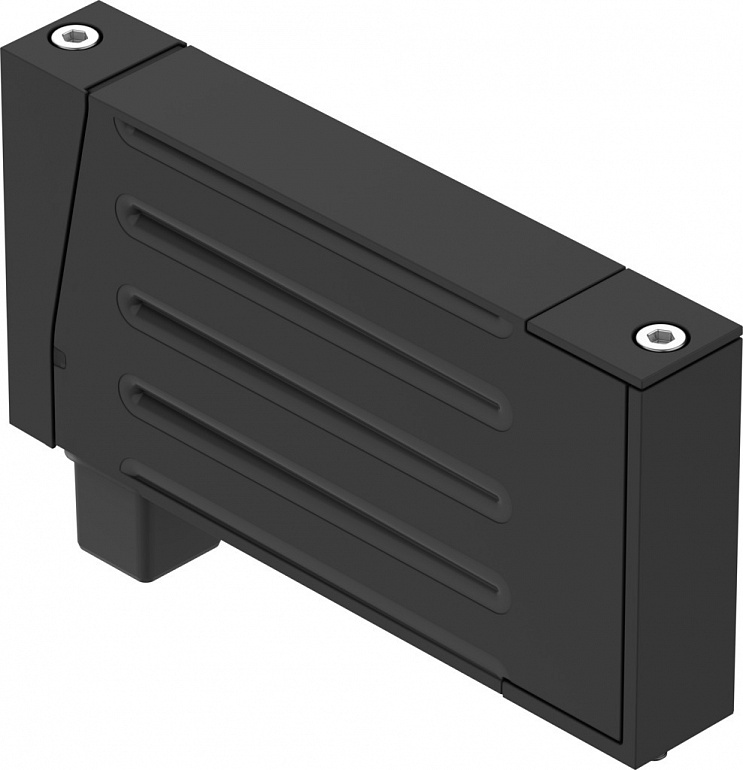

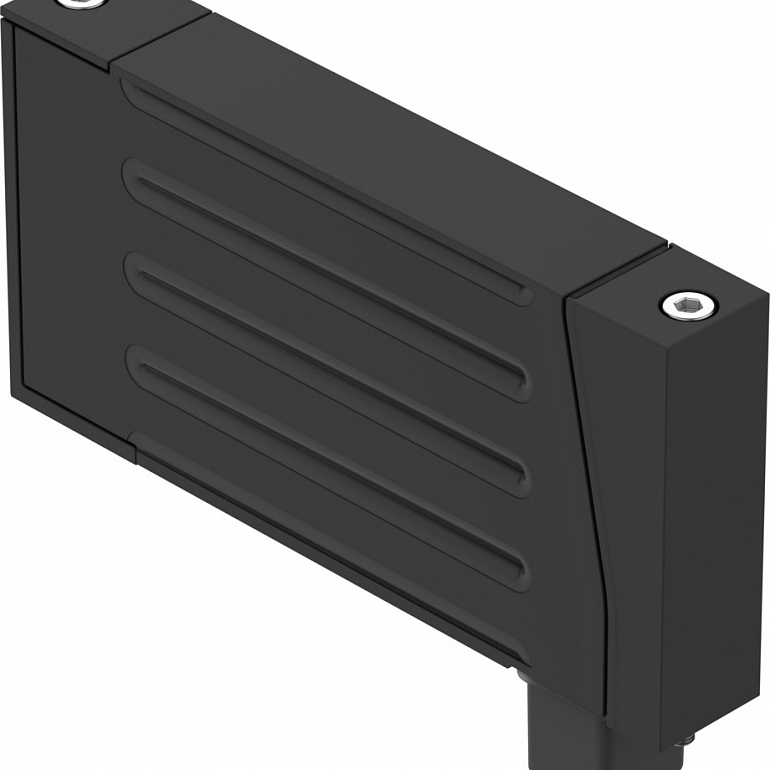

SKU: 8184034
GTIN: 4052568636067
Все характеристики
| Technical Data | |
| Grid dimension | 16 |
| Valve function | 3-way proportional-pressure regulator, closed |
| Design | Sub-base valve |
| Sealing principle | Soft |
| Type of actuation | Electric |
| Suitability for vacuum | yes |
| Flow direction | Non-reversible |
| Standard flow rate (standardised to DIN 1343) | 42 |
| Degree of protection | IP65 |
| LABS (PWIS) conformity | VDMA24364 zone III |
| Suitability for the production of Li-ion batteries | Metals with more than 5% by mass of copper, zinc or nickel by mass are excluded from use. Exceptions are nickel in steel, chemically nickel-plated surfaces, printed circuit boards, cables, electrical plug connectors and coils |
| Cleanroom class | Class 3 according to ISO 14644-1 |
| Note on materials | RoHS-compliant |
| Material housing | PA66-GF30TPE-U(PU) |
| Material seals | NBR |
| Product weight | 85.5 |
| Nominal size | 4 |
| Operating pressure | 101.5 |
| Nominal operating voltage DC | 24 |
| Storage temperature | -2070 |
| Media temperature | 550 |
| Ambient temperature | 550 |
| Relative air humidity | 5 - 85 %Non-condensing |
| Climatic category | 3K22 to EN 60721 |
| Pneumatic connection, port 2 | Flange |
| Pneumatic connection, port 4 | Flange |
| Pneumatic connection, port 1 | Flange |
| Pneumatic connection, port 3 | Flange |
| Vibration resistance | Transport application test with severity level 2 to FN 942017-4 and EN 60068-2-6 |
| Shock resistance | Shock test with severity level 2 to FN 942017-5 and EN 60068-2-27 |
Приемущества
| Developed for valve terminal VTEP |
| High precision with very low power consumption |
| Valve status indication via LED |
| 4 piezo valves in a bridge circuit for precise control |
| Available in two versions: Standard and low pressure |
| Easy to replace thanks to screw mounting on the connecting plate |
