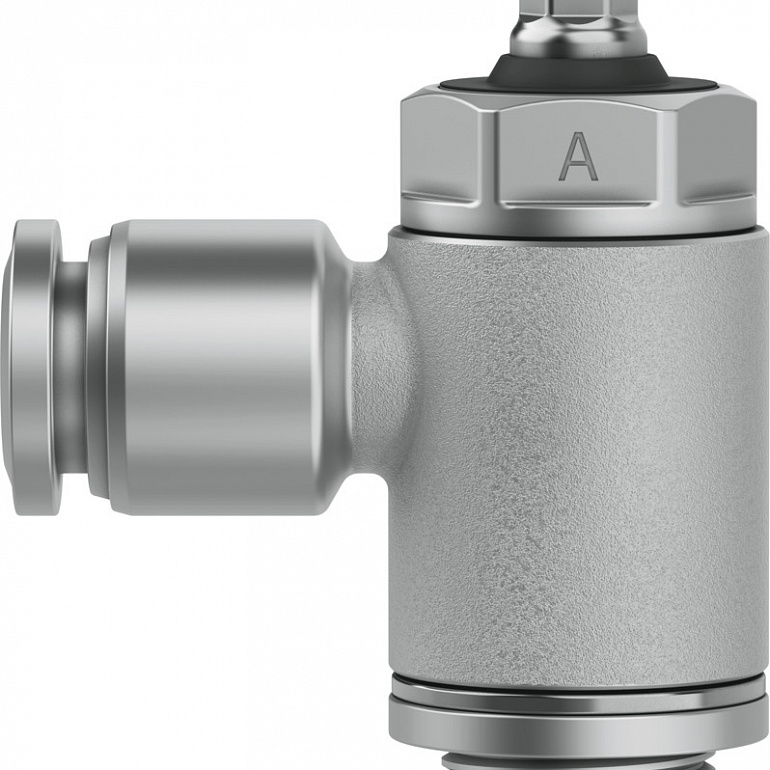

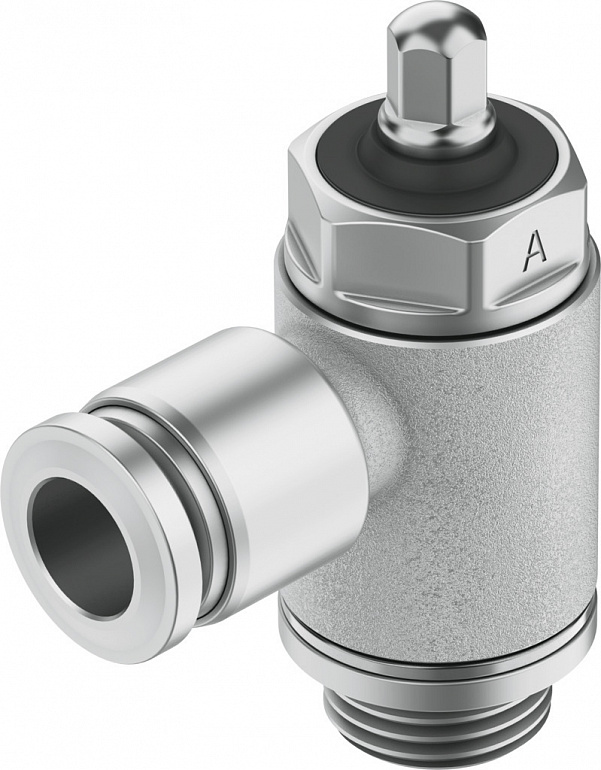

| Technical Data |
|
| Valve function |
Exhaust air one-way flow control function |
| Pneumatic connection, port 1 |
QS-8 |
| Pneumatic connection, port 2 |
G1/4 |
| Type of actuation |
Manual |
| Adjustment component |
External hex |
| Type of mounting |
Screw-in |
| Standard nominal flow rate in flow control direction |
530 |
| Standard nominal flow rate in blocked direction |
402578 |
| Ambient temperature |
0150 |
| Mounting position |
optional |

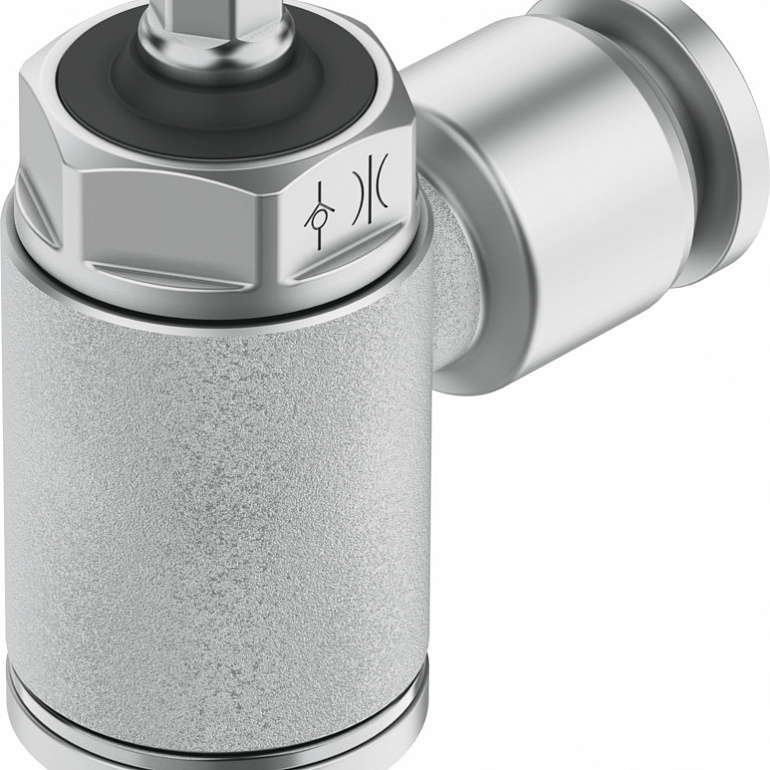

| Symbol |
00991452 |
| Operating pressure complete temperature range |
0.210 |
| Standard flow rate in flow control direction 0.6->0 MPa (6->0 bar, 87->0 psi) |
720 |
| Standard flow rate in non-return direction 0.6->0 MPa (6->0 bar, 87->0 psi) |
610760 |
| Operating medium |
Compressed air to ISO 8573-1:2010 [7:4:4] |
| Note on operating and pilot medium |
Lubricated operation possible (in which case lubricated operation will always be required) |
| LABS (PWIS) conformity |
VDMA24364-B2-L |
| Storage temperature |
-10150 |
| Media temperature |
0150 |
| Nominal torque |
5 |
| Tolerance for nominal tightening torque |
± 10% |
| Product weight |
37 |
| Note on materials |
RoHS-compliant |
| Material seals |
FPM |
| Material hollow bolt |
Wrought aluminium alloy |
| Material release ring |
Nickel-plated brass |
| Material adjusting screw |
High-alloy stainless steel |
| Material swivel fitting |
BrassNickel-plated |
