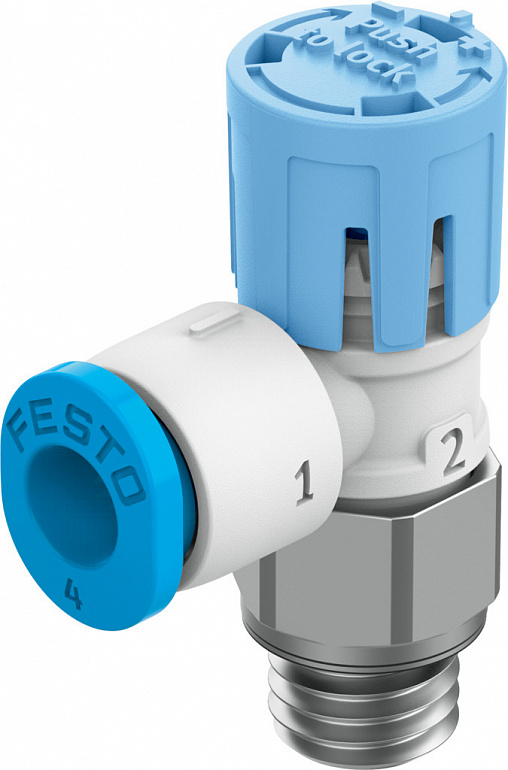

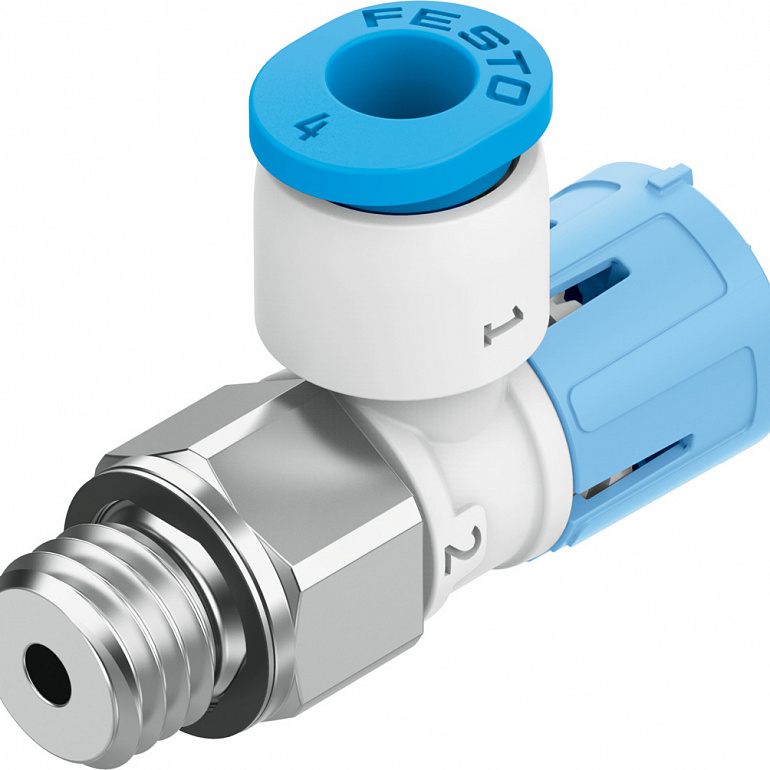

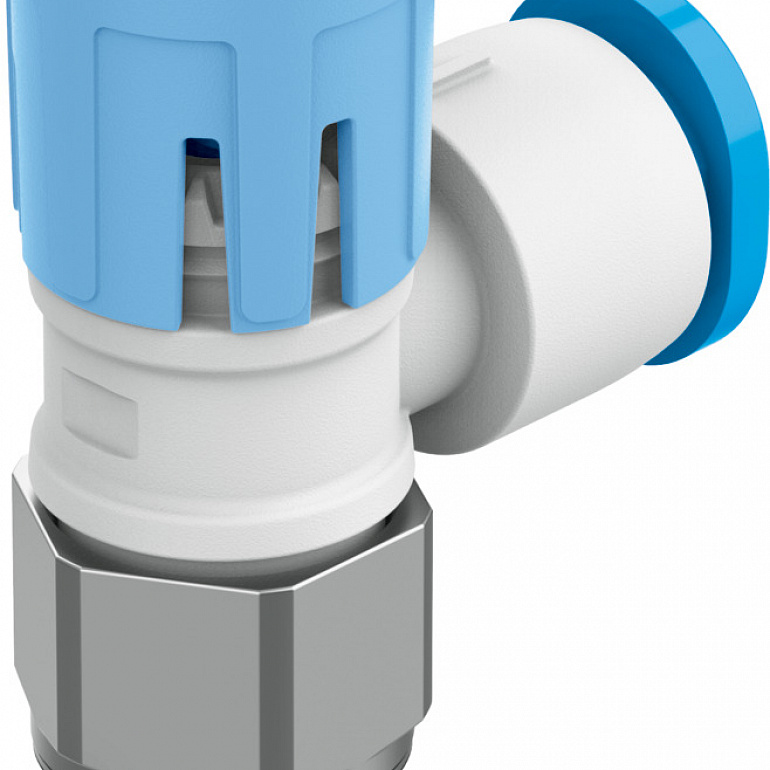

| Technical Data |
|
| Valve function |
Supply air one-way flow control function |

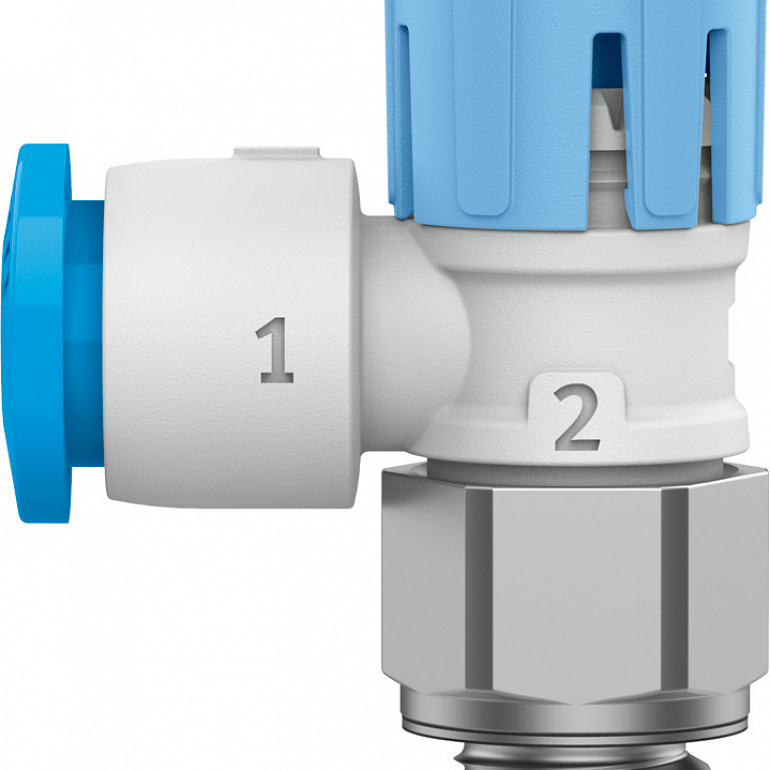

| Pneumatic connection, port 1 |
QS-4 |
| Pneumatic connection, port 2 |
M7 |
| Type of actuation |
Manual |
| Adjustment component |
Rotary knob with detent |
| Type of mounting |
Screw-in |
| Standard nominal flow rate in flow control direction |
85 |
| Standard nominal flow rate in blocked direction |
5090 |
| Ambient temperature |
-1060 |
| Material housing |
PBT |
| Mounting position |
optional |
| Symbol |
00991453 |
| Width across flats |
9 |
| Rotatability |
360°/no continuous swivelling permissible |
| Operating pressure complete temperature range |
2.9145 |
| Standard flow rate in flow control direction 0.6->0 MPa (6->0 bar, 87->0 psi) |
135 |
| Standard flow rate in non-return direction 0.6->0 MPa (6->0 bar, 87->0 psi) |
130160 |
| Operating medium |
Compressed air to ISO 8573-1:2010 [7:4:4] |
| Note on operating and pilot medium |
Lubricated operation possible (in which case lubricated operation will always be required) |
| LABS (PWIS) conformity |
VDMA24364 zone III |
| Cleanroom class |
Class 4 according to ISO 14644-1 |
| Media temperature |
-1060 |
| Max. tightening torque |
3.6 |
| Nominal torque |
3 |
| Tolerance for nominal tightening torque |
± 20% |
| Product weight |
4 |
| Note on materials |
RoHS-compliant |
| Material cover |
PBT |
| Material dynamic seals |
HNBR |
| Material threaded bolt |
Galvanised steel |
| Material release ring |
PBT |
| Material static seals |
NBR |
