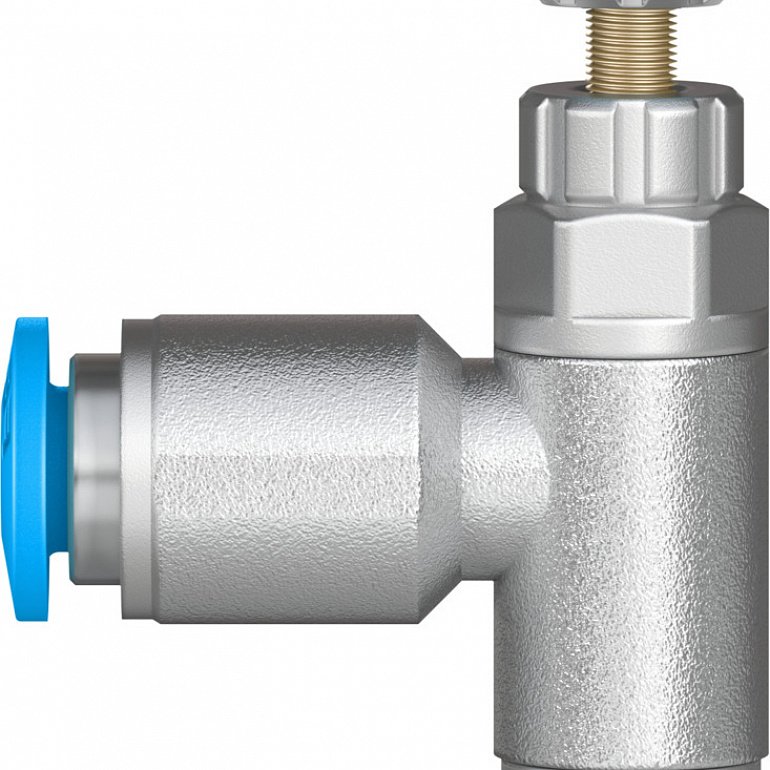

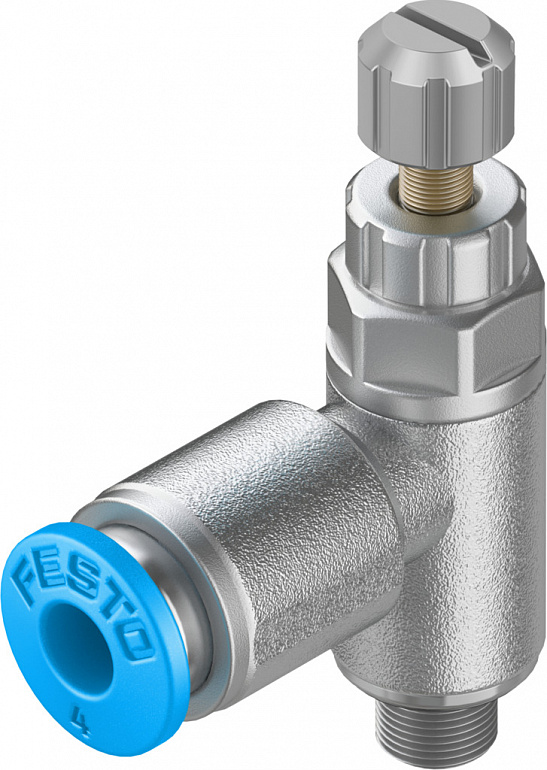

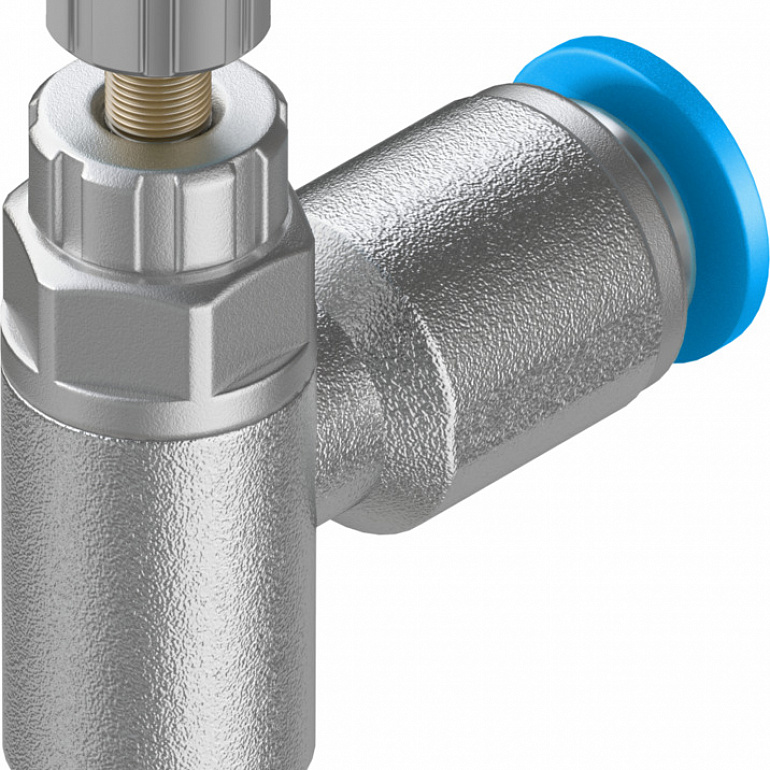

| Technical Data |
|
| Valve function |
Exhaust air one-way flow control function |
| Pneumatic connection, port 1 |
QS-4 |
| Pneumatic connection, port 2 |
M5 |
| Adjustment component |
Knurled screw |
| Type of mounting |
Screw-in |
| Standard nominal flow rate in flow control direction |
110 |
| Standard nominal flow rate in blocked direction |
65110 |
| Operating pressure |
0.210 |
| Ambient temperature |
-1060 |
| Maritime classification |
See certificate |
| Mounting position |
optional |
| Symbol |
00991452 |
| Operating pressure complete temperature range |
0.210 |
| Standard flow rate in flow control direction 0.6->0 MPa (6->0 bar, 87->0 psi) |
165 |
| Standard flow rate in non-return direction 0.6->0 MPa (6->0 bar, 87->0 psi) |
140160 |
| Operating medium |
Compressed air to ISO 8573-1:2010 [7:4:4] |
| Note on operating and pilot medium |
Lubricated operation possible (in which case lubricated operation will always be required) |
| LABS (PWIS) conformity |
VDMA24364-B1/B2-L |
| Cleanroom class |
Class 4 according to ISO 14644-1 |
| Media temperature |
-1060 |
| Nominal torque |
0.8 |
| Product weight |
14 |
| Material screwed plug |
Brass |
| Note on materials |
RoHS-compliant |
| Material seals |
NBR |
| Material release ring |
POM |
| Material adjusting screw |
High-alloy stainless steel |
| Material swivel fitting |
Die-cast zincChromated |
