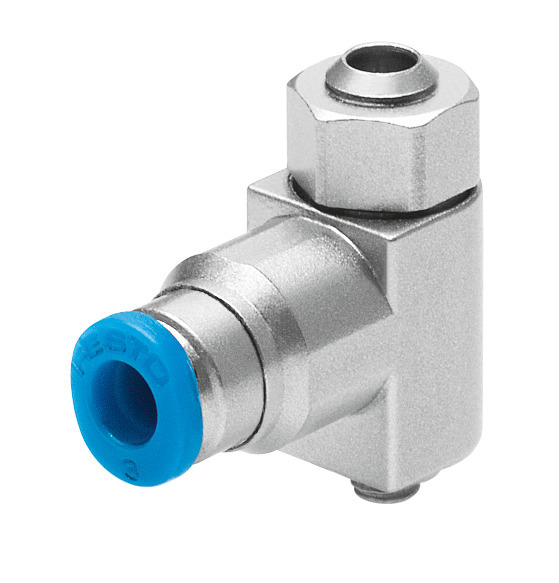

| Technical Data |
|
| Valve function |
Exhaust air one-way flow control function |
| Pneumatic connection, port 1 |
QS-3 |
| Pneumatic connection, port 2 |
M5 |
| Adjustment component |
Slotted head screw |
| Type of mounting |
Screw-in |
| Standard nominal flow rate in flow control direction |
40 |
| Standard nominal flow rate in blocked direction |
4670 |
| Operating pressure |
2.9145 |
| Ambient temperature |
-1060 |
| Maritime classification |
See certificate |
| Mounting position |
optional |
| Symbol |
00991452 |
| Standard flow rate in flow control direction 0.6->0 MPa (6->0 bar, 87->0 psi) |
80 |
| Standard flow rate in non-return direction 0.6->0 MPa (6->0 bar, 87->0 psi) |
90140 |
| Operating medium |
Compressed air to ISO 8573-1:2010 [7:4:4] |
| Note on operating and pilot medium |
Lubricated operation possible (in which case lubricated operation will always be required) |
| LABS (PWIS) conformity |
VDMA24364-B1/B2-L |
| Cleanroom class |
Class 4 according to ISO 14644-1 |
| Media temperature |
-1060 |
| Max. tightening torque |
1.5 |
| Product weight |
9 |
| Material screwed plug |
BrassNickel-plated |
| Note on materials |
RoHS-compliant |
| Material seals |
NBR |
| Material release ring |
POM |
| Material adjusting screw |
Brass |
| Material swivel fitting |
Die-cast zinc |
