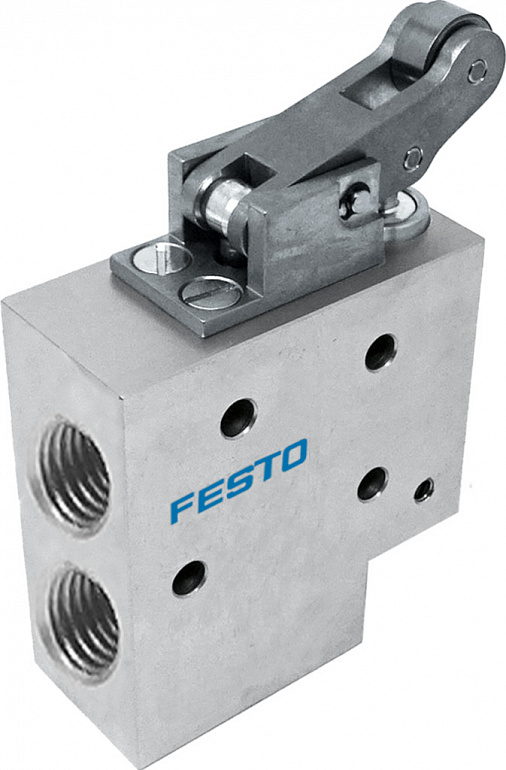

| Technical Data |
|
| Valve function |
One-way flow control function |
| Pneumatic connection, port 1 |
G1/2 |
| Pneumatic connection, port 2 |
G1/2 |
| Adjustment component |
Roller lever |
| Type of mounting |
With through-hole |
| Standard nominal flow rate in flow control direction |
1300 |
| Standard nominal flow rate in blocked direction |
1250 |
| Operating pressure |
0.310 |
| Ambient temperature |
-1060 |
| Material housing |
Wrought aluminium alloy |
| Mounting position |
optional |
| Symbol |
00991465 |
| Operating medium |
Compressed air to ISO 8573-1:2010 [7:-:-] |
| Note on operating and pilot medium |
Lubricated operation possible (in which case lubricated operation will always be required) |
| LABS (PWIS) conformity |
VDMA24364-B2-L |
| Media temperature |
-1060 |
| Product weight |
735 |
