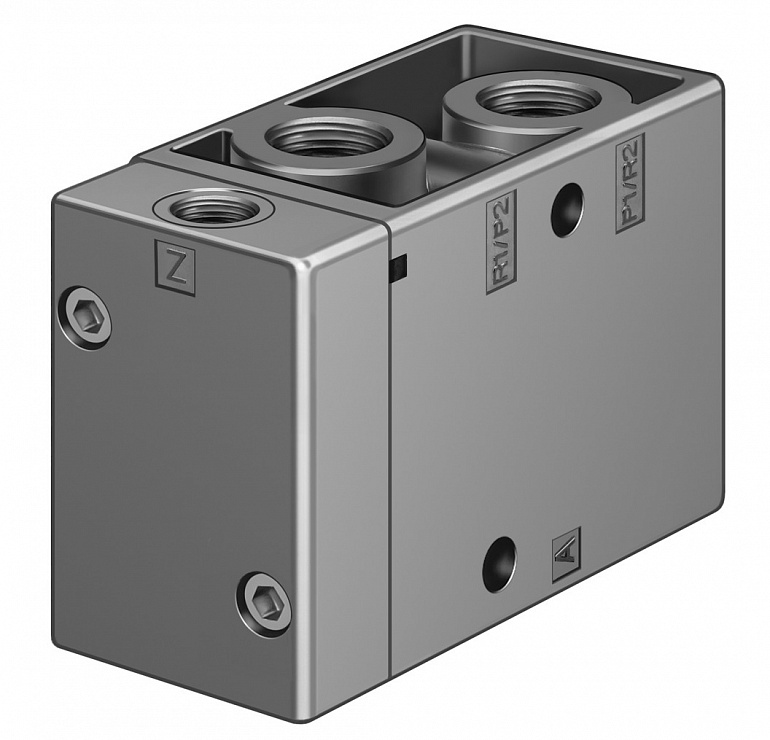

SKU: 7803

GTIN: 4052568001605

Все характеристики

Technical Data
Valve function	3/2-way, monostable, open/closed
Type of actuation	Pneumatic
Construction width	26
Standard nominal flow rate (standardised to DIN 1343)	500
pneumatic working port	G1/8
Operating pressure	-0.9510
Design	Poppet seat
Type of reset	Mechanical spring
Nominal size	5
Grid dimension	27
Exhaust-air function	With flow control option
Sealing principle	Soft
Mounting position	optional
Type of piloting	Direct
Pilot air supply	External
Flow direction	Reversible
Symbol	00991030
lap	Underlap
Pilot pressure	110
Max. switching frequency	12
Switching time off	10
Switching time on	4
Operating medium	Compressed air to ISO 8573-1:2010 [7:4:4]
Note on operating and pilot medium	Lubricated operation possible (in which case lubricated operation will always be required)
Corrosion resistance class CRC	1 - Low corrosion stress
LABS (PWIS) conformity	VDMA24364-B1/B2-L
Storage temperature	-2060
Media temperature	-1060
Pilot medium	Compressed air to ISO 8573-1:2010 [7:4:4]
Ambient temperature	-1060
Product weight	150
Type of mounting	Either:On manifold railWith through-hole
Pilot air port 110	G1/8
Pilot air port 12	G1/8
Pneumatic connection, port 1	G1/8
Pneumatic connection, port 11	G1/8
Pneumatic connection, port 2	G1/8
Pneumatic connection, port 3	G1/8
Pneumatic port 33	G1/8
Note on materials	RoHS-compliant
Material seals	NBR
Material housing	Die-cast aluminium
