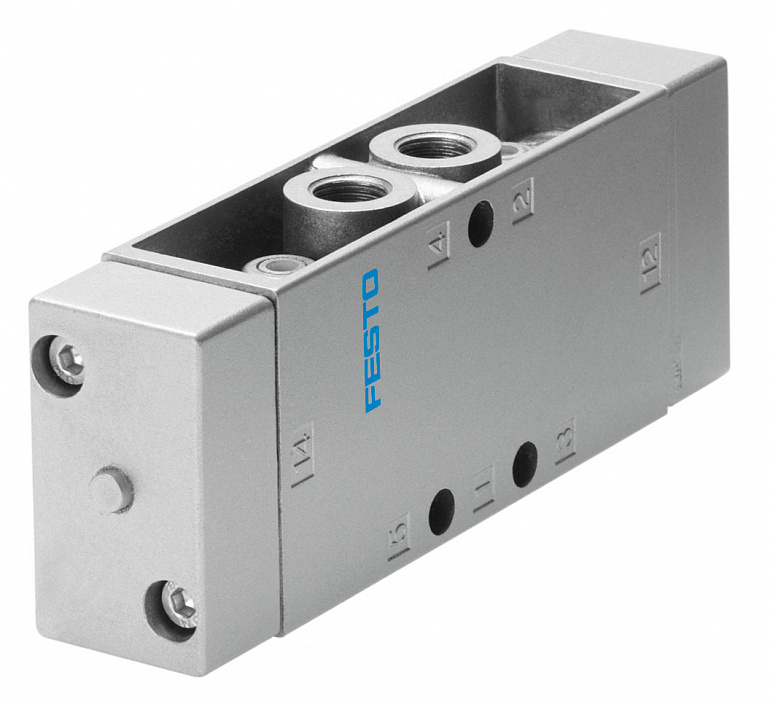

Technical Data
Valve function	5/2-way, bistable, dominant
Type of actuation	Pneumatic
Construction width	26
Standard nominal flow rate (standardised to DIN 1343)	600
pneumatic working port	G1/8
Operating pressure	010
Design	Poppet seat
Degree of protection	IP65
CE mark (see declaration of conformity)	To EU Explosion Protection Directive (ATEX)
UKCA marking (see declaration of conformity)	To UK EX instructions
ATEX category gas	II 2G
ATEX category dust	II 2D
Explosion ignition protection type for gas	Ex h IIC T4 Gb
Explosion ignition protection type for dust	Ex h IIIC T130°C Db
Explosion ambient temperature	-10 °C <= Ta <= +60 °C
Explosion protection certification outside the EU	EPL Db (GB)EPL Gb (GB)
Nominal size	5
Grid dimension	27
Exhaust-air function	With flow control option
Sealing principle	Soft
Mounting position	optional
Type of piloting	Direct
Pilot air supply	External
Flow direction	Non-reversible

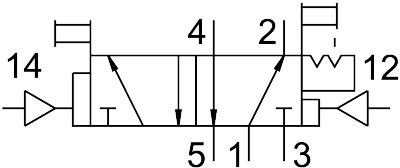

Symbol	00995764
lap	Underlap
Pilot pressure	2.310
Max. switching frequency	12
Switching time off	16
Switching time on	9
Switching time reversal	7
Max. positive test pulse with 0 signal	2200
Max. negative test pulse with 1 signal	3700
Explosion protection	Zone 1 (ATEX)Zone 1 (UKEX)Zone 2 (ATEX)Zone 21 (ATEX)Zone 21 (UKEX)Zone 22 (ATEX)
Operating medium	Compressed air to ISO 8573-1:2010 [7:4:4]
Note on operating and pilot medium	Lubricated operation possible (in which case lubricated operation will always be required)
Corrosion resistance class CRC	1 - Low corrosion stress
LABS (PWIS) conformity	VDMA24364-B1/B2-L
Storage temperature	-2060
Media temperature	-1060
Ambient temperature	-1060
Product weight	330
Type of mounting	Either:On manifold railWith through-hole
Breather connection	M5
Pilot air port 12	G1/8
Pilot air port 14	G1/8
Pneumatic connection, port 1	G1/8
Pneumatic connection, port 2	G1/8
Pneumatic connection, port 3	G1/8
Pneumatic connection, port 4	G1/8
Pneumatic connection, port 5	G1/8
Note on materials	RoHS-compliant
Material seals	NBRTPE-U(PU)
Material housing	Die-cast aluminium
