SKU: 537956
GTIN: 4052568008055
Характеристики
| Valve function | 5/3 exhausted |
| Standard nominal flow rate (standardised to DIN 1343) | 590 |
| Type of actuation | Electric |
Все характеристики
| Technical Data | |
| Valve function | 5/3 exhausted |
| Type of actuation | Electric |
| Valve size | 20 |
| Standard nominal flow rate (standardised to DIN 1343) | 590 |
| Operating voltage | 24V DC |
| Operating pressure | -0.910 |
| Design | Piston gate valve |
| Type of reset | Mechanical spring |
| Approval | c UL us - Recognized (OL) |
| Degree of protection | IP65To IEC 60529 |
| Sealing principle | Soft |
| Mounting position | optional |
| Manual override | DetentingNon-detenting |
| Type of piloting | Pilot actuated |
| Flow direction | Reversible |

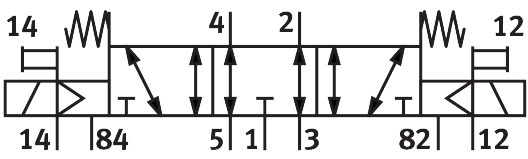

| Symbol | 00991032 |
| lap | Overlap |
| Signal status display | yes |
| Pilot pressure | 38 |
| Suitability for vacuum | yes |
| Standard nominal flow rate with QS-8 | 590 |
| Standard nominal flow rate with QS-10 | 700 |
| Switching time off | 47 |
| Switching time on | 11 |
| Switching time reversal | 23 |
| Max. positive test pulse with 0 signal | 400 |
| Max. negative test pulse with 1 signal | 900 |
| Permissible voltage fluctuations | +/- 25% |
| Operating medium | Compressed air to ISO 8573-1:2010 [7:4:4] |
| Note on operating and pilot medium | Lubricated operation possible (in which case lubricated operation will always be required) |
| Vibration resistance | Transport application test with severity level 2 to FN 942017-4 and EN 60068-2-6 |
| Shock resistance | Shock test with severity level 2 to FN 942017-5 and EN 60068-2-27 |
| Corrosion resistance class CRC | 1 - Low corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Storage temperature | -2040 |
| Media temperature | -550 |
| Relative air humidity | Max. 90% at 40°C |
| Ambient temperature | -550 |
| Max. tightening torque for valve mounting | 0.65 |
| Product weight | 100 |
| Type of mounting | With through-hole |
| Note on materials | RoHS-compliant |
| Material seals | NBR |
| Material housing | Die-cast aluminium |
Приемущества
| For valve terminal MPA |
| As individual valve mounted on sub-base |
| Comprehensive range of valves |
