Technical Data
Valve function	5/2 bistable
Type of actuation	Electric
Valve size	10
Nominal flow rate standardised according to ISO 8778	730
Operating voltage	24V DC
Operating pressure	-0.97
Design	Piston slide with sealing ring
Degree of protection	IP65
Width	10.35
Nominal size	4.2
Exhaust-air function	With flow control option
Sealing principle	Soft
Mounting position	optional
Manual override	Non-detenting
Type of piloting	Pilot actuated
Pilot air supply	External
Flow direction	Reversible with restrictions

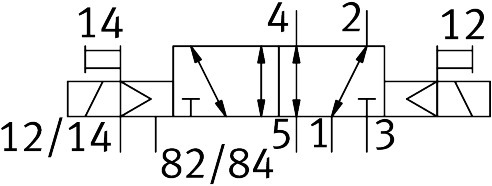

Symbol	00997521
lap	Underlap
Signal status display	yes
Pilot pressure	1.57
Suitability for vacuum	yes
b value	0.36
C value	2.76
Nominal flow rate standardised to ISO 8778 exhaust 2-3	700
Max. switching frequency	5
Switching time reversal	9
Duty cycle	100%
Max. positive test pulse with 0 signal	1400
Max. negative test pulse with 1 signal	800
Characteristic coil data	24 V DC: 0.35 W
Permissible voltage fluctuations	+/- 10 %
Operating medium	Compressed air to ISO 8573-1:2010 [7:4:4]Inert gases
Note on operating and pilot medium	Ester oil < 0.1mg/m³, according to ISO 8573-1:2010 [-:-:2]Lubricated operation possible (in which case lubricated operation will always be required)
Vibration resistance	Transport application test with severity level 2 to FN 942017-4 and EN 60068-2-6
Shock resistance	Shock test with severity level 1 to FN 942017-5 and EN 60068-2-27
Corrosion resistance class CRC	1 - Low corrosion stress
LABS (PWIS) conformity	VDMA24364 zone III
Storage temperature	-2070
Suitable for use with food	See supplementary material information
Media temperature	-550
Relative air humidity	5 - 95%
Pilot medium	Compressed air to ISO 8573-1:2010 [7:4:4]Inert gases
Ambient temperature	-550
Max. tightening torque for valve mounting	0.375
Product weight	51.9
Electrical connection	Plug-in
Type of mounting	On sub-base
Pilot air port 12/14	Sub-base
Pilot exhaust port 82/84	Sub-base
Pilot air port 12	Sub-base
Pneumatic connection, port 1	Sub-base
Pneumatic connection, port 2	Sub-base
Pneumatic connection, port 3	Sub-base
Pneumatic connection, port 4	Sub-base
Pneumatic connection, port 5	Sub-base
Pneumatic port 82	Sub-base
Note on materials	RoHS-compliant
Material seals	HNBR
Material dynamic seals	HNBR
Material housing	Anodised wrought aluminium alloy
Material spring	High-alloy stainless steel
Material piston slide	POM
Material screws	Stainless steel
