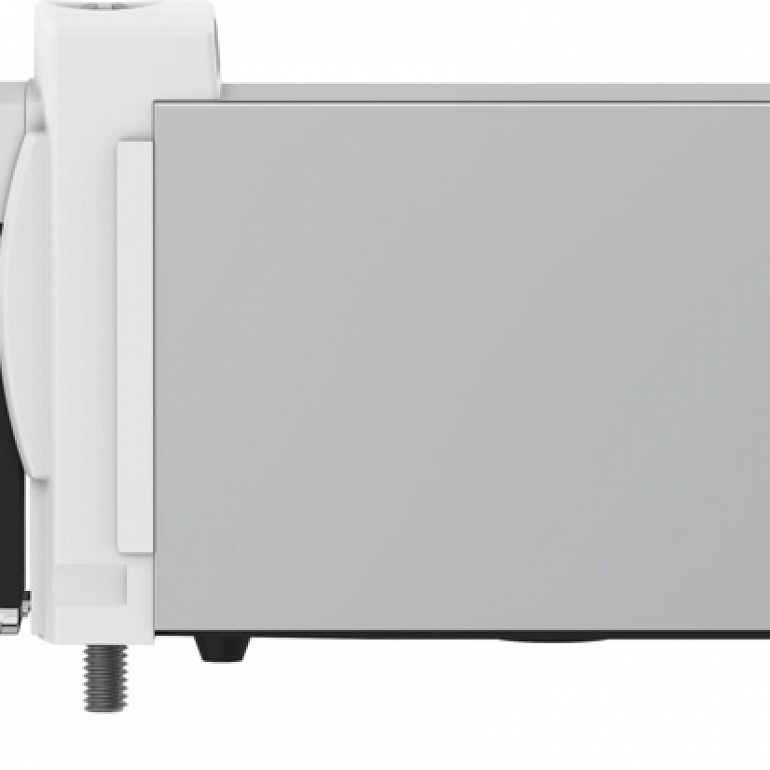

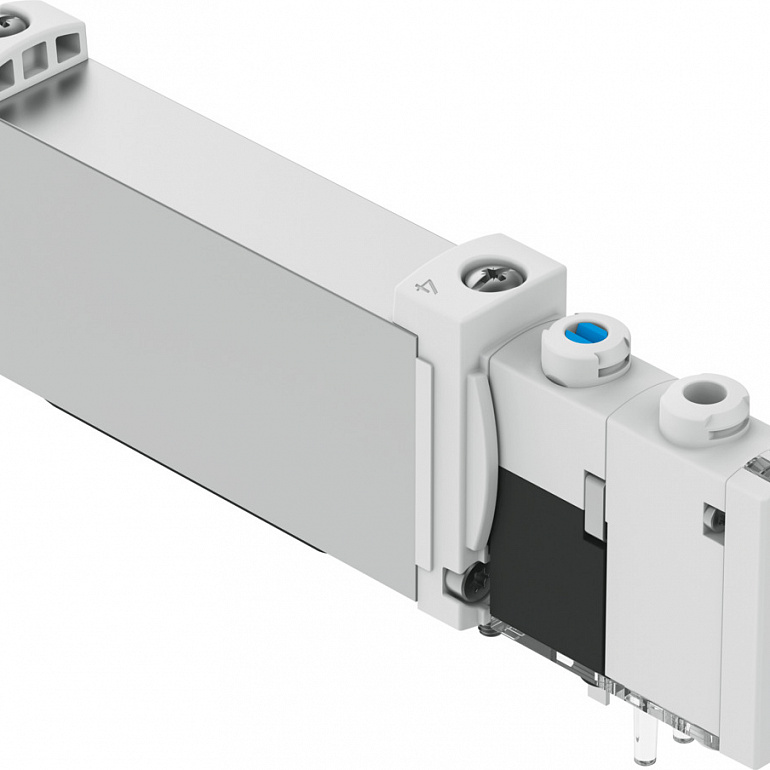

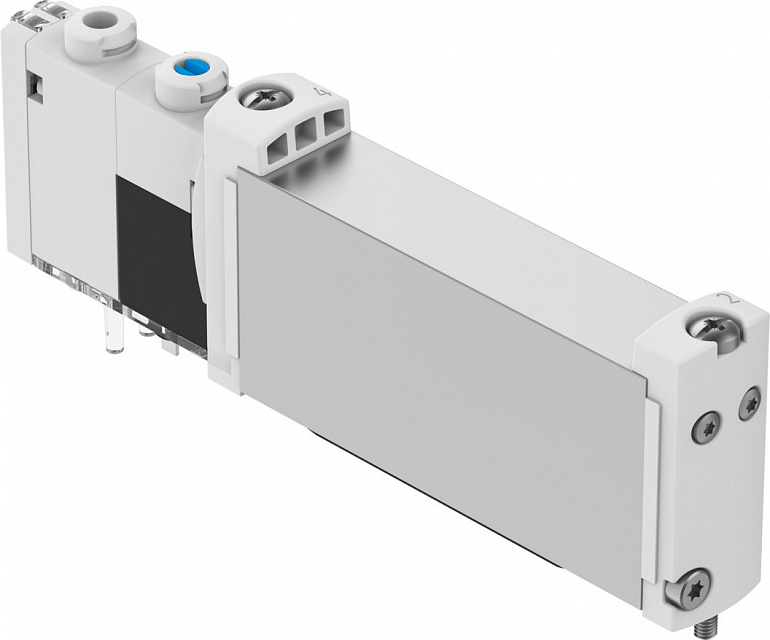

| Technical Data |
|
| Valve function |
5/2-way, monostable |
| Type of actuation |
Electric |
| Valve size |
14 |
| Standard nominal flow rate (standardised to DIN 1343) |
500 |
| pneumatic working port |
Flange |
| Operating voltage |
24V DC |
| Operating pressure |
-0.910 |
| Design |
Piston gate valve |
| Type of reset |
Pneumatic spring |
| Approval |
c UL us - Recognized (OL) |
| Degree of protection |
IP65IP67 |
| Exhaust-air function |
With flow control option |
| Sealing principle |
Soft |
| Mounting position |
optional |
| Manual override |
DetentingNon-detenting |
| Type of piloting |
Pilot actuated |
| Pilot air supply |
External |
| Flow direction |
Reversible |

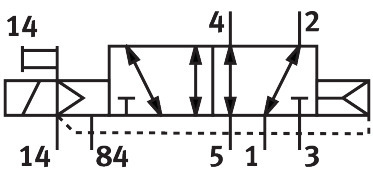

| Symbol |
00991053 |
| lap |
Overlap |
| Signal status display |
LED |
| Pilot pressure |
1.58 |
| Max. switching frequency |
3 |
| Switching time off |
26 |
| Switching time on |
13 |
| Duty cycle |
100% |
| Max. positive test pulse with 0 signal |
1600 |
| Max. negative test pulse with 1 signal |
3000 |
| Characteristic coil data |
22 V DC: 1.0 W |
| Permissible voltage fluctuations |
+/- 10 % |
| Operating medium |
Compressed air to ISO 8573-1:2010 [7:4:4] |
| Note on operating and pilot medium |
Lubricated operation possible (in which case lubricated operation will always be required) |
| Vibration resistance |
Transport application test with severity level 2 to FN 942017-4 and EN 60068-2-6 |
| Shock resistance |
Shock test with severity level 2 to FN 942017-5 and EN 60068-2-27 |
| Corrosion resistance class CRC |
2 - Moderate corrosion stress |
| LABS (PWIS) conformity |
VDMA24364-B1/B2-L |
| Media temperature |
-560 |
| Pilot medium |
Compressed air to ISO 8573-1:2010 [7:4:4] |
| Ambient temperature |
-560 |
| Product weight |
91 |
| Electrical connection |
Via sub-base |
| Type of mounting |
On manifold rail |
| Note on materials |
RoHS-compliant |
| Material seals |
HNBRNBR |
| Material housing |
Wrought aluminium alloy |
