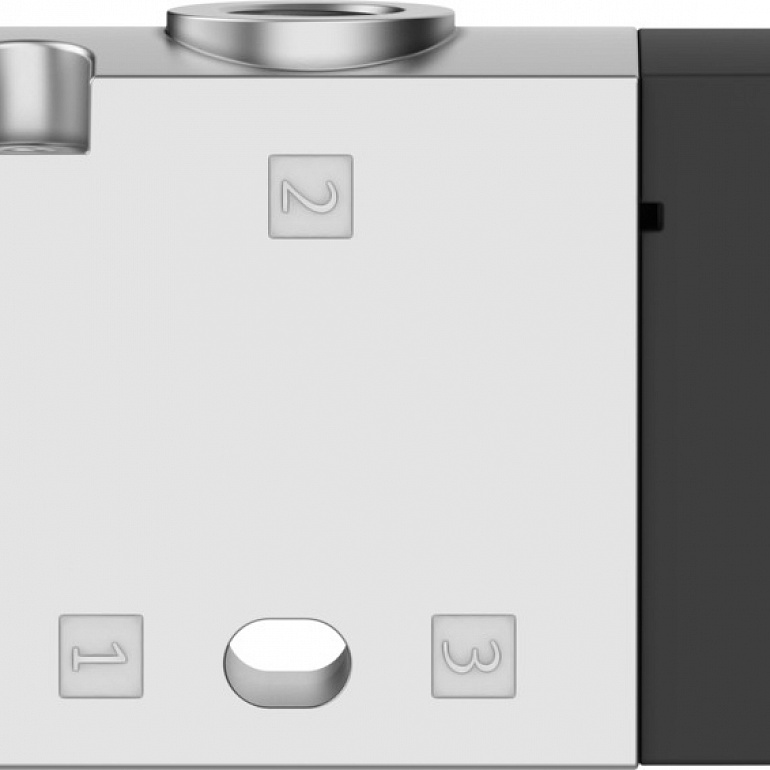

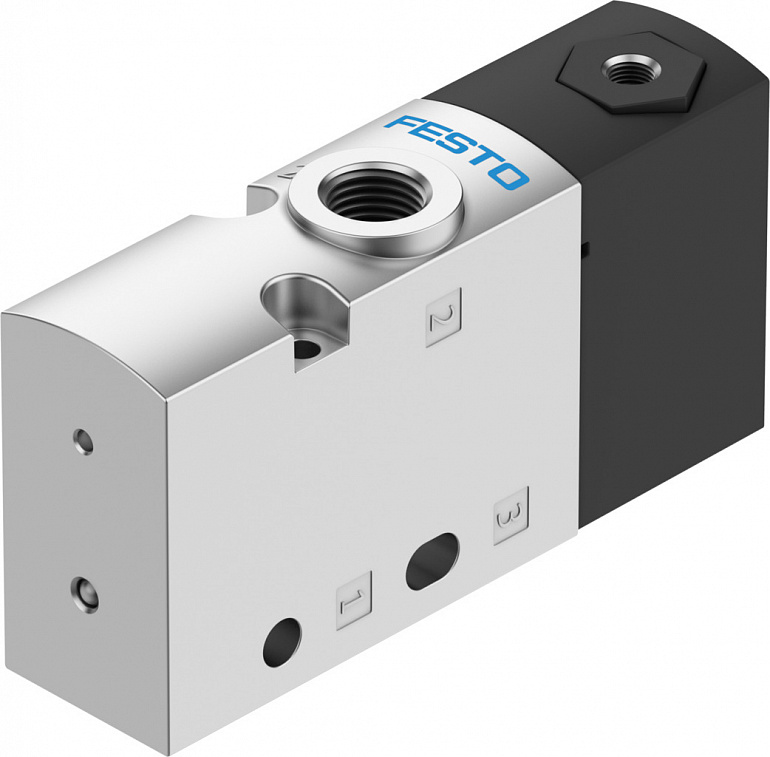

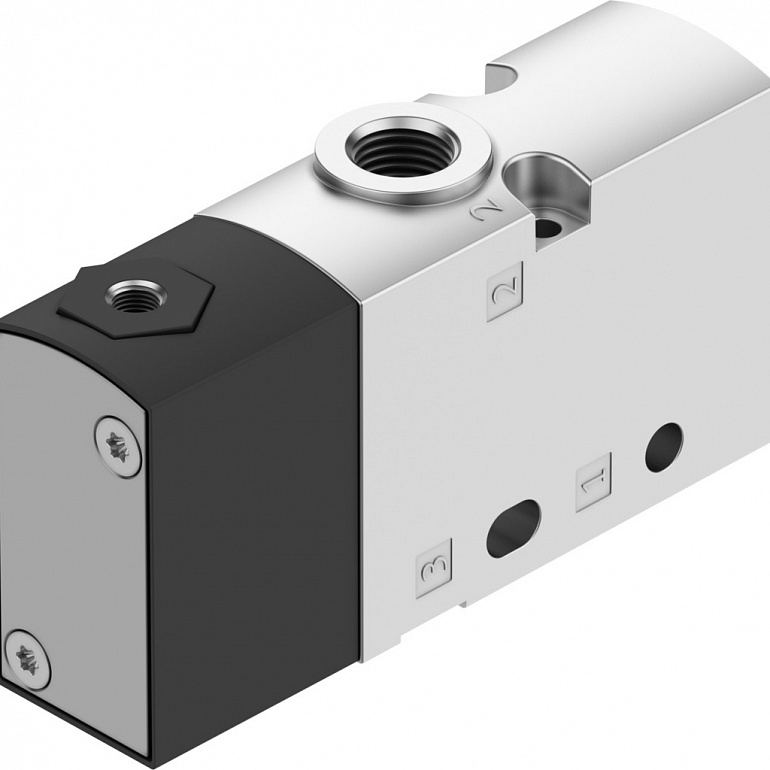

| Technical Data |
|
| Valve function |
3/2 open, monostable |
| Type of actuation |
Pneumatic |
| Valve size |
21 |
| Standard nominal flow rate (standardised to DIN 1343) |
700 |
| pneumatic working port |
G1/8 |
| Operating pressure |
2.510 |
| Design |
Piston gate valve |
| Type of reset |
Mechanical spring |
| Approval |
c UL us - Recognized (OL) |
| Nominal size |
5.7 |
| Exhaust-air function |
With flow control option |
| Sealing principle |
Soft |
| Mounting position |
optional |
| Manual override |
None |
| Type of piloting |
Direct |
| Pilot air supply |
Internal |
| Flow direction |
Non-reversible |
| Symbol |
00997385 |
| lap |
Overlap |
| Pilot pressure |
2.510 |
| Switching time off |
28 |
| Switching time on |
10 |
| Explosion protection |
The information in the certificate must be observed!Zone 1 (ATEX)Zone 2 (ATEX)Zone 21 (ATEX)Zone 22 (ATEX) |
| Operating medium |
Compressed air to ISO 8573-1:2010 [7:4:4] |
| Note on operating and pilot medium |
Lubricated operation possible (in which case lubricated operation will always be required) |
| Vibration resistance |
Transport application test with severity level 2 to FN 942017-4 and EN 60068-2-6 |
| Shock resistance |
Shock test with severity level 2 to FN 942017-5 and EN 60068-2-27 |
| Corrosion resistance class CRC |
2 - Moderate corrosion stress |
| LABS (PWIS) conformity |
VDMA24364-B1/B2-L |
| Cleanroom class |
Class 6 according to ISO 14644-1 |
| Media temperature |
-1060 |
| Pilot medium |
Compressed air to ISO 8573-1:2010 [7:4:4] |
| Ambient temperature |
-1060 |
| Product weight |
127 |
| Type of mounting |
Either:On manifold railWith through-hole |
| Breather connection |
Not ducted |
| Pneumatic connection, port 1 |
G1/8 |
| Pneumatic connection, port 2 |
G1/8 |
| Pneumatic connection, port 3 |
G1/8 |
| Note on materials |
RoHS-compliant |
| Material seals |
HNBRNBR |
| Material housing |
Die-cast aluminiumPainted |
| Material piston slide |
Wrought aluminium alloy |
| Material screws |
Galvanised steel |
