| Technical Data |
|
| Valve function |
2x3/2-way, open/closed, monostable |
| Type of actuation |
Pneumatic |
| Valve size |
14 |
| Standard nominal flow rate (standardised to DIN 1343) |
410 |
| pneumatic working port |
G1/8 |
| Operating pressure |
-0.910 |
| Design |
Piston gate valve |
| Type of reset |
Mechanical spring |
| Grid dimension |
16 |
| Exhaust-air function |
With flow control option |
| Sealing principle |
Soft |
| Mounting position |
optional |
| Manual override |
None |
| Type of piloting |
Direct |
| Flow direction |
Reversible |

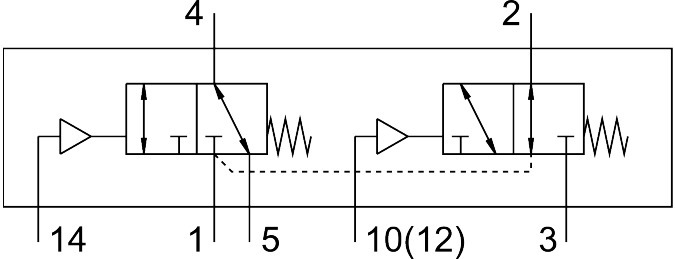

| Symbol |
00992944 |
| lap |
Overlap |
| Pilot pressure |
310 |
| Suitability for vacuum |
yes |
| Switching time off |
13 |
| Switching time on |
9 |
| Operating medium |
Compressed air to ISO 8573-1:2010 [7:4:4] |
| Note on operating and pilot medium |
Lubricated operation possible (in which case lubricated operation will always be required) |
| Corrosion resistance class CRC |
2 - Moderate corrosion stress |
| LABS (PWIS) conformity |
VDMA24364-B1/B2-L |
| Cleanroom class |
Class 5 according to ISO 14644-1 |
| Media temperature |
-550 |
| Pilot medium |
Compressed air to ISO 8573-1:2010 [7:4:4] |
| Ambient temperature |
-560 |
| Product weight |
77 |
| Type of mounting |
Either:On PR railWith through-hole |
| Pilot air port 12 |
M5 |
| Pilot air port 14 |
M5 |
| Pneumatic connection, port 1 |
G1/8 |
| Pneumatic connection, port 2 |
G1/8 |
| Pneumatic connection, port 3 |
G1/8 |
| Pneumatic connection, port 4 |
G1/8 |
| Pneumatic connection, port 5 |
G1/8 |
| Note on materials |
RoHS-compliant |
| Material seals |
HNBRNBR |
| Material housing |
AluminiumAnodised |
