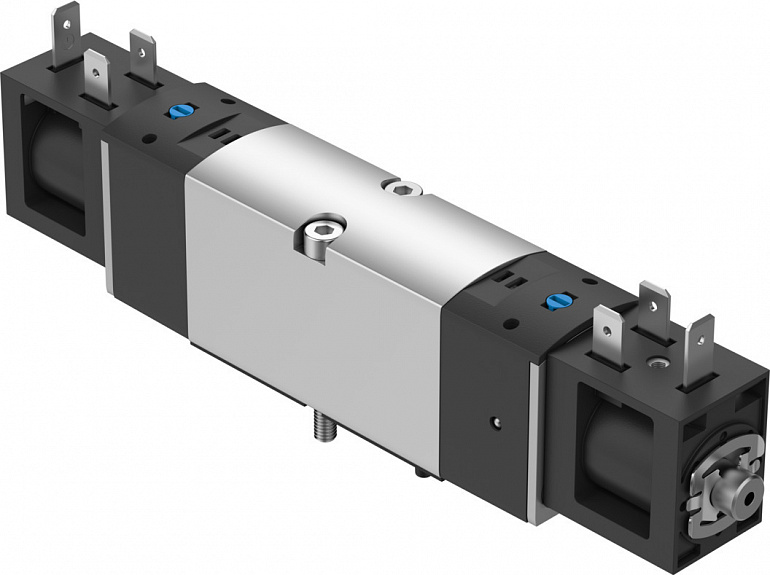

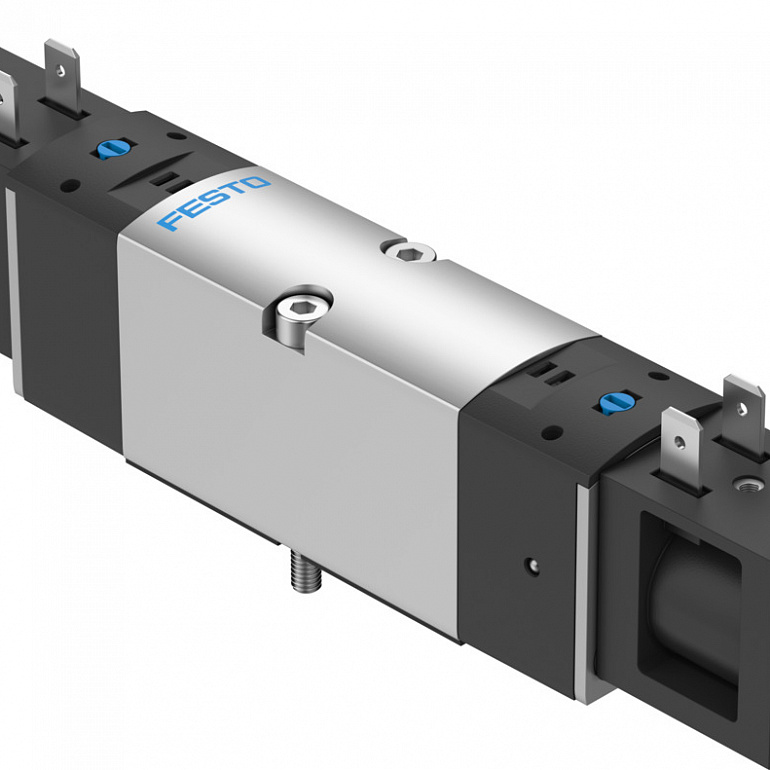

| Technical Data |
|
| Valve function |
5/2 bistable |
| Type of actuation |
Electric |
| Valve size |
26 |
| Standard nominal flow rate (standardised to DIN 1343) |
900 |
| pneumatic working port |
Sub-base size 26 mm to ISO 15407-1 |
| Operating voltage |
24V DC |
| Operating pressure |
38 |
| Design |
Piston slide with sealing ring |
| Degree of protection |
IP65With plug socketTo IEC 60529 |
| Nominal size |
6.4 |
| Exhaust-air function |
With flow control option |
| Sealing principle |
Soft |
| Mounting position |
optional |
| Conforms to standard |
ISO 15407-1 |
| Manual override |
DetentingNon-detenting |
| Type of piloting |
Pilot actuated |
| Pilot air supply |
Internal |
| Flow direction |
Non-reversible |
| Symbol |
00991005 |
| lap |
Underlap |
| Signal status display |
With accessories |
| b value |
0.3 |
| C value |
3.92 |
| Flow rate of valve |
915 |
| Flow rate of valve on individual sub-base |
915 |
| Flow rate of pneumatically interlinked valve |
880 |
| Switching time reversal |
10.8 |
| Duty cycle |
100% |
| Max. positive test pulse with 0 signal |
2500 |
| Max. negative test pulse with 1 signal |
1100 |
| Nominal operating voltage DC |
24 |
| Characteristic coil data |
24 V DC: 3.3 W |
| Permissible voltage fluctuations |
+/- 10 % |
| Operating medium |
Compressed air to ISO 8573-1:2010 [7:4:4] |
| Note on operating and pilot medium |
Lubricated operation possible (in which case lubricated operation will always be required) |
| Vibration resistance |
Transport application test with severity level 2 to FN 942017-4 and EN 60068-2-6 |
| Shock resistance |
Shock test with severity level 2 to FN 942017-5 and EN 60068-2-27 |
| Corrosion resistance class CRC |
1 - Low corrosion stress |
| LABS (PWIS) conformity |
VDMA24364 zone III |
| Media temperature |
-550 |
| Pilot medium |
Compressed air to ISO 8573-1:2010 [7:4:4] |
| Ambient temperature |
-550 |
| Max. tightening torque for valve mounting |
2.4 |
| Product weight |
319 |
| Electrical connection |
Type BTo industry standard (11 mm) |
| Type of mounting |
On sub-base |
| Breather connection |
Not ducted |
| Pneumatic connection, port 1 |
Sub-base size 26 mm to ISO 15407-1 |
| Pneumatic connection, port 2 |
Sub-base size 26 mm to ISO 15407-1 |
| Pneumatic connection, port 3 |
Sub-base size 26 mm to ISO 15407-1 |
| Pneumatic connection, port 4 |
Sub-base size 26 mm to ISO 15407-1 |
| Pneumatic connection, port 5 |
Sub-base size 26 mm to ISO 15407-1 |
| Note on materials |
RoHS-compliant |
| Material seals |
HNBRNBR |
| Material housing |
Wrought aluminium alloy |
| Material piston slide |
Wrought aluminium alloy |
| Material screws |
Galvanised steel |
