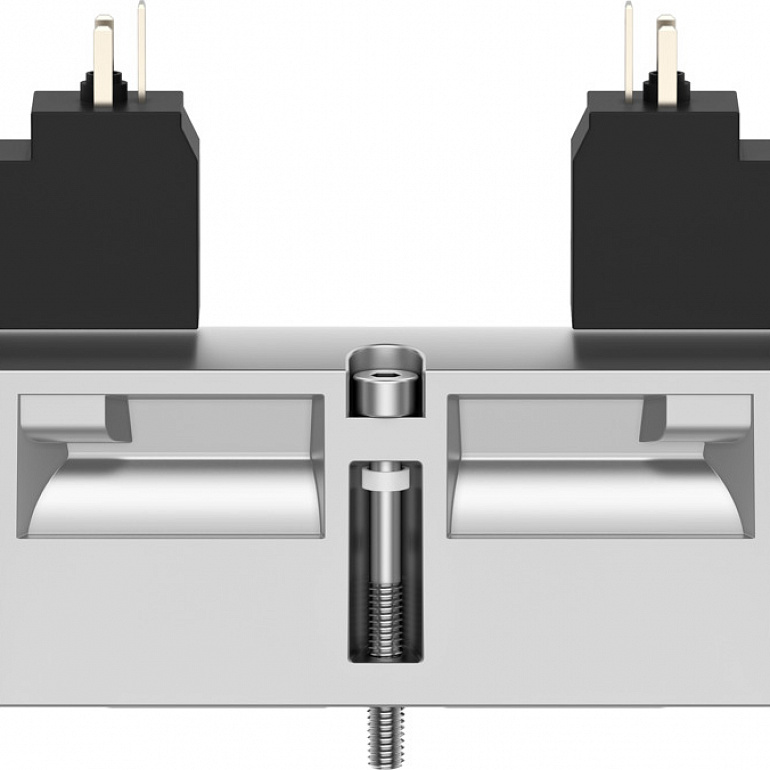

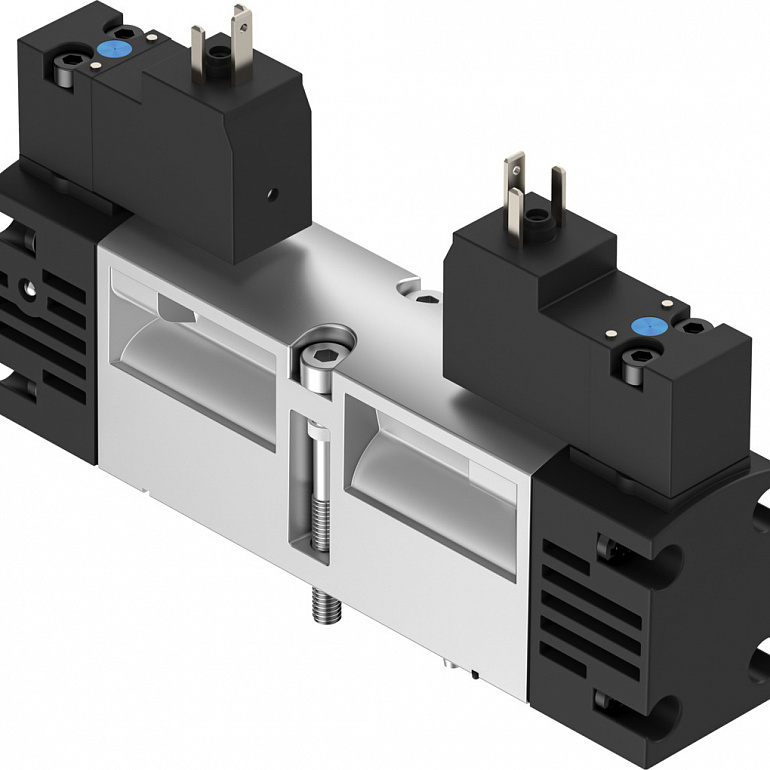

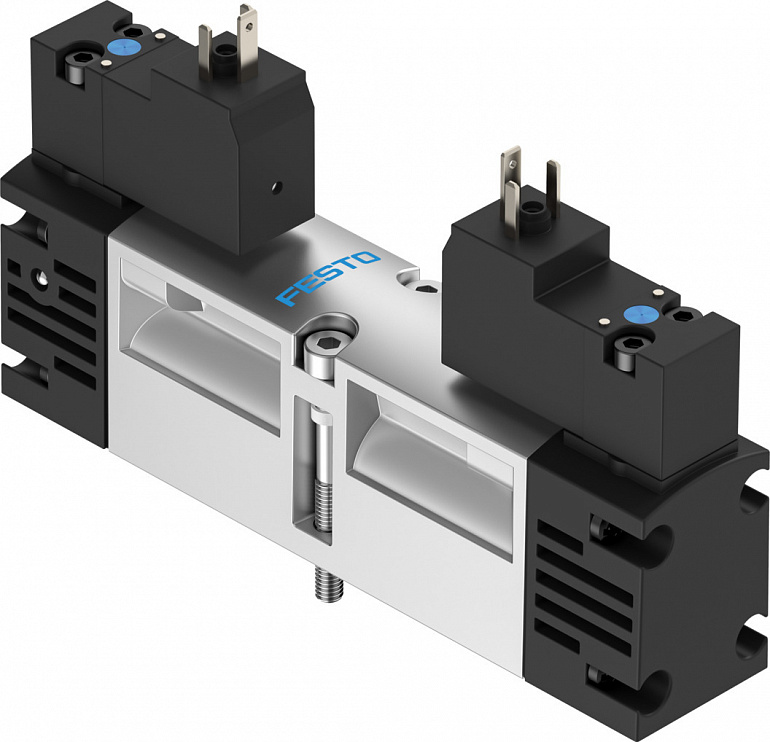

| Technical Data |
|
| Valve function |
5/2 bistable |
| Type of actuation |
Electric |
| Valve size |
26 |
| Standard nominal flow rate (standardised to DIN 1343) |
1100 |
| pneumatic working port |
Sub-base size 26 mm to ISO 15407-1Sub-base size 01 to VDMA 24563G1/4 |
| Operating voltage |
110V AC |
| Operating pressure |
210 |
| Design |
Piston gate valve |
| CE mark (see declaration of conformity) |
To EU Low Voltage Directive |
| UKCA marking (see declaration of conformity) |
To UK instructions for EMC |
| Degree of protection |
IP65NEMA 4 |
| Nominal size |
9 |
| Exhaust-air function |
With flow control option |
| Sealing principle |
Soft |
| Mounting position |
optional |
| Conforms to standard |
ISO 15407-1VDMA 24563 |
| Manual override |
Non-detenting |
| Type of piloting |
Pilot actuated |
| Pilot air supply |
Internal |
| Flow direction |
Non-reversible |
| Symbol |
00991005 |
| lap |
Overlap |
| Signal status display |
LED |
| Pilot pressure |
310 |
| Flow rate of valve |
1400 |
| Flow rate of valve on individual sub-base |
1100 |
| Flow rate of pneumatically interlinked valve |
1100 |
| Switching time reversal |
18 |
| Duty cycle |
100% |
| Characteristic coil data |
110 V AC: 50/60 Hz, pick-up power 2.9 VA, holding power 2.1 VA |
| Permissible voltage fluctuations |
-15%/+10% |
| Operating medium |
Compressed air to ISO 8573-1:2010 [7:4:4] |
| Note on operating and pilot medium |
Lubricated operation possible (in which case lubricated operation will always be required) |
| Vibration resistance |
Transport application test with severity level 2 to FN 942017-4 and EN 60068-2-6 |
| Shock resistance |
Shock test with severity level 2 to FN 942017-5 and EN 60068-2-27 |
| Corrosion resistance class CRC |
0 - No corrosion stress |
| LABS (PWIS) conformity |
VDMA24364-B1/B2-L |
| Media temperature |
-550 |
| Relative air humidity |
0 - 90% |
| Sound pressure level |
85 |
| Pilot medium |
Compressed air to ISO 8573-1:2010 [7:4:4] |
| Ambient temperature |
-550 |
| Max. tightening torque for valve mounting |
2 |
| Product weight |
305 |
| Electrical connection |
Type CWith protective earth conductorTo DIN EN 175301-803 |
| Type of mounting |
On sub-base |
| Auxiliary pilot air port 12 |
Sub-base size 26 mm to ISO 15407-1 |
| Auxiliary pilot air port 14 |
Sub-base size 26 mm to ISO 15407-1 |
| Pilot exhaust port 82/84 |
DuctedNot ducted as per standard |
| Pneumatic connection, port 1 |
Sub-base size 26 mm to ISO 15407-1 |
| Pneumatic connection, port 2 |
Sub-base size 26 mm to ISO 15407-1 |
| Pneumatic connection, port 3 |
Sub-base size 26 mm to ISO 15407-1 |
| Pneumatic connection, port 4 |
Sub-base size 26 mm to ISO 15407-1 |
| Pneumatic connection, port 5 |
Sub-base size 26 mm to ISO 15407-1 |
| Pilot control interface |
To ISO 15218 |
| Note on materials |
RoHS-compliant |
| Material seals |
HNBRNBR |
| Material housing |
Die-cast aluminium |
| Material screws |
SteelGalvanised |
